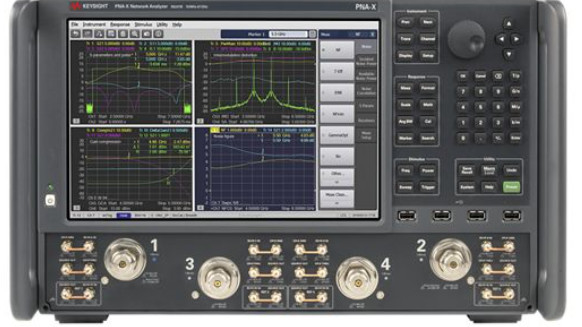

Keysight(Agilent) N5247B PNA-X Microwave Network Analyzer 10 MHz To
67 GHz For Amplifiers / Mixers
Description of Keysight Agilent N5247B PNA-X Microwave Network Analyzer 10 MHz To 67 GHz
The Keysight N5247B PNA-X Microwave Network Analyzer 10 MHz to 67
GHz is an integrated and flexible test engine that can measure
active devices such as amplifiers, mixers, and frequency
converters. The combination of two internal signal sources, a
signal combiner, S-parameter and noise receivers, pulse modulators
and generators, and a flexible set of switches and RF access points
provide a powerful hardware core for a broad range of linear and
nonlinear measurements, all with a single set of connections to
your device-under-test (DUT). When characterizing active devices,
the Keysight N5247B has the perfect balance of speed and
performance to give you an edge.
Features of Keysight Agilent N5247B PNA-X Microwave Network Analyzer 10 MHz To 67 GHz
The PNA-X analyzer is more than just a vector network analyzer,
they are also a full-featured and flexible microwave test engine
when it comes to measuring active devices such as amplifiers,
mixers and inverters. Its hardware includes two internal signal
sources, a signal combinator, S-parameter and noise receivers,
pulse modulators and generators, and a set of switches and RF
access points. These hardware provide a powerful core for making a
variety of linear and nonlinear measurements, all of which can be
performed simply by connecting to the device under test via a set
of connections.
The Keysight N5247B PNA-X Microwave Network Analyzer (10 MHz to 67
GHz) is a flexible, integrated test engine capable of measuring
active devices such as amplifiers, mixers and converters. It
contains two built-in signal sources, a signal circuit breaker,
multiple S-parameter and noise receivers, pulse modulators and
generators, a set of user-friendly switches and RF access points,
which form a powerful hardware core and can fully measure various
linear and nonlinear characteristics of the device. A single
connection between the DUT and the PNA-X is required to complete
all measurements. When characterizing active devices, the Keysight
N5247B offers a great advantage by balancing measurement speed and
performance.
- Simplify your test system by replacing an entire rack of equipment
with one PNA-X network analyzer.
- Reduce test time with the widest range of single-connection
measurement applications.
- Accurately test linear and nonlinear device characterization using
advanced error correction.
- Choose from the industry's widest range of measurement applications
for speed, accuracy, and ease of use in advanced RF test.
- Accelerate insight into component behavior using a multitouch
display and intuitive user interface.
List of Options Keysight Agilent N5247B
| N5247B-201 | 2-port, configurable test set |
| N5247B-219 | 2-port, configurable test set, source attenuators, receiver
attenuators, bias tees |
| N5247B-224 | 2-port, configurable test set, source attenuators, receiver
attenuators, bias tees, second source, combiner, mechanical
switches |
| N5247B-401 | 4-port, configurable test set, second source |
| N5247B-419 | 4-port, configurable test set, second source, source attenuators,
receiver attenuators, bias tees |
| N5247B-423 | 4-port, configurable test set, second source, source attenuators,
receiver attenuators, bias tees, combiner, mechanical switches |
| N5247B-425 | 4-port, configurable test set, second source, attenuators,
combiner, mechanical switches, bias tees, low frequency extension |
N5247B-1A7
| Calibration + Uncertainties + Guardbanding (Not Accredited) |
| N5247B-A6J | ANSI Z540-1-1994 Calibration |
| N5247B-UK6 | Commercial calibration certificate with test data |
| N5247B-020 | Add IF inputs |
| N5247B-021 | Add pulse modulator to internal 1st source |
| N5247B-022 | Add pulse modulator to internal 2nd source |
| N5247B-UNY | Enhanced low phase noise performance |
| N5247B-XSB | Third RF source up to 13.5 GHz |
| N5247B-E29 | Add noise receiver to 70 GHz |
| N5247B-029 | Add noise receiver to 50 GHz |
