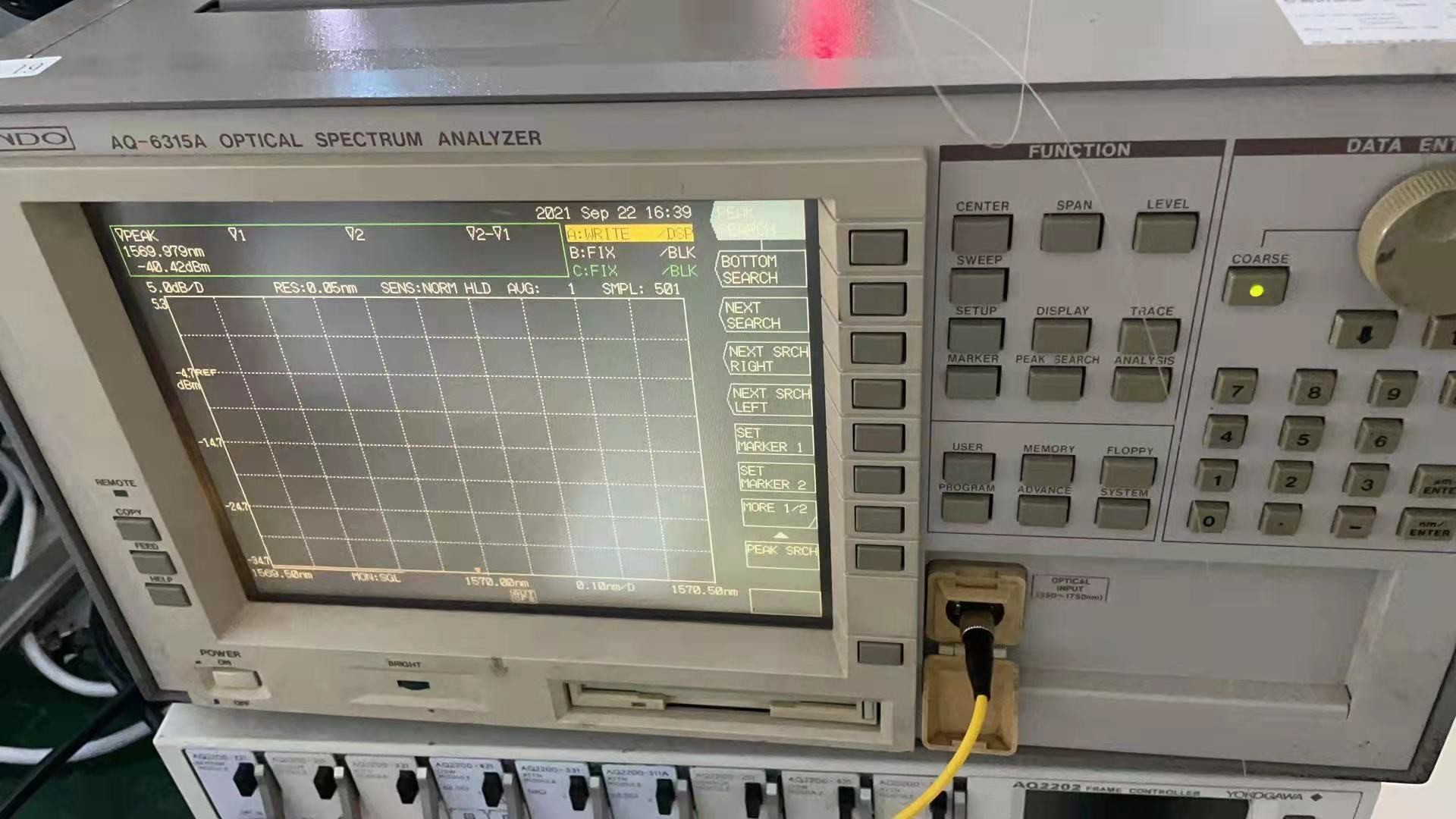

Ando AQ-6315A Optical Spectrum Analyzer
The AQ-6515A/-6315B optical spectrum analyzer brings advanced capabilities to a wide range of applications, from light source evaluation to measurement of loss wavelength characteristics in optical devices. Featuring significant upgrades from the basic performance and functions of the prior AQ-6312A/-6312B models, they incorporate a totally new monochrometer design. In spite of the compact case,
they support single-pass/double-pass monochrometer mode select. In the double-pass monochrometer mode dynamic range is improved far beyond what it has even been before. In the single-pass monochrometer mode it supports the same wide range of applications as the prior models.
The AQ-6315A/-6315B, bringing the full selection of advanced Ando spectrum analyzer technology to
your work.... a new standard for the industry.
Major Features
Diverse analysis functions Analysis functions for WDM and other
optical devices (LD, LED, FBG, etc.). High wavelength accuracy
Provides ±0.05 nm wavelength accuracy in the 1550 nm band, with
±0.02 nm wavelength linearity, makes it especially useful for WDM
devices, such as high-precision loss wavelength characteristic
evaluation.Monochromator select mode The monochromator mode can be
set to single-pass or double-pass to match your measurement
application needs.High sensitivity over a wide band Covers from
350nm to 1750nm and noise level has been suppressed to allow the
AQ-6315A/-6315B to measure light at down to –90BmLow polarization
dependency Polarization dependency has been slashed to ±0.05dB,
enabling accurate measurement of optical amplifier gain and other
critical measurements.High-level accuracy Accurate to within
±0.3dB.High-power measurement: Max.+20dBm (100mW) Even high power
output from an optical amplifier can be measured directly without
an optical attenuator High wavelength resolution Achieves
wavelength resolution of 0.05nm.Optical output is provided (AQ6315B
only) Can be used as an optical band pass filter.Three individual
trace memories Pulsed light can be measured9.4-inch color LCD
Specifications
| Single-pass monochromator mode | Double-pass monochromator mode |
Applicable fiber
| SM to 800μm diameter fiber | SM, GI (50/62.5μm) |
Measurement wavelength range
350 to 1750nm
Wavelength span
0 to 1500nm
Wavelength accuracy
0.5nm (25 ± 5°C, 10/125 SM fiber)
±0.05nm (1510 to 1570nm, 10/125 SM fiber)
Wavelength linearity
±0.02nm (1510 to 1570nm, 10/125 SM fiber)[1]
Wavelength reproducibility
±0.005nm (1 minute)
Wavelength resolution
0.05 to 10nm
Measurement level range [2]
-90 to +20dBm (1000 to 1600nm)
-85 to +20dBm (600 to 1000nm)
-75 to +20dBm (350 to 1750nm) | -85 to +20dBm (1200 to 1600nm)
-80 to 20dBm (600 to 1200nm)
-65 to +20dBm (350 to 1750nm) |
Level accuracy [3]
±0.3dB (at 633/1310/1550nm)
Polarization dependency [4]
| ±0.1dB (at 1310/1550nm) | ±0.05dB (at 1310/1550nm) |
Linearity [5]
±0.05dB (0 to -40dBm), ±0.2dN (0 to –60dBm)
Level scale
0.1 to 10dB/div. And linear
Dynamic range (stray light level) [6]
40dB (± 1nm, 633/1152/1523nm
35dB (± 0.5nm, 633/1152/1523nm) | 70dB (± 1nm, 633/1152/1523nm)
60dB (± 0.5nm, 633/1152/1523nm) |
Sweep time [7]
0.5 s. or less (span 500nm or less), 2.5 s. or less (full span)
Functions
Measurement
Automatic measurement, marker-to-marker sweep measurement,
averaging, pulsed light measurement function. Power meter function
Display
3D display, split (dual) display
Individual 3 trace memories
Max./min. hold, data calculation (addition, subtraction, division),
normalize,Dominant, curve-fit display, power density display
function, dBm/km, % level scale
Data analysis
Peak/bottom searches, specral width search, SMSR search. Marker to
marker power measurement function, optical amplifier NF measurement
function, color analysis function, WDM analysis function, notch
width measurement function
Other
Program function (200 steps×20 programs), wavelength calibration
function, calendar/date function, help function, user key define
function, label function
Optical output [8]
Resolution setting range: 0.05 to 10nm
Insertion loss: 20dB or less (1310/1550nm)
Optical fiber: GI 50/125μm | |
Memory
FDD-Traces, analysis data and programs on 3.5-inch FD (1.2/1.44
Mbyte)
Internal memory-Traces and measurement conditions (32 traces), 20
programs
Data Output
Printer-High-speed built-in printer
Plotter-Direct output to XY plotter
Interfaces
GP-IB-2 ports
OtherSweep trigger input (TTL), sample trigger input (TTL), sample
trigger output (TTL)Sample enable input (TTL), 270Hz output (TTL),
analog output (0-5V),Video output (VGA compatable
Display
9.4-inch color LCD, resolution 640×480 dots
Optical input connector
FC (standard) SC, D4, W/E, ST, DIN, etc
Power requirements
AC100V to 120V, 200V to 240V, 48 to 83Hz, approx. 200VA
Environment
Operating temperatures: 5°C to 40°C
Storage temperatures: -10°C to 50°C
Humidity: 80% or less (no condensation) | |
Dimensions and mass
Approx. 425 (W) ×222 (H) × 450 (W) mm, approx. 30kg
Notes
Note that device adapters, quartz cells for liquid measurement,
parallel beam mounts, and white light sources are optional. Please
consult with your vendor separately.
*These specifications are for products delivered later than October
1997
NOTE:
[1] After power-on and more than two hours of warm-up, within 24
hours from wavelength calibration with 1523nm HE-NE laser.
[2] At 25 ± 5°C. Resolution 0.5nm or more.
[3] 10/125 SM fiber, 25 ± 5°C, input level -30dBm or more
[4] 10/125 SM fiber, 25 ± 5°C, resolution 0.5nm or more
[5] 25 ± 5°C, sensitivity HIGH 3.
[6] 10/125 SM fiber, 25 ± 5°C, resolution 0.05nm, excluding
high-order and low0order harmonics
[7] Single-trace display, sampling points: 501, sensitivity NORMAL
HOLD. Average time: 1, no changes of diffraction order within sweep
range except the full span
[8] AQ6315B only
Specifications are subject to change without notice | |
