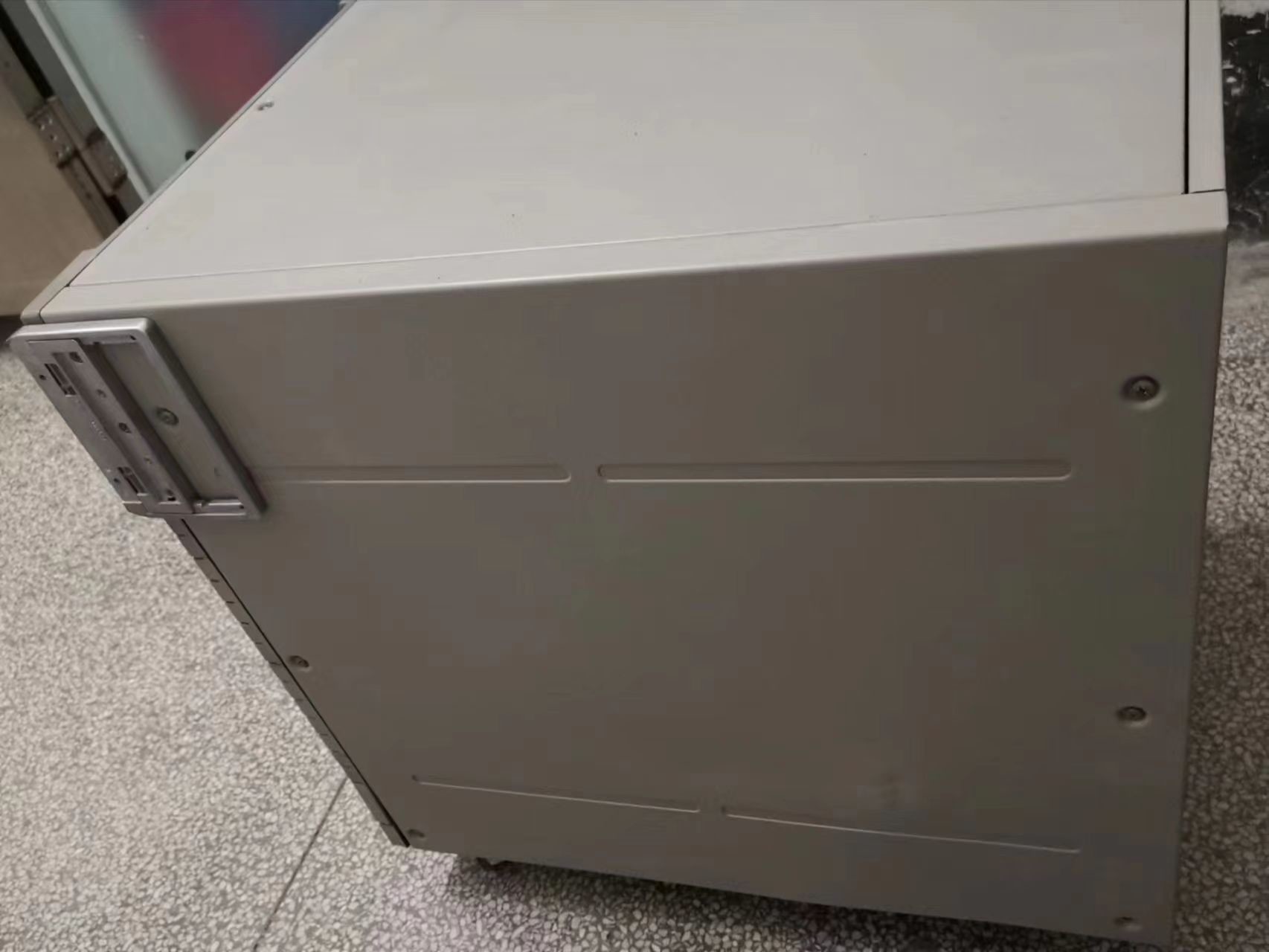

PCR4000W Kikusui AC Source
Additional Features:
Output Voltage Range: 1-150V, 2-300V
Max Current: 40A/20A
Single phase; 4 kVA
Frequency Range: 1 Hz-500 Hz
Output Power: 4000 Watts
Output voltage/current real effective value, peak value, DC mean
value, and electric power are displayed on the panel
Achieves less than 0.5% voltage waveform distortion
60μs of voltage response speed
Applicable to GPIB or RS-232C control
Details:
With a primary development concept of improved efficiency and low
cost, the PCR4000W, regulated AC power supply, features a balance
of performance, function, quality, and cost based on the technology
and know-how established with the PCR-L Series of products.
Specifically, PWM inverter system was used for the power unit,
providing the power supply with improved efficiency (by
approximately 75 %), low-input current demand, and a considerably
downsized and lightweight package design.
The PCR-W/W2-Series power supply features a wide input range and
high-quality, powerful output (as well as a reduction in
low-waveform distortion, and the provision of high response speed
and low power-factor load) for worldwide application, and is
equipped not only with measurement and output capabilities for AC
parameters such as RMS value, peak value, power, and power factor,
but also with DC output and AC+DC output modes. With these
features, the capabilities of the PCR-W/W2-Series power supply go
beyond ordinary AC power supply, providing greater convenience.
Compact design
Small and easy to carry – 429W x 262H x 520D, weighs only 32 kg
Versatile output modes: AC, DC, AC+DC *1
Output frequency range is up to 500 Hz (setting resolution 0.1Hz)
High-quality output waveform Output voltage varies between 1 V and
135 V or 2 V and 270 V (two ranges)
Maximum output current is 40 A (135 V range) or 20 A (270 V range)
Copes with high inrush loads
Output waveform distortion 0.5 % or less
Memory feature
You can store and recall three combinations of settings for voltage
and frequency
The memory feature allows recording of changes in output *2
Measurement features
You can measure the voltage, current and power of AC and DC output,
apparent power, reactive power, power factor, crest factor and
current peak hold *3
Analogue interface
By incorporating an optional interface (EX04-PCR-M), output can be
controlled using external analogue signals
Input DC signals can be used to change output AC voltage and
modulate output using input waveform
Control using a PC
You can control the PCR-M Series through the standard RS-232C
interface, optional GPIB interface, or optional USB interface *4
By using the control software (Easy Controller for PCR-M Series)
that comes with the PCR-M Series, you can easily set the parameters
of the PCR-M Series and log the output measured values
*1 : You can access AC+DC mode if you have installed an optional
interface board: IB21, US21 or EX04-PCR-M – the communications
interface is used to set that mode
*2 : An installed appropriate optional interface board allows up to
ten combinations of settings to be stored in memory The
communications interface is also used to set or call extended
memory addresses (4 to 10)
*3 : Use the communications interface to measure apparent power
(VA), reactive power (VAR), power factor (PF), crest factor (CF),
and held current peak
*4 : Instrument drivers for Microsoft Visual Basic, Microsoft
Office VBA, Microsoft Visual C++ LabVIEW, or LabWindows/CVI are
also included on the disc
Specifications:
Manufacturer Kikusui
Condition Used
Amps 20 A
Frequency 500 Hz
Phase 1
Power (VA) 4 KVA
Volts 300 V
