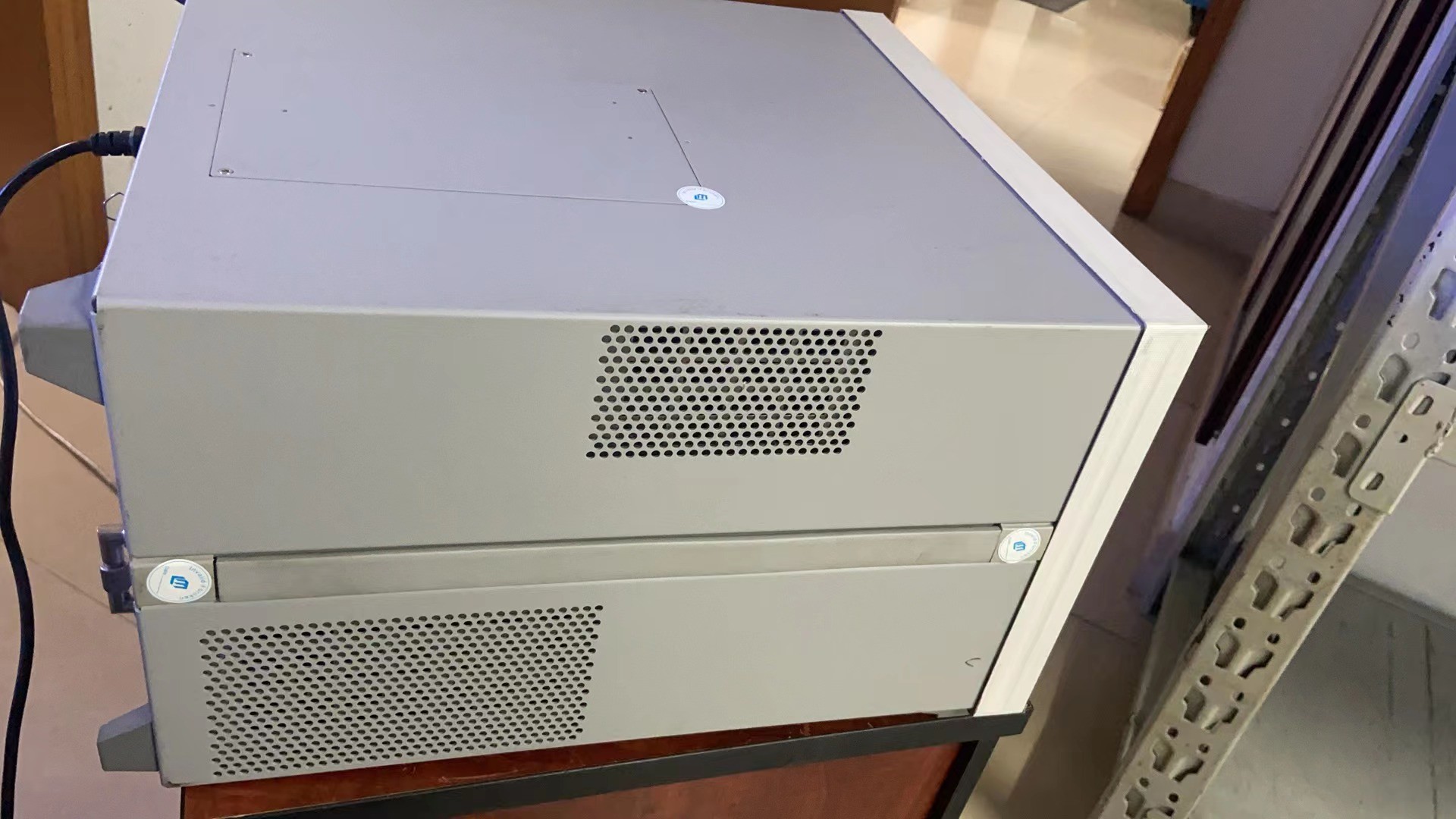

Agilent Keysight E5052A Signal Source Analyzer 10 MHz to 7 26.5 or
110 GHz Signal Analyzer
Features:
- 10 MHz to 110 GHz frequency range (View frequency selection)
- Versatile measurement functions in a single instrument
- Phase noise measurement
- Transient measurement (frequency/phase/power over time)
- Frequency, power, and DC current measurement (VCO characterization)
- Spectrum monitoring
- View SSA options and accessories
Phase Noise Measurement Table 1-1. Phase noise measurement
Description Specifications Frequency range 10 MHz to 7 GHz
Frequency bands 10 M to 41 MHz 39 M to 101 MHz 99 M to 1.5 GHz 300
M to 7 GHz Offset frequency range Carrier > 400 MHz 1 Hz to 40
MHz (standard) 10 Hz to 40 MHz (Option E5052A-011) 39 MHz ≤ Carrier
≤ 99 MHz 1 Hz to 20 MHz (standard) 10 Hz to 20 MHz (Option
E5052A-011) 10 MHz ≤ Carrier ≤ 39 MHz 1 Hz to 5 MHz (standard) 10
Hz to 5 MHz (Option E5052A-011) Enhanced phase noise sensitivity1
Cross-correlation method (standard) Number of correlation: 1 to
10,000 Frequency tracking range 0.4% of carrier frequency IF gain
0, 10, 20, 30, 40, 50 dB (standard) 0, 10, 20 dB (E5053A-011) Input
level 10 to 30 MHz –15 to +20 dBm 30 MHz to 7 GHz –20 to +20 dBm
Built-in LO phase noise optimization < 150 kHz (optimized for
close-in phase noise) > 150 kHz (optimized for far-out phase
noise) See Figure 1-2 Accuracy 1 to 100 Hz offset < ± 4 dB
(typical) 100 to 1 kHz offset < ± 4 dB (typical) 1 k to 1 MHz
offset < ± 2 dB (typical) 1 M to 40 MHz offset < ± 3 dB
(typical) SSB phase noise sensitivity See Table 1-2 through Table
1-4, Figure 1-1 through Figure 1-3 Spurious level 65 dBc (typical)
> 1 kHz offset Measurement time See Table 1-5
List of Options
| 011 | Delete Functions |
| 1A7 | ISO 17025 Compliant Calibration |
| 1CM | Rackmount Kit |
| 1CN | Handle Kit |
| 1CP | Rackmount and Handle Kit |
| 810 | Add keyboard |
| 820 | Add mouse |
| ABA | U.S. Quick Users Guide (English localization) |
| ABJ | Japan Quick Users Guide (Japanese localization) |
| E5001A-1FP | PRECISION CLOCK JITTER ANALYSIS |
| H01 | SSA-BBM Enhanced measurement capability |
| R-51B-001-3C | 1 year Return-to-Agilent warranty extended to 3 years |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
| SSA-J | precision clock jitter analysis software |
