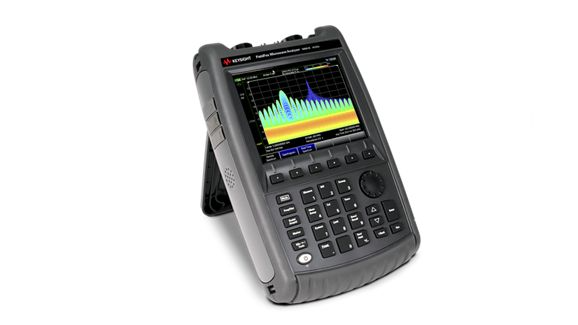

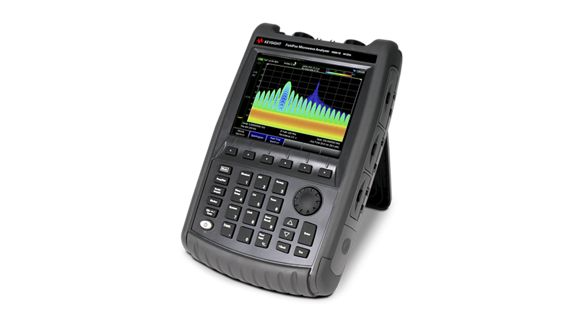

N9951B FieldFox Handheld Microwave Analyzer 44 GHz
Description of N9951B FieldFox Handheld Microwave Analyzer
A lightweight, durable, software-enabled cable and antenna
analyzer, spectrum analyzer, network analyzer, and more
Keysight's FieldFox portable analyzers are equipped to handle your
toughest working environments during routine maintenance, in-depth
troubleshooting, and anything in between. Choose the
software-enabled FieldFox configuration that best meets your needs.
Features of N9951B FieldFox Handheld Microwave Analyzer
- Base model includes a cable andantennatester (CAT)
- Make accurate spectrum analyzer measurements (± 0.2 dB) without
warmup.
- Perform over-the-air measurements for 5G NR and LTE.
- Use GPS/GNSS for geolocation and timestamping.
- Carry one lightweight unit at 3.4 kg (7.4 lb).
- d software-defined measurement functions according to your needs.
- Capture elusive signals with 120 MHz gap-free, real-time bandwidth.
- Measure all four S-parameters simultaneously with 105 dB dynamic
range.
Key Specifications of N9951B FieldFox Handheld Microwave Analyzer
Cable and Antenna Analysis
Field Strength Measurement
SCPI Code Compatibility
Spectrogram
Stimulus Response
89600 VSA Software
Over-The-Air LTE FDD and 5GTF
5G NR
Bandwidth Options:10 MHz/40 MHz/120 MHz
Cable and Antenna Analyzer:Yes - Standard
Form Factor:Handheld
Instrument Type:Combination Analyzer
Maximum Frequency:44 GHz
Measurement Functions:Network analysis/Signal analysis/Cable and
antenna tester/Real-time spectrum analysis
Number of Built-In Ports:2
Overall Amplitude Accuracy:+/- 0.2 dB
Phase Noise @1 GHz (1 MHz offset):125 dBc/Hz
Phase Noise @1 GHz (30 kHz offset):-114 dBc/Hz
SA Start Frequency:5 kHz
Spur Free Dynamic Range:> 104 dB
Standard Attenuator Step:5 dB
System Dynamic Range:> 105 dB
Trace Noise:0.001 dB
Vector Network Analyzer:Yes - Optional
Additional SA Based Features:Real-Time Spectrum Analysis
Noise Figure Measurements
Over-The-Air Measurements
Built-In Power Meter
Extended Range Transmission Analysis (ERTA)
Bandwidth:120 MHz
Best Speed at 1001 Point, 1 Sweep:196 μs/pt
DANL @1 GHz:-163 dBm
Frequency Range:DC to 44 GHz
Maximum Analysis Bandwidth:120 MHz
Maximum Real-Time Bandwidth:120 MHz
Minimum Frequency:300 kHz
Output Power:Up to 7 dBm
Overall Amplitude Accuracy:+/- 0.2 dB
Phase Noise @1 GHz (10 kHz offset):-114 dBc/Hz
Power Measurement Using USB Sensor:Frequency-Offset CW or Swept-Frequency RF Pulse Test with Peak Sensor
Spectrum Analyzer:Yes - Optional
Standard Attenuator Range:40 dB
Standard Attenuator Step:5dB
TOI @1 GHz (3rd Order Intercept):+ 5.1 dBm
Type:Vector Network Analyzer
Cable & Antenna Analyzer
Spectrum Analyzer
5 dB5 dB+/- 0.2 dB300 kHz120 MHzDC to 44 GHzDC to 44 GHzDC to 44 GHz-125 dBc/HzCombination AnalyzerCombination AnalyzerCombination AnalyzerCombination AnalyzerCombination AnalyzerHandheld
List of Options of N9951B FieldFox Handheld Microwave Analyzer
N9951B-010 | Vector network analyzer time domain |
N9951B-030 | Remote control capability |
N9951B-208 | USB power sensor measurements versus frequency |
N9951B-209 | Extended range transmission analysis (ERTA) |
N9951B-210 | Vector network analyzer transmission/reflection |
N9951B-211 | Vector network analyzer full 2-port S-parameters |
N9951B-212 | 1-port mixed-mode S-parameters |
N9951B-215 | TDR cable measurements
|
N9951B-233 | Spectrum analyzer |
N9951B-235 | Pre-amplifier |
N9951B-236 | Interference analyzer and spectrogram |
N9951B-238 | Spectrum analyzer time gating |
N9951B-302 | USB power sensor support |
N9951B-307 | GPS receiver |
N9951B-308 | Vector voltmeter |
N9951B-309 | DC bias variable-voltage source |
N9951B-310 | Built-in power meter |
N9951B-312 | Channel scanner |
N9951B-330 | Pulse measurements |
N9951B-350 | Real-time spectrum analyzer (RTSA) |
N9951B-351 | I/Q analyzer |
N9951B-352 | Indoor and outdoor mapping |
N9951B-353 | IQ streaming |
N9951B-355 | Analog demodulation |
N9951B-356 | Noise figure measurements |
N9951B-358 | EMF measurements |
N9951B-361 | EMI measurements |
N9951B-370 | Over the air LTE FDD measurements |
N9951B-377 | Over the air 5G TF measurements |
N9951B-378 | Over-the-air (OTA) 5G NR measurements |
N9951B-371 | Over-the-air (OTA) 5G NR measurements |
