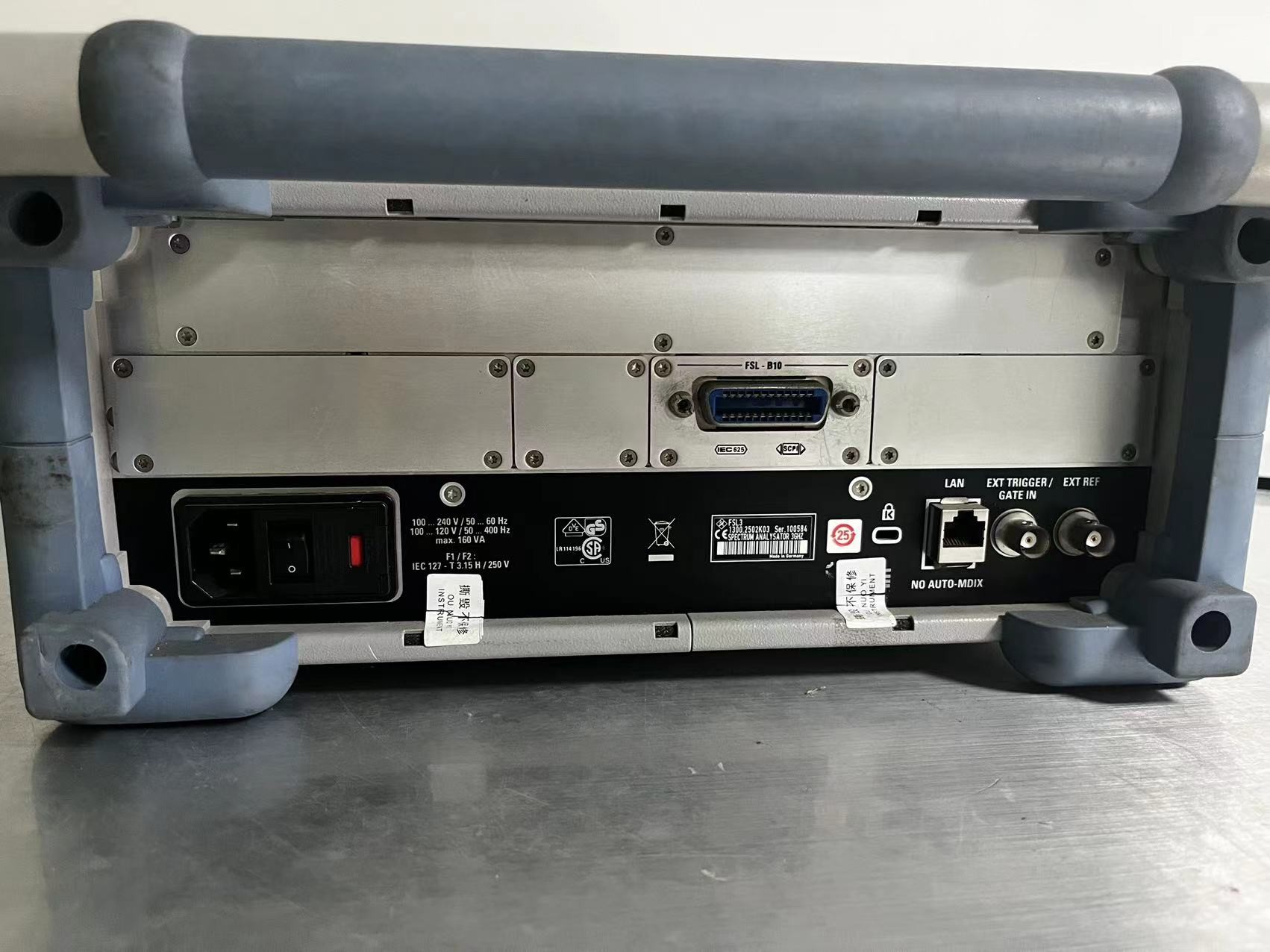

Rohde And Schwarz FSL3 Compact Spectrum Analyzer Lightweight 9kHz-3 GHz

Rohde And Schwarz FSL3 Lightweight and compact Spectrum Analyzer 9kHz-3 GHz

Description

The spectrum analyzer R&S FSL leads its class with respect to its large number of standard functions. The R&S®FSL is an extremely lightweight and compact spectrum analyzer. Its low weight and optional battery/DC power make it the ideal instrument for the lab and in the field. The R&S®FSL features many measurement options for analyzing signals in line with common standards. With an optional tracking generator, scalar network analysis up to 18 GHz is possible.

Tracking generator for directional power measurements with Model .13
Full choice of detectors: max, min, auto-peak, sample, RMS, average, quasi-peak
CP/ACP/fast ACP measurement functions with a host of predefined standards (see ACP screenshot)
Time domain power measurement
Measurement of carrier-to-noise ratio C/N or C/N0 referenced to 1 Hz or channel bandwidth
CCDF: measurement of crest factor and amplitude probability function
Automatic test routines for: - Occupied bandwidth (OBW) - Third order intercept point (TOI) - AM modulation depth
Adjustable number of trace points, max. 32001
Editable limit lines including PASS/FAIL indication
Level units: - dBm, dB?V, dBmV, dB?A, dBpW, V, W, A
Frequency counter featuring resolution of 1 Hz with measurement time of 50 ms
Phase noise and noise marker with dBm/Hz and dBc/Hz results
n-dB down functionality for fast determination of bandwidth
Channel filters, shape factor <2
EMI filters: 200 Hz (optional), 9kHz, 120 kHz
FFT filters from 300 Hz to 30 kHz, optional 1Hz to 30 kHz
WLAN option for TX measurements on 802.11a, b, g, j signals
Firmware option for measurements on Bluetooth transmitters, including EDR
USB interface
Tracking generator (Freq. 1 MHz to 6 GHz; output -20 dBm to 0 dBm)

Key specifications

Frequency 9 kHz to 3/6/18 GHz

DANL at 1 GHz typ. –160 dBm (preamp ON)

Spurious response < –60 dBc

Analysis bandwidth 28 MHz

Phase noise at 1 GHz (100 kHz offset) typ. –105 dBc (1 Hz)

Total level accuracy < 0.8 dB TOI at 1 GHz typ. +18 dBm (R&S®FSL3/FSL6) typ. +13 dBm (R&S®FSL18) Weight < 8 kg

List of Options

B10	GPIB interface
B22	RF preamplifier, gain 20 dB (software license)
B30	DC power supply 12 - 28 V
B31	NiMH battery pack
B4	OCXO reference frequency
B5	Additional interfaces video/IF-output, power meter 28 V - DC for noise source
B6	TV trigger (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) (software license)
B7	Narrow resolution filters, 10 Hz - 300 Hz (software license)
B8	Gated sweep function (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) (software license)
C3	Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
C5	Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
DCV-1	Documentation of calibration values
DCV-ZP	Printout of DCV (additional, in combination with DCV-Option only)
DKD	FSL3 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device)
K14	Spectrogram measurement, application firmware (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
K20	Application firmware for cable TV and TV measurements (software license)
K30	Application firmware for noise figure and gain measurements (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
K400	RFEX-Launcher for FSL Required for installation and operation of EMF software RFEX on FSL
K7	Analogue demodulation AM/FM/PM (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) (software license)
K72	3GPP Code Domain Power measurements for base station (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
K8	Application firmware for TX measurements acc. to Bluetooth v. 1.1 and 2.0 (EDR) (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
K82	CDMA2000® base station analysis (software license)
K84	Analysis of 1xEV-DO base station signals (software license)
K9	Power sensor measurements with NRP (software license)
K91	Application firmware for WLAN 802.11A,B,G measurements (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
K91N	Upgrade of FSL-K91 to 802.11n (software license)
K92	Application firmware for WiMAX# 802.16, OFDM measurements (software license)
K92U	Upgrade from R&S®FSL-K92 to R&S®FSL-K93 (software license)
K93	Application Firmware for WIMAX# 802.16 OFDM/OFDMA Measurements (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
R3	Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12
R3	Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12
R5	Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12
R5	Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12
Z3	Soft carrying bag
Z4	Additional charger unit for FSL-B31. Allows charging the battery without FSL
ZZA-S334	Adapter for BW2000 3HU 3/4 cabinet with impact protection

Your benefits

One instrument for multiple tasks

Can take it with you everywhere

Signal analysis functions

Features

► Spectrum analysis

► Power meter

► Analog and digital signal analysis Scalar network analysis

► Carrying handle and low weight

► Optional battery pack

► Optional 12/24 V DC power supply

► Many measurement options for analyzing signals in line with IEEE (WLAN, WiMAX™ and Bluetooth®) and 3GPP standards 1)
