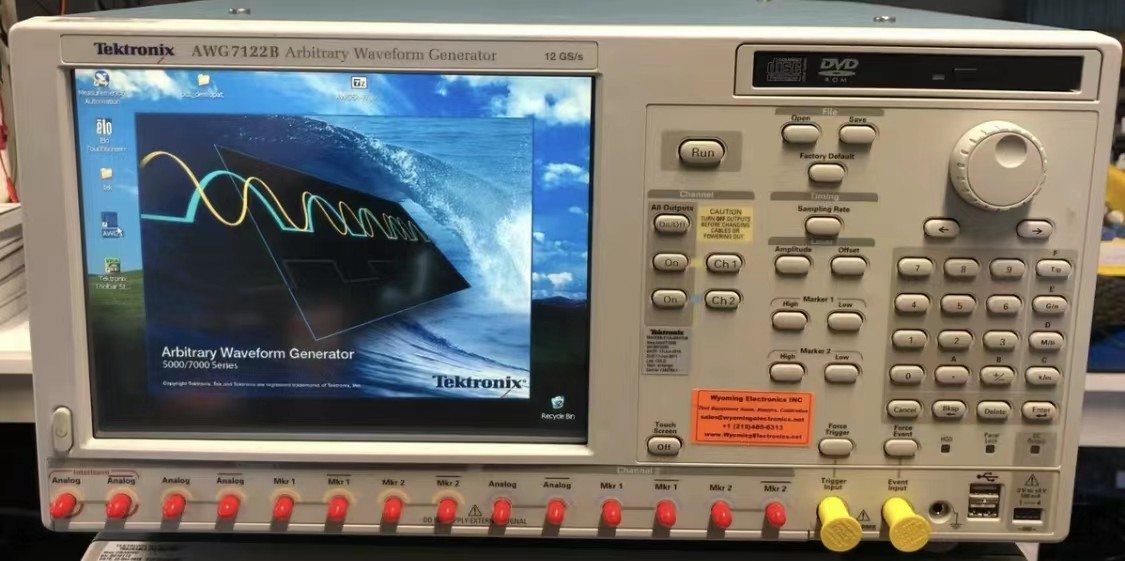

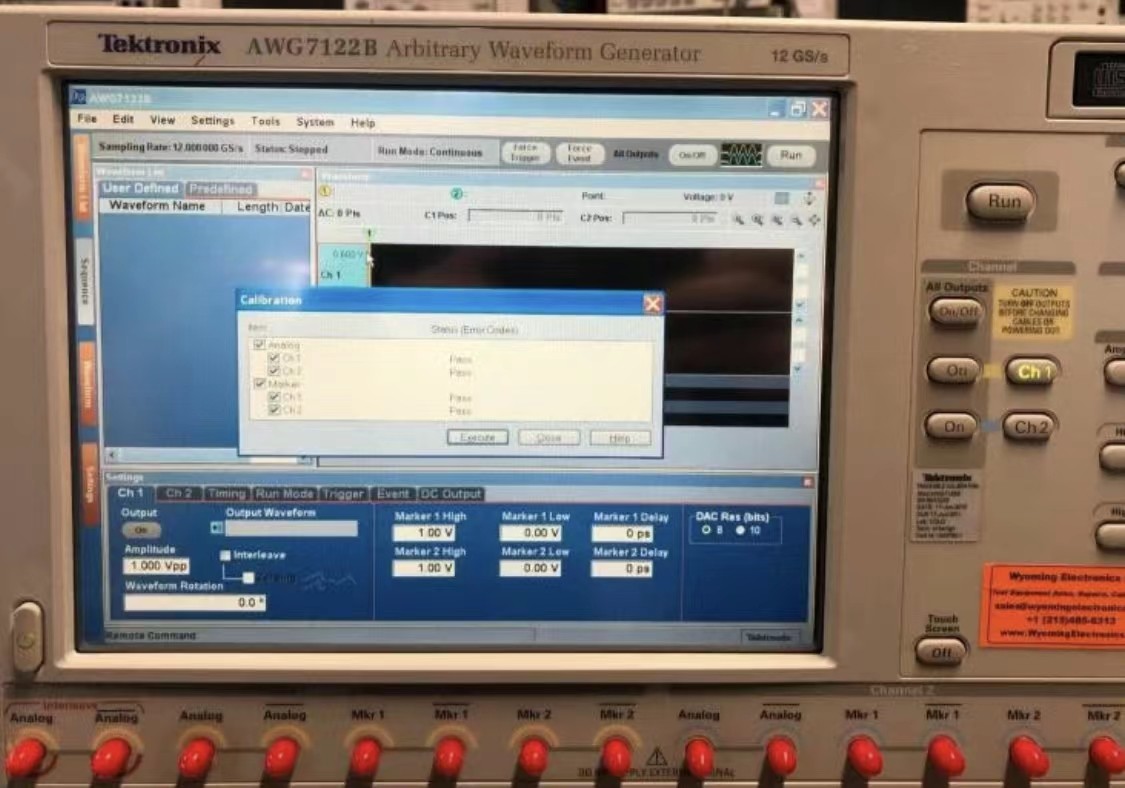

The Tektronix AWG7122B arbitrary waveform generator delivers a unique combination of superior signal stimulus, unrivaled sample rate, bandwidth, and uncompromised usability. This offers the industry's best solution to the challenging signal stimulus issues faced by designers verifying, characterizing, and debugging sophisticated electronic designs. The direct synthesis signal generation enables a variety of signal outputs including multilevel, pre/de-emphasis, jitter (Rj, Pj, ISI, DCD), SSC, and wander elements.

The Tektronix AWG7122B Arbitrary Waveform Generator represents a cutting edge benchmark in performance, sample rate, signal fidelity, and timing resolution. The ability to create, generate, or replicate either ideal, distorted, or “real-life” signals is essential in the design and testing process. The AWG7122B AWG, with up to 24 GS/s (optional) or 12 GS/s (standard) and 10-bit vertical resolution, delivers the industry's best signal stimulus solution for ever-increasing measurement challenges. This allows for easy generation of very complex signals, including complete control over signal characteristics.

Specifications and features of the Tektronix AWG7122B Arbitrary Waveform Generator include:

• Wideband RF/MW Modulation Bandwidth
• Generates Complex Wideband Signals across a Frequency Range of Up to 9.6 GHz
• Generates Modulation Bandwidths of Up to 3.5 GHz (1 dB)
• Waveform Sequencing and Subsequencing
• Enables Creation of Infinite Waveform Loops, Jumps, and Conditional Branches
• Enhance the Ability to Replicate Real-world Signal Behavior
• Dynamic Jump Capability
• Enables the Creation of Complex Waveforms that Respond to Changing External Environments
• Vertical Resolution up to 10 bit Available
• Generate Signals up to 1 GHz Wide with 54 dBc SFDR
• Deep Memory
• Enables the Creation of Long Complex Waveform Sequences

• 12 GS/s (24 GS/s) and 6 GS/s Models
• 9.6 GHz Effective RF Frequency Output
• 1 or 2 Arbitrary Waveform Outputs
• Accurate Timing with only 20 psp-p Total Jitter (at 10-12 BER, Typical)
• 35 ps Tr/Tf (20% to 80%)
• ±100 ps Range (1 ps Resolution) Interchannel Skew Control
• 2 or 4 Variable-level Marker Outputs
• Accurate Timing with only 30 psp-p Total Jitter (at 10-12 BER, Typical)
• 45 ps Tr/Tf (20% to 80%)
• Up to 300 ps Range (1 ps Resolution) Delay Control
• Vertical Resolution up to 10 bit Available: 10 bit (No Marker Output) or 8 bit (with Two Marker Outputs)
• Up to 64M (64,800,000) Point Record Length provides Longer Data Streams
• Down to 100 fs Resolution Edge Timing Shift Control
• 16,000 Step Sequencing Creates Infinite Waveform Loops, Jumps, and Conditional Branches
• Real-time Sequencing Creates Infinite Waveform Loops, Jumps, and
• Conditional Branches
• Intuitive User Interface Shortens Test Time
• Integrated PC Supports Network Integration and provides a Built-in DVD, Removable Hard Drive, LAN, and USB Ports

Applications:

• High-speed Serial Communications
• Up to 12 Gb/s Data Rate as a Binary Data Source (2x Oversampling, Interleaved)
• Up to 8 Gb/s Data Rate as a Universal Direct Synthesis Source (3x Oversampling, Interleaved)
• 64M Point (Standard) and 128M Point (Optional) Memory Record Length Enables Generation of Longer Waveforms
• Provides any Profile Multilevel Signals to allow Timing (Jitter) Margin Testing without External Power Combiners
• Wideband RF for Communications and Defense Electronics
• Wideband Modulated Arbitrary Direct RF Output up to 9.6 GHz
• Ultra Wideband (UWB) IQ/IF Signal Generation with 2-channel, 12 GS/s, and 10 bit Resolution
• Direct RF Generation of all WiMedia Band Groups (BG1 to BG6)
• Disk Drive (Magnetic/Optical) Read/Write:
• Up to 6 Gb/s Data Rate (2 points/cell) or 42 ps Timing Resolution
• Mixed-signal Design and Test:
• 2-channel Analog plus 4-channel Marker Outputs
• High-speed, Low-jitter Data/Pulse and Clock Source
• Real-world, Ideal, or Distorted Signal Generation - Including all the Glitches, Anomalies, and Impairments
• Playback of Oscilloscope Captured Signals, Including Enhancements such as Adding Predistortion Effects
• Waveform Vectors Imported from Third-party Tools such as MathCAD, MATLAB, Excel, and Others
