The Model DMM7510 combines all the advantages of a precision
digital multimeter, a graphical touchscreen display, and a high
speed, high resolution digitizer to create an industry first: a
graphical sampling multimeter. The digitizer gives the Model
DMM7510 unprecedented signal analysis flexibility; the five-inch
capacitive touchscreen display makes it easy to observe, interact
with, and explore measurements with “pinch and zoom” simplicity.
This combination of high performance and high ease of use offers
unparalleled insight into your test results
Product Features of Keithley DDM7510:
- 14 PPM basic one-year DCV accuracy
- Precision multimeter with 3½-to 7½-digit resolution
- Capture and display waveforms or transients with 1MS/sec digitizer
- 100mV, 1Ω, and 10μA ranges offer the sensitivity needed for
measuring low level signals
- Make accurate low resistance measurements with offset compensated
ohms, four-wire, and dry circuit functions
- Display more with five-inch, high resolution touchscreen interface
- Auto-calibration feature improves accuracy and stability by
minimizing temperature and time drift
- Two-year specifications allow for longer calibration cycles
- Readings and screen images can be saved quickly via the front panel
USB memory port
- Multiple connectivity options: GPIB, USB, and LXI-compliant LAN
interfaces
- Large internal memory buffer; store over 11 million readings in
standard mode or 27.5 million in compact mode
Make Demanding Measurements with Confidence
The Model DMM7510’s design makes the most of Keithley’s low level
measurement expertise. Features like the low noise input stage and
the 32-bit A-to-D converter allow this instrument to deliver DC
accuracies typically only found in metrology-grade
instrumentation—but at about half the price of those solutions. The
Model DMM7510’s 100mV, 10Ω, and 10µA ranges deliver the sensitivity
needed to measure low signals with confidence when characterizing
today’s demanding electronic designs. In addition to one- and
two-year accuracy specifications, an auto-calibration function
ensures greater accuracy between calibration cycles.
15 Measurement Functions
The DMM7510 provides 15 basic measurement functions. In addition to
the digitizing voltage and current functions, it includes

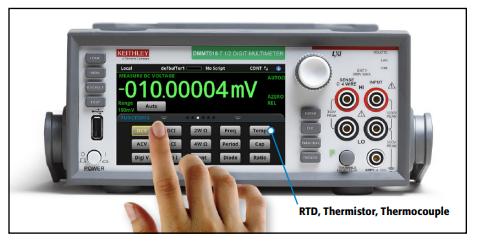

capacitance, ACV and ACI, temperature (RTD, thermistor, and
thermocouple), 2- and 4-wire resistance, dry circuit ohms, period,
frequency, diode test, and DC voltage ratio. The instrument’s flat
menu structure allows for fast configuration and improves
usability. Its intuitive design lets you learn how to operate the
instrument and begin making device measurements faster and with
greater confidence
Designed for Higher Testing Productivity

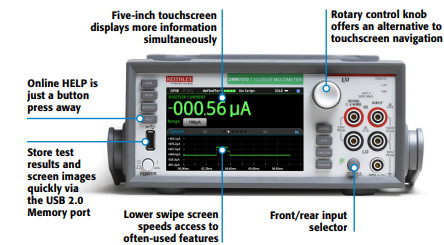

In addition to its advanced touchscreen, the Model DMM7510’s front
panel offers a variety of features that enhance its speed,
user-friendliness, and learnability, including a USB 2.0 memory I/O
port, a HELP key, a rotary navigation/control knob, and front/rear
input selector button. All front-panel buttons are backlit to
enhance visibility.
Instrument connections
In this example, the output signals that represent the grading
results are sent from the DMM7510. The signals are sent to the
component handler, which bins the devices. The figure below shows
the rear-panel connections from the DMM7510 to the test fixture and
the digital lines to the component handler. In addition, there is
GPIB communication between the controller and the component
handler.
