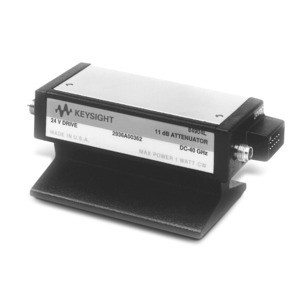

Keysight 84904L Programmable Step Attenuator DC To 40 GHz Compact Rugged Design

Ask Lasest Price
Brand Name :	Keysight (Agilent)
Model Number :	84904L
Certification :	ce
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	in stock

Add to Cart

Product Details
Company Profile

Keysight 84904L Programmable Step Attenuator DC To 40 GHz Compact Rugged Design

Keysight (Agilent) 84904L Programmable Step Attenuator, DC to 40 GHz, 0 to 11 dB, 1 dB steps

Description of Keysight (Agilent) 84904L:

The Agilent 84904L programmable step attenuator offers coaxial measurements to 40 GHz in a compact, rugged design. It offers repeatability of better than 0.03 dB, excellent life (greater than 5 million switching cycles per section) and an attenuation range of 0 to 11 dB in 1-dB steps. This latest design evolution sets new standards for size and performance. High attenuation accuracy and low SWR are achieved through the use of miniature thin-film attenuation cards composed of high-stability tantalum nitride film of saphire substrate. Insertion loss is outstanding, with with only 2.4 dB of loss at 40 GHz. The compact size of the unit, 35% smaller than the Agilent 8495/7 (26.5 GHz) family, allows for easy integration into instruments and ATE systems.

Superior RF Performance of Keysight (Agilent) 84904L:

Frequency range: dc to 40 GHz
Insertion loss at 0 dB: 0.8 dB + 0.04 dB/GHz
Maximum SWR: 1.3 to 12.4 GHz, 1.7 to 34 GHz, 1.8 to 40 GHz

Repeatability and Life Span of Keysight (Agilent) 84904L:

Repeatability life: 0.03 dB max 5 million cycles per section, typical
5 million cycles per section

Power Handling of Keysight (Agilent) 84904L:

Maximum RF input power: 1 W (average), 50 W (peak)

Features of Keysight (Agilent) 84904L:

Connector type: 2.4 mm female, optional 2.4 mm/2.92 mm male/female
Programming connector: 10-pin sockets

List of Options for Keysight (Agilent) 84904L:

006	2.92mm SMA Compatible Connectors
011	5 Vdc supply voltage (nominal)
015	15 Vdc supply voltage (nominal)
024	24VDC Solenoid
100	2.4mm Conn (m), 2.4mm (f) Conn
101	2.4mm (F) connectors.
106	2.92mm Conn (m), 2.92mm (f) Conn
890	Calibration Data
R-50C-011-3	Agilent Calibration - 3 years
R-50C-011-5	Agilent Calibration - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
UK6	Commercial cal. certificate w/ test data
UKS	Certificate of Calibration

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
