Keysight (Agilent) 83640B Synthesized Swept-Signal Generator, 0.01
- 40 GHz

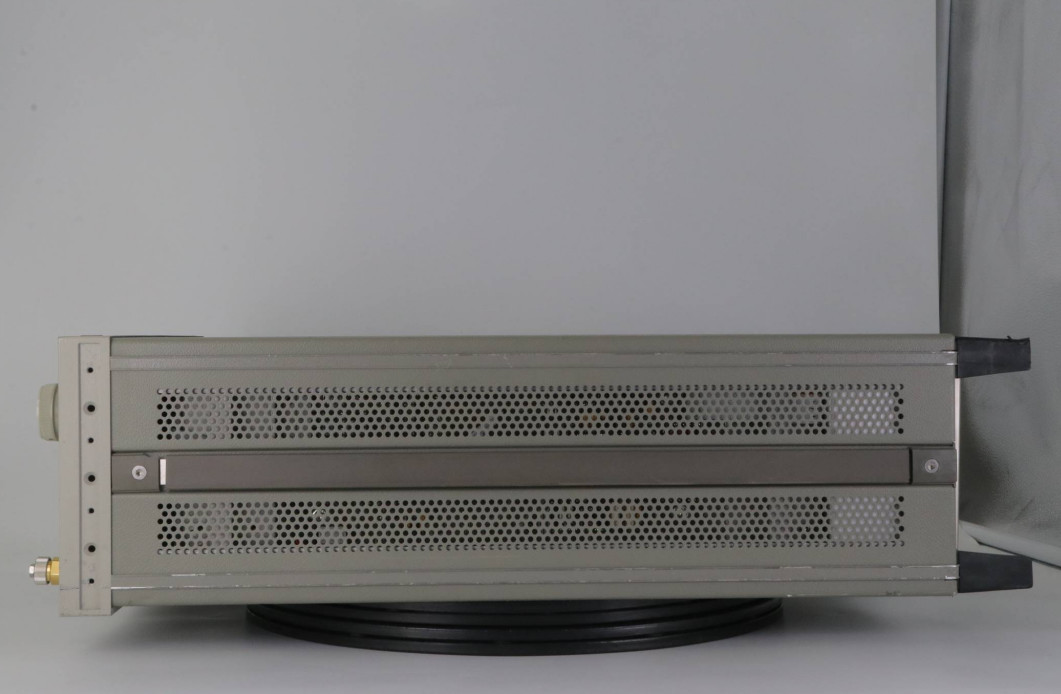

Description of Keysight Agilent 83640B
The Agilent 83640B synthesized sweeper is the standard of
excellence for applications requiring the high performance and
accuracy of a synthesized source and the speed and versatility of a
sweep oscillator. Synthesized broadband frequency coverage and
precise 1 Hz frequency resolution (Opt 008) are generated by
indirect synthesis, enabling the Agilent 83640B to achieve low
single-sideband phase noise performance. 83640B also delivers
excellent harmonic performance with harmonics at least 50 dB below
the carrier from 2.0 to 26.5 GHz, and at least 40 dB below the
carrier above 26.5 GHz.
Feature of Keysight Agilent 83640B
- +10 dBm calibrated output power
- -50 dBc harmonics <26.5 GHz typical
- SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset
- Complete analog sweeper
- 1 Hz frequency resolution (Option 008)
- Pulse, amplitude and frequency modulation (8360B Series only)
- -110 dBm output power with step attenuator (Option 001)
List of Options for 83640B
| 001 | Adds Step Attenuator |
| 002 | Internal Modulation Generator |
| 003 | Delete Front Panel display and keypad |
| 004 | Rear panel RF output connector |
| 006 | Fast Pulse Modulation |
| 008 | 1 Hz Frequency Resolution |
| 0B0 | Do not include manuals |
| 0B1 | Add Manual Set |
| 0Q8 | Factory Delivered Service Training |
| 1BN | Military Standard 45662A Calibration Certification |
| 1BP | ANSI Z-540 Calibration Certification |
| 700 | MATE Compatability |
| 806 | Rack slide kit |
| 908 | Rack Flange Kit for Use without Handles |
| 910 | Additional operating and service manual |
| 911 | Delete documentation set |
| 913 | Rack Mount Flange Kit |
| ABD | Germany Quick Users Guide (German localization) |
| H10 | MSIB Interface, Option 003, power up interface |
| K50 | 50 GHz upgrade to 83650 specifications. |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
| UK6 | Commercial calibration with test results data |
Specifications & Attributes 83640B(Signal Gen/Synthesizers/Sweepers)
| Modulation |
|---|
| AM |
| FM |
| Pulse ( /006 ) |
