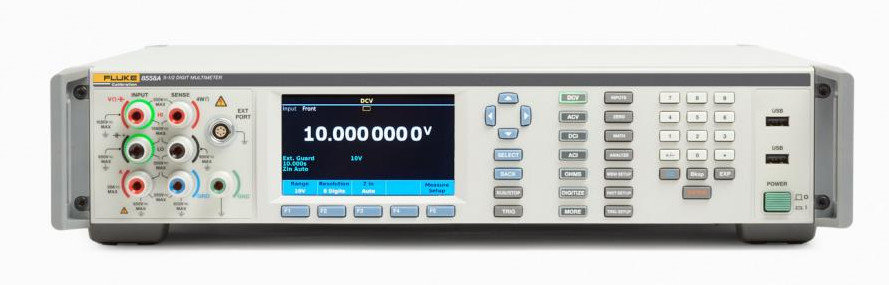

Fluke 8558A 8.5 Digit Precision Multimeter
Description of Fluke 8558A
The 8558A 8.5 digit multimeter offers 5 mega-samples-per-second
high resolution digitizing for system automation in labs and
manufacturing test environments. Fluke’s new high-speed system
design and the industry’s fastest direct digitizing capability
enable significant throughput increases for many automated system
applications that require a combination of highest speed and best
accuracy. The superb accuracy is delivered over a wide measurement
range, over nine functions, with an intuitive user interface on a
color display.
The 8558A shares the same platform as the fully loaded
8588A Reference Multimeter. The platform features a common intuitive user interface with
easy-to-navigate menu structure for all configuration and matching
SCPI-compliant commands for automated environment. The 8588A
platform guarantees a minimum of 100,000 readings per second at 4.5
digits across GPIB, USBTMC or Ethernet, and an onboard data memory
that can hold up to 15 million readings.
Fluke 8558A Key Features and Performance
DC current
- 10 uA to 2 A (8558A)
- 2.02x full scale
- Maximum resolution: 1 pA
- 9 μA/A (95 %), 12 μA/V (99 %), 1 year
- 0 ns to 100 s reading aperture
DC voltage
- 100 mV to 1000 V, (1050V max)
- 2.02x full scale
- Maximum resolution: 1 nV
- 4.0 μV/V (95 %) 5.7 μV/V (99 %), 1 year
- 0.5 μV/V (95 %) 0.65 μV/V (99 %), 24 hour stability
- 0 to 10 s reading aperture (200 ns resolution)
AC current
- 10 uA to 30 A (8588A only; 2 A for 8558A)
- 2.02x full scale Vpp, 1 Hz to 100 kHz 1.2x full scale Vrms
- Maximum resolution: 1 pA
- 300 μA/A (95 %), 387 μA/V (99 %), 1 year
AC voltage
- 10 mV to 1000 V, 1 Hz to 10 MHz, (1050 Vrms max)
- 2.02x full scale Vpp, 1.2x full scale Vrms
- Maximum resolution: 1 nV
- 80 μV/V (95 %), 103 μV/V (99 %), 1 year
Resistance
- 1Ω to 10 GΩ (20 GΩ max)
- 2.02x full scale
- Maximum resolution: 10 nΩ
- 10 μΩ/Ω (95 %), 13 μΩ/Ω (99 %), 1 year
- Low current mode, high voltage mode and current-reversal Tru Ohms™
Capacitance
- 1 nF to 100 mF
- 400 μF/F, 1 year
Measurement memory
- 15 million readings volitile
- 7.5 million readings with volitile time stamp
- 16 GB non-volitile
Temperature
- PRT and thermocouple
- 5 mK PRT, 25 mK TC - 1 year
Trigger mechanisms
- Manual trigger
- External BNC Trig In and Trig Out
- Internal or level trigger
- Timer trigger
- Epoch trigger
- Line trigger
- BUS trigger

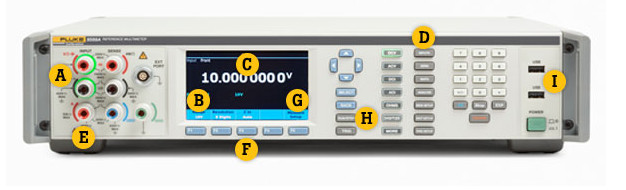

Fluke 8558A Feature Callouts
A. Visual Connection Management terminals
Active terminals light up, guiding the user to make the correct
connections.
B. Easy-to-access configurations
Range, aperture, input impedance, RMS filter and other measurement
configurations are readily available.
C. Large, bright full color display
The intuitive user interface and flat menu structure make it easy
to access configurations and view trend plots, waveforms, FFT,
histogram and statistics.
D. Programmable front/rear electronic switch
Eliminates manual operation and allows immediate ratio results
through a single remote command.
E. 30 A terminal (8588A only; 2A for 8558A)
Enables industry's widest current measurement range through a
single terminal.
F. Soft menu keys
Adapt to the active function, so the menu structure is intuitive
and easy to learn.
G. Multi-language selection
Choice of English, Chinese, French, Japanese, Korean, Russian and
Spanish.
H. Run/Stop trigger
Toggles the continuous, or free run, measurement state.
I. USB ports
Download data quickly and easily to a flash drive.

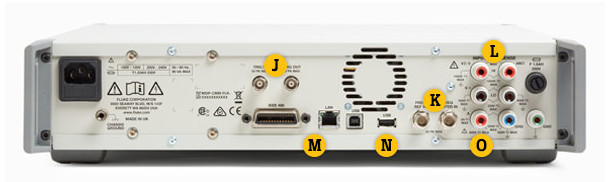

J. Trig in/Trig out
Precise triggering maximizes synchronization in system automation.
K. Freq Counter
Enables 100 MHz frequency counter measurement at 0.5 uHz/z.
L. Rear panel input terminals
Mirrors front panel input terminals for connection compatibility
and allows for front/rear scan measurement.
M. IEEE 488, LAN, USB interfaces
Standard remote interface for straightforward system integration.
N. USB port
Download data quickly and easily to a flash drive.
O. 2 A terminal
| Bench Multimeter Selection Guide |
|---|
| Model | Resolution | Accuracy | Application |
| 8588A | 8.5 | 2.7 µV/V 95% confidence level, 1 year relative accuracy | Metrology |
| 8558A | 8.5 | 4.0 µV/V 95% confidence level, 1 year relative accuracy | High-Speed Automation |
| 8845A/8846A | 6.5 | Basic V dc accuracy of up to 0.0024 % | Bench |
| 8808A | 5.5 | Basic V dc accuracy of 0.015 % | Bench |
