Wavetek 9100 Multi Product Calibrator DCV ACV DCI ACI Multifunction
DMM Calibrators

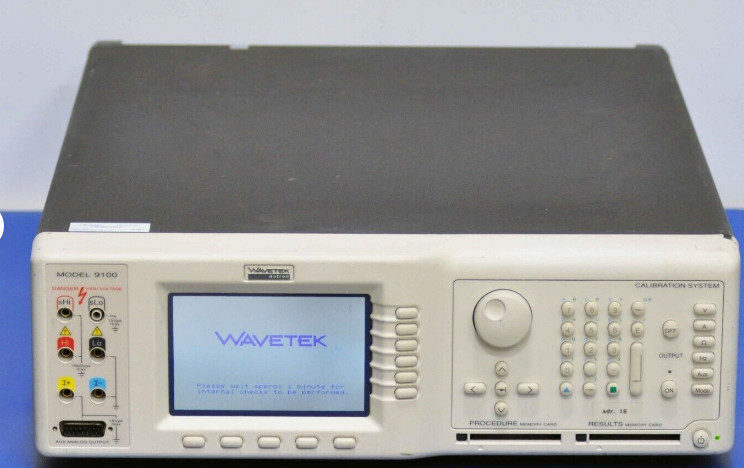

Discription of Wavetek 9100 Multi Product Calibrator
The 9100 is a multifunction calibrator with a breadth and depth of
outputs never before available from a single calibration source. In
addition to DC and AC voltage to 1050V, variable Resistance to
400MΩ and DC and AC current to 20A (1000A via the optional current
coils), the 9100 delivers continuously variable capacitance values
to 40mF and conductance values to 2.5 milliSiemens. It also
generates digitally synthesized and phaselocked sine, square,
triangle, impulse and trapezoidal waveforms, variable amplitude
pulses to 10 MHz, pulse widths to 2 seconds, and duty cycles
between 0.05% and 99.95%.
Add one of the two oscilloscope calibration options and it
generates all the waveforms required to calibrate oscilloscopes up
to 250 MHz or 600 MHz.
Fit the insulation/ continuity tester option and it synthesizes
resistance values as high as 2GΩ at test voltages up to 1000V. Fit
the power meter option and it simultaneously generates variable
phase angle voltages and currents that allow you to calibrate power
meters up to 1 MW or 1 MVAR.
No other multi-product calibrator gives you such wide workload
coverage and versatility. Weighing in at only 41 lbs (18.5 kg),
it's also the ideal solution to on-site calibration.
Faster throughput calibration
To cope with the varied and demanding workload of a modern
calibration department, you not only need a calibrator that’s
versatile, you also need one that maximizes throughput. That’s why
the 9100 incorporates a unique procedure mode that guides untrained
operators through the entire calibration process, with direct
printout of calibration results on a connected printer. For
commonly used instruments, the chances are you’ll find the
calibration procedures you need in our comprehensive procedure
library.
Model 9100 - the low-cost solution to calibrating
- Calibrates over 15 different categories of general-purpose test
equipment Options for power meter
- insulation/continuity tester and oscilloscope calibration -
internally installed and retrofittable
- Semi-automated and fully automated procedure modes for maximum
calibration throughput
- Fully supported by MET/CAL® Plus software and procedure libraries
- Rapid return on investment

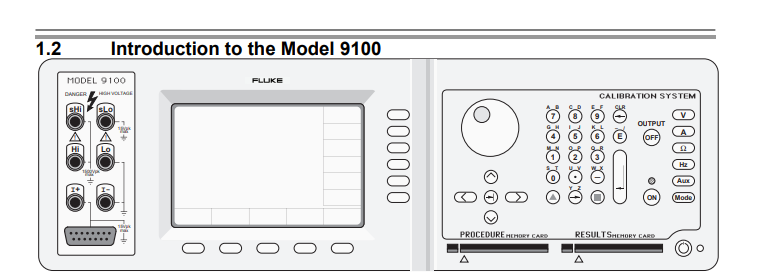

- Intuitive front panel operation for ease of use
List of Options of 9100
| 100 | High Stability Crystal Reference |
| 135 | Insulation/Continuity Tester Calibration Module (fitted internally) |
| 200 | 10/50 Turn Coils |
| 250 | 250 MHz Oscilloscope Calibration Module (fitted internally) |
| 600 | 600 MHz Oscilloscope Calibration Module (fitted internally) |
| 90 | Rack Mount Kit |
| PWR | Power Meter Calibration Module (fitted internally) |
