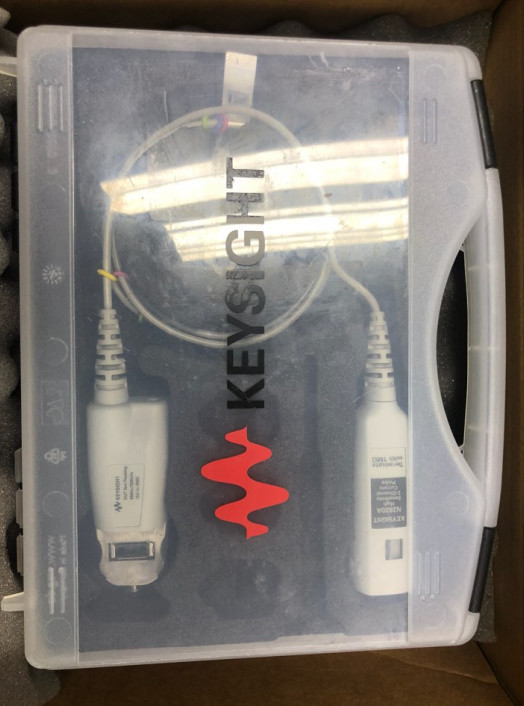

Keysight (Agilent) N2820A 3 MHz/50uA High Sensitivity AC/DC Current
Probe (2-ch)
Description of N2820A High Sensitivity AC/DC Current Probe
Industry’s highest sensitivity
- Minimum current range of 50 uA
- Maximum current range of 5 A
- Wide dynamic range of >20,000:1 or 86 dB
- Bandwidth
- 3 MHz - zoom-out channel
- 500 kHz - zoom-in channel
See the details N2820A without losing sight of the big picture
- Ideal for capturing and analyzing low level current flow in the DUT
to characterize sub-circuits or measure current consumption of
wireless battery-powered devices or integrated circuits
- Simultaneous high- and low- gain views of the current waveform for
more precise wide dynamic range measurement
- Probe accessories included with the probe or orderable separately:
interchangeable sensor heads, MBB receptacles, headers and hook-up
wires.
As modern battery-powered devices and integrated circuits become
more green and energy efficient, there is a growing need to make
high-sensitivity, low-level current measurements to ensure the
current consumption of these devices is in acceptable limits. The
N2820A high-sensitivity probe is engineered to make
high-dynamic-range, high-sensitivity measurements to meet today’s
challenging current measurement needs.
The ultra-sensitive N2820A AC/DC current probe can support
measurements from 50 uA to 5 A on Keysight oscilloscopes. The
N2820A interface uses a make-before-break (MBB) connector, allowing
you to quickly probe multiple locations on your DUT without having
to solder or unsolder the leads.
The N2820A 2-channel current probe connects to two oscilloscope
channels to provide simultaneous low- and high-gain views for wider
dynamic range measurement, while the N2821A 1-channel current probe
provides one user-selectable view at a time.
Use N2820A in combination with the 9000 H-Series HD Infiniium oscilloscopes
for the ultimate high-definition measurement solution. Use an
area-under-the-curve measurement (Charge) on Infiniium
oscilloscopes where you can easily calculate the integrated current
consumptions over time in Coulombs.
Bandwidth (with N2825A head): 3 MHz (Zoom-Out Channel); 500 kHz
(Zoom-In Channel)
Rise time: <0.116µsec (Zoom-Out Channel); 0.7 µsec (Zoom-In
Channel)
Min current range N2820A: 100nA (with N2825A user-defined 1 kΩ, 500
mW)
Max current rangeN2820A: 120A (with N2825A user-defined 1.5 mΩ
installed, 20 W)
High-sensitivity, high dynamic range AC/DC current probe, connect
to 2 oscilloscope channels
Compatible with high impedance AutoProbe interface; Probe powered
by scope
Interchangeable Rsense heads included (20 mΩ, 100 mΩ, user-defined:
1 mΩ to 1 MΩ)
Measure current consumption of wireless battery-powered devices or
integrated circuits
Simultaneous high/low gain views of current waveform for precise
wide
