Keysight Agilent DAQ970A Data Acquisition System
Description of Keysight Agilent DAQ970A Data Acquisition System
Get the next-generation data acquisition (DAQ) system with a
three-slot mainframe and your choice of nine plug-in modules.
Interface with the DAQ using Keysight BenchVue DAQ software or use
the intuitive graphical front panel with task-oriented,
self-guiding menus. The DAQ970A / DAQ973A data acquisition systems
have high-quality switching and an advanced 6.5 digit multimeter
built-in that allows you to measure accurately.
Highlights of Keysight Agilent DAQ970A Data Acquisition System

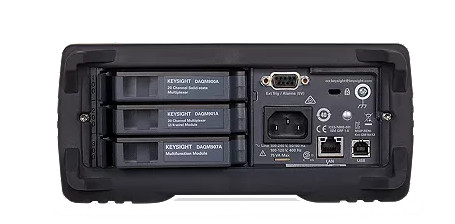

- Three-slot mainframe with built-in 6.5 digit DMM
- Choice of USB, LAN, or GPIB interfaces for easy connectivity to
your PC
- Graphical Web interface for point and click monitor and control
- Nine switch and control plug-in modules
- USB flash drive support to copy/log data in standalone applications
- Measures and converts 12 different input signals: temperature with
thermocouples, RTDs and thermistors, dc/ac volts, 2- and 4-wire
resistance, frequency and period, dc/ac current, and capacitance
1. USB drive
2. On/Standby switch with LED indicator
3. Color LCD Display / GUI
4. Softkeys
5. Measurement operation keys
6. Measurement configuration keys (to set measurement parameters)
7. Knob
8.Cursor navigation keypad
Key DAQ970A and DAQ973A Capabilities
Types of measurements: Temperature, voltage, current, resistance,
frequency, diode and capacitance, direct strain and bridge strain
Digital Input/Output: Up to 48-bits
Analog output: -10 V to +10 V, 20 mA
Multiplexing: Maximum 120 (1-wire), 60 (2-wire) channels
Matrix switching: Maximum 96 cross points
General purpose: Maximum 60 switches
RF multiplexing: Maximum 24 channels, 2 GHz
Simultaneous sampling: Maximum 12 channels, up to 800 kSa/s, 24-bit
resolution
Interface: Graphic web, USB front/rear, LAN/LXI, GPIB (only for
DAQ973A)
List of Plug-in Modules of Keysight DAQ970A
Standard connectivity to the PC
The DAQ970A has built-in Gigabit LAN and USB 2.0. With the standard
LAN connection, you also get the added benefit of a graphical Web
interface for easy configuration of measurements and monitoring of
results using a standard Web browser. In addition to LAN and USB,
the DAQ973A comes with a built-in GPIB interface.
Built-in signal conditioning to get your job done faster
Whether you need to measure temperature, ac/dc volts, resistance,
frequency, or current, the DAQ970A/DAQ973A can handle it. The
internal auto-ranging DMM directly measures 12 different functions,
eliminating the need for expensive external signal conditioning.
And our unique design allows complete per channel configurability
for maximum flexibility and quick, easy set up. It’s like having an
independent, high-performance DMM behind each channel
Virtual front panel control via Web interface
The built-in graphical Web interface provides easy access and
control of the instrument using a Web browser such as Chrome and
Internet Explorer. Using this interface, you can configure
measurements, define and execute scan lists, or monitor measurement
results from anywhere on the network. Simply enter the instrument
host name or IP address into the browser URL and gain access to the
instrument’s front panel capabilities.
• Specify per channel measurement configuration
• Monitor measurement readings
• Define and execute switch scans
• View error queue
• View and save data
• View instrument information like module configuration, relay
counts, firmware revisions, and more
Additionally, since the Web interface is built into the instrument,
you can access it on any operating system that supports a Web
browser without having to install any special software. Password
protection and LAN lock out are also provided to limit access. The
graphical Web interface makes it easy to configure measurements,
set up and execute scans or troubleshoot your designs from anywhere
on the network.
Large 4.3” color display for ease of setup, configure and viewing
data
The DAQ970A/DAQ973A 4.3” graphical color display and soft keys are
designed to be intuitive for easy configuration and measurement
displays in multiple formats. You can view the measurements in
numeric digit, bar graph, trend chart and histogram, giving you a
quick overview of your measurement.
