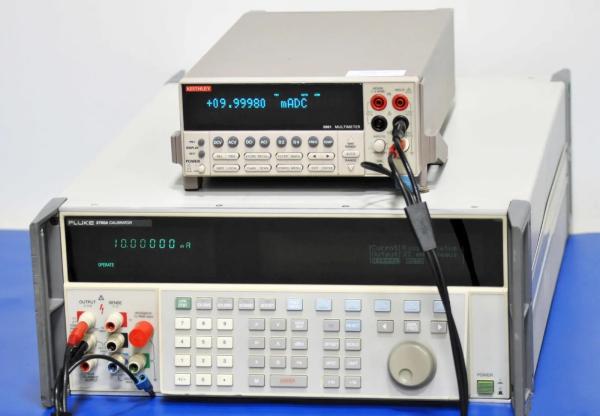

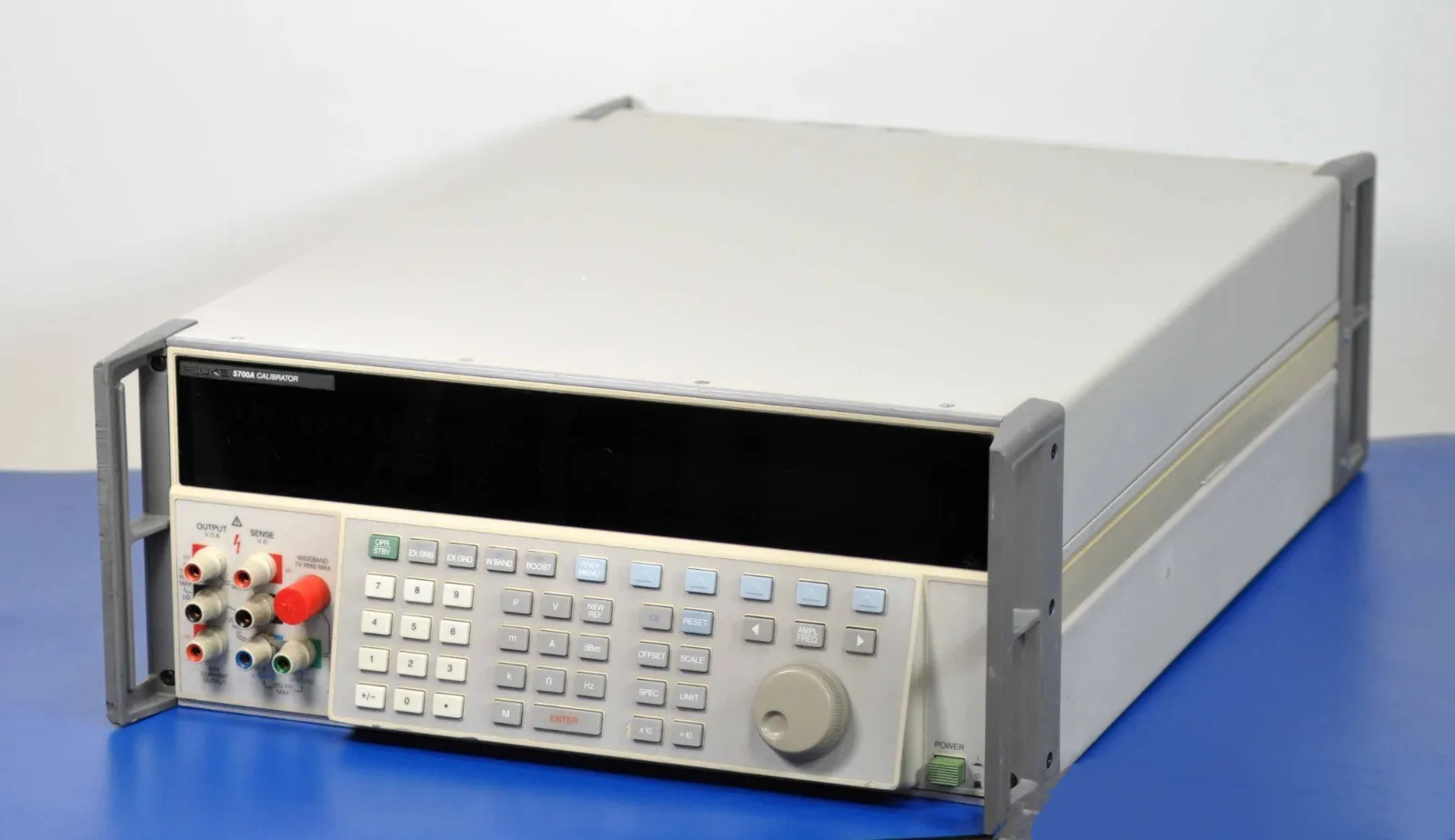

Multiscene Fluke 5700A Multifunction Calibrator Durable 600 MHz

Fluke 5700A High Performance Multi-product Calibrator

Description of Fluke 5700A Multi Product Calibrator

The 5700A is a five-function calibrator designed to address the most demanding electrical calibration workload. They source direct and alternating voltage and current and resistance. A wideband voltage option extends overall ac bandwidth to 10 Hz to 30 MHz. Both are compatible with the 5725A, and 5205A/5215A amplifiers. It delivers direct voltage to 1100V and alternating voltage from 220V to 1100V at frequencies from 10Hz to 1.2MHz. Cardinal point resistances range from 1-ohm to 100 Mohms in x1 and x1.9 decades, including a short. Direct and alternating current are provided to 2.2 A, and frequencies for alternating current range from 10Hz to 10kHz.
In service since 1988, the 5700A has undergone continuous improvements to become the 5700A Series II, one of the most tested and reliable high precision calibrators Fluke has ever produced. Considered the calibration standard worldwide, the 5700A delivers high value as well as accuracy covering 5 1/2 to 7 1/2 digit dmms.

Main features and specifications of the Fluke 5700A Multi Product Calibrator

High accuracy: The Fluke 5700A provides very high voltage and current output accuracy, typically up to 0.0025% within a specified range.
Wide range output: It can generate DC voltage outputs from microvolts to 1,100 volts, and current outputs from 1 mA to 3.2 A.
Programmable Outputs: The calibrator features programmable output capabilities, allowing for control and adjustments via a user interface or remote interface.
Internal Calibration: Support for internal self-calibration ensures long-term stability and accuracy.
Multiple Calibration Functions: In addition to voltage and current calibration, it supports calibration for frequency, resistance, temperature, and power.
Multiple Interfaces: Equipped with standard GPIB (General Purpose Interface Bus) and RS-232 interfaces for communication and control with computers and other devices.
High Reliability: Designed with high-quality components and construction for excellent long-term stability and reliability.
Flexibility: Supports various operation modes and calibration procedures to meet the requirements of different applications.

DC Voltage

Ranges: 0 to ±1100V
5700A Best 1 Year Specification: ±7.0 ppm of setting

AC Voltage Ranges:

220 mV to 1100V
10 Hz to 1 MHz
5700A Best 1 Year Specification: ±75.0 ppm of setting

Resistance Ranges:

0 to 100 MW, 18 values in x1 and x1.9
5700A Best 1 Year Specification: ±12.0 ppm

DC Current Ranges:

0 to Û2.2A (11A with 5725A)
5700A Best 1 Year Specification: Û50 ppm of setting

AC Current Ranges:

9 mA to 2.2A (11A with 5725A) 10 Hz to 10 kHz
5700A Best 1 Year Specification: ±140 ppm of setting

Technical Specifications

Voltage DC

Range:	0 to ±1100V
5700A Best 1 Year Specification:	±7.0 ppm of setting
5720A Best 1 Year Specification:	±3.5 ppm of setting

Voltage AC

Range:	0.22 µV to 1100V
	10 Hz to 1 MHz
5700A Best 1 Year Specification:	±75.0 ppm of setting
5720A Best 1 Year Specification:	±45.0 ppm of setting

Resistance

Range:	0 to 100 MΩ, 18 values in x1 and x1.9
5700A Best 1 Year Specification:	±12.0 ppm
5720A Best 1 Year Specification:	±8.5 ppm

Current DC

Range:	0 to ±2.2A (11A with 5725A)
5700A Best 1 Year Specification:	±50 ppm of setting
5720A Best 1 Year Specification:	±35 ppm of setting

Current AC

Range:	9 µA to 2.2A (11A with 5725A) 10 Hz to 10 kHz
5700A Best 1 Year Specification:	±140 ppm of setting
5720A Best 1 Year Specification:	±120 ppm of setting

Wideband AC Voltage Option

Range:	300 µV to 3.5V
	10 Hz to 30 MHz
5700A Best 1 Year Specification:	±0.4% of setting
5720A Best 1 Year Specification:	±0.4% of setting

General Specifications

Warm up Time

2x the time since last warmed up, to a maximum of 30 minutes

System Installation

Rear output configuration and rack-mount kit available

Interfaces

IEEE-488, RS-232, 5725A, 5205A or 5215A, 5220A, phase lock in (BNC), phase reference out (BNC)

Temperature Performance

Operating:	0°C to 50°C
Calibration:	15°C to 35°C
Storage:	-40°C to 75°C

Relative Humidity

Operating:	< 80% to 30°C, < 70% to 40°C, < 40% to 50°C
Storage:	< 95%, non-condensing. A power-on stabilization period of four days may be required after extended storage at high temperature and humidity.

Safety

Designed to comply with UL311; IEC 348-1978; IEC 66E (CO)4; CSA 556B

Guard isolation

20 volts

EMI/RFI

Designed to comply with FCC Rules Part 15, Subpart J, Class B; VDE 0871, Class B

Line Power

	47 to 63 Hz; + 10% allowed about selectable nominal line voltage: 100V, 110V, 115V, 120V, 200V, 220V, 230V, 240V
	--------------
Maximum power:	5700A/5720A: 300 VA;5725A, 750 VA

Calibration Documentation

17025 accredited report of calibration included

Size

5700A/5720A:	Height 17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet; width 43.2 cm (17 in), standard rack width; depth 63.0 cm (24.8 in) overall; 57.8 cm (22.7 in), rack depth
5725A:	Height 13.3 cm (5.25 in); width and depth same as 5700A/5720A
	Both units project 5.2 cm, (2 in) from rack front

Weight

5700A/5720A:	27 kg (62 lbs.)
5725A:	32 kg (70 lbs.)

List of Options

Options
03	Wideband AC Voltage Module
EP	UPGRADED FROM A 5700A
NAF-03	NAF version with 03 wideband AC Voltage
