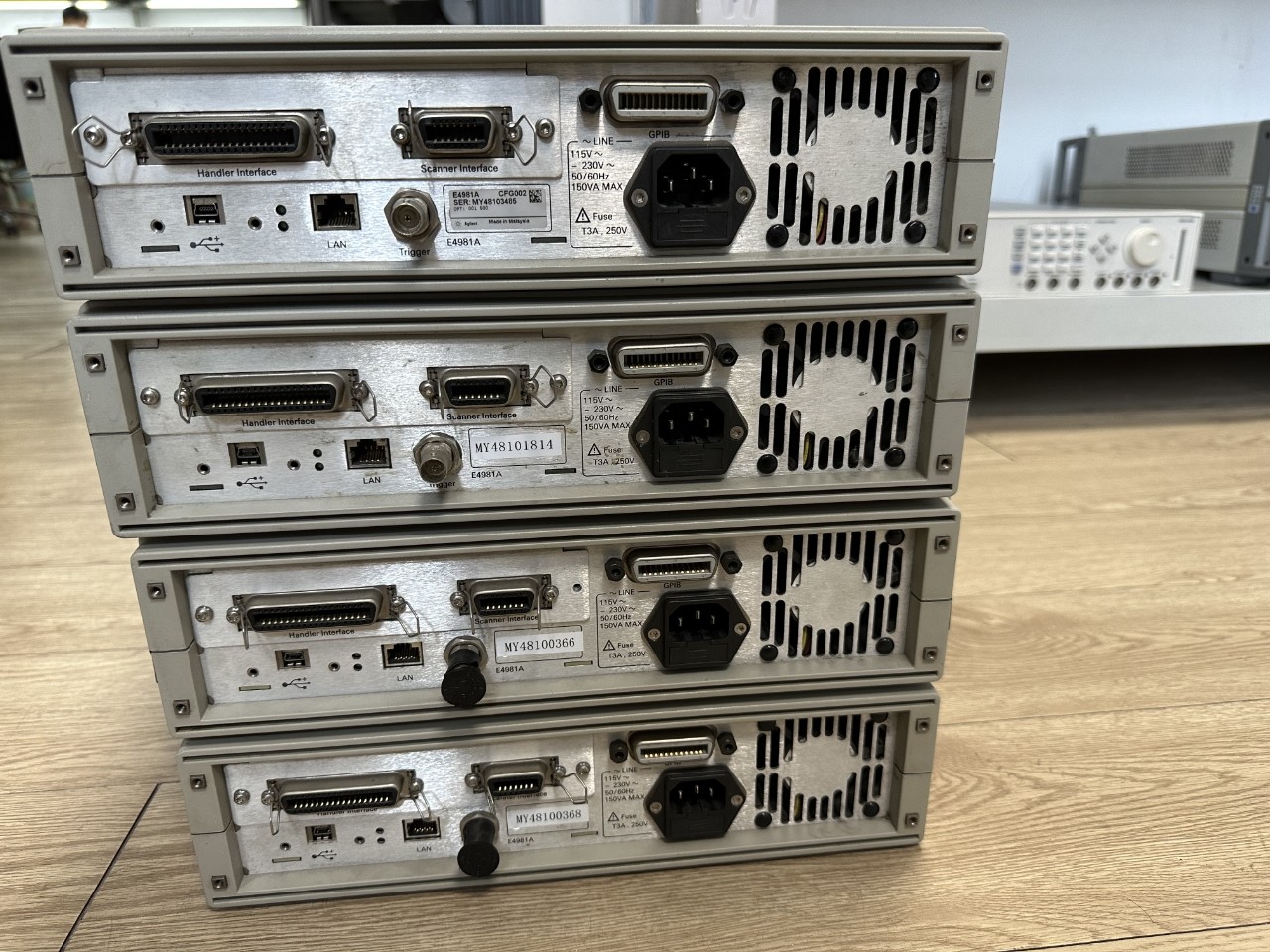

    Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter

    Ask Lasest Price
    Brand Name : Keysight (Agilent)
    Model Number : E4981A
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : in stock
    • Product Details
    • Company Profile

    Tested In Full Working Condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter

    Tested in full working condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter


    Description of Keysight Agilent E4981A


    The E4981A capacitance meter offers a high-speed with reliable measurements for ceramic capacitor testing in the production lines. The E4981A realizes the measurement capabilities of capacitance from small to large values with accurate measurements. The E4981A capacitance meter contributes improvements of the test throughput, while attaining excellent component quality for ceramic capacitor testing.

    Measurement Time

    • High speed measurement: 2.3 ms (1 MHz), 3.0 ms (1 kHz), 11.0 ms (120 Hz)

    Basic Accuracy

    • Accurate C-D testing: 0.07%, 0.0005

    More Features

    • 9 Bin Sorting
    • 256 Multi-channel correction
    • Compatible SCPI command and Handler/Scanner interfaces with the 4268A and 4288A
    • Test signal level compensation for high value ceramic capacitor tests
    • Versatile PC connectivity (LAN, USB and GPIB)

    A Complete Solution that Replaces the 4268Aand 4288A

    • Fast measurement speed – 2 ms (From trigger to EOM at 1 MHz)
    • Accurate and repeatable measurements, even small capacitance can be measured.
    • Wide measurement range from small to large capacitance 0 F to 2.0 mF
      • (0 F to 1.5 nF/1 MHz)
      • (68 pF to 200 nF/1 kHz)
      • (6.8 nF to 2 mF/120 Hz)
    • Compatibility with the 4268A and 4288A
      • SCPI commands
      • Handler I/F
      • Scanner I/F
    • Enhanced functions for production test
      • Enhanced contact failure detections
      • Synchronous source
      • Frequency shift (±1%, ±2%) at 1 MHz
      • Faster data transfer
    List of Options
    001Frequency, 120 Hz/1 kHz/1 MHz
    002Frequency, 120 Hz/1 kHz
    16034ETest Fixture (SMD Components)
    16034GSMD Test Fixture
    16034HSMD Array Type LCR Test Fixture
    16044ASMD LCR Kelvin Contact Test Fixture
    16047ATest Fixture (Axial and Radial)
    16047DTest Fixture
    16047ETest Fixture, 40 Hz to 110 MHz
    16048ATest Lead, BNC Connector to BNC Connector Board
    16048D2m BNC Test Cable
    16065A200 Vdc External Voltage Bias Fixture
    16085BTerminal Adapter
    16089ALarge Kelvin Clip Lead
    16089BMedium Kelvin Clip Lead
    16089CKelvin IC Clip Lead
    16089DAlligator Clip Lead (4 Clips)
    16089EKelvin Clip Leads
    16092ASpring Clip Fixture
    16192AParallel Electrode SMD Test Fixture
    16194AHigh Temperature Component Test Fixture
    16196AParallel Electrode SMD Test Fixture, DC to 3 GHz
    16196BParallel Electrode SMD Test Fixture, DC to 3 GHz
    16196CParallel Electrode SMD Test Fixture, DC to 3 GHz
    16196DParallel Electrode SMD Test Fixture, DC to 3 GHz
    16197ABottom Electrode SMD Test Fixture
    16200BExternal DC Bias Adapter
    16334ATest Fixture (Tweezers Contacts)
    16380AStandard Air Capacitor Set (1pF to 1000pF)
    16380CCapacitance Standard Set - 0.01uF to 10uF
    16451BDielectric Test Fixture
    1A7ISO 17025 compliant calibration
    1CMRack mount kit
    42030AFour Terminal Pair Standard Resistor Set
    42090AOpen Termination (4-Terminal Pair)
    42091AShort Termination (4-Terminal Pair)
    600Delete front handle kit

    FAQ:

    1.Can you ship order to Canada or Australia ?
    Yes,we can .We send orders worldwide .
    2. What delivery method do you use ? and delivery time ?
    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
    3. What is your payment term?
    100% T/T payment before shipment.
    4. How can I ask any other question ?
    You can contact us online or leave us messages below .
