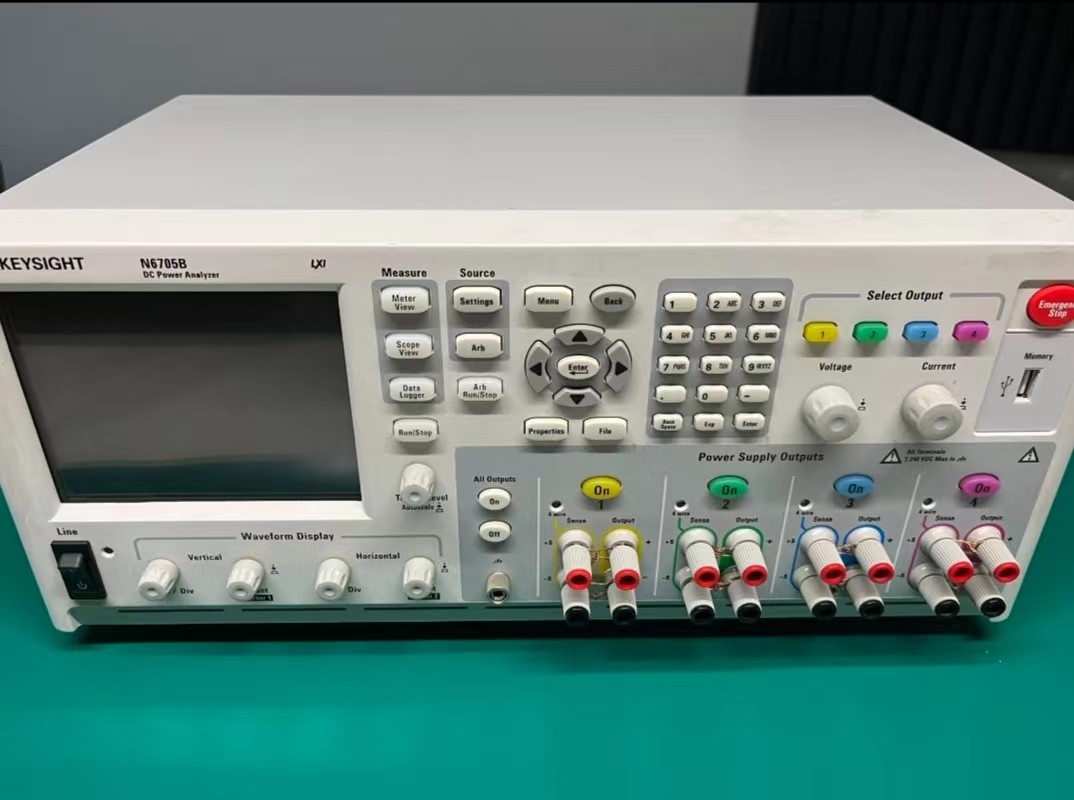

Keysight (Agilent) N6705B DC Power Analyzer, Modular, 600 W, 4
Slots
Description of Keysight Agilent Keysight (Agilent) N6705BDC Power
Analyzer, Modular, 600 W, 4 Slots
The N6705B saves time
The N6705B DC Power Analyzer provides unrivaled productivity gains
for sourcing and measuring DC voltage and current into the DUT by
integrating up to 4 advanced power supplies with DMM, Scope, Arb,
and Data Logger features. The N6705B eliminates the need to gather
multiple pieces of equipment and create complex test setups
including transducers (such as current probes and shunts) to
measure current into your DUT. The DC Power Analyzer also
eliminates the need to develop and debug programs to control a
collection of instruments and take useful measurements because all
functions and measurements are available at the front panel. For
even greater control and analysis functions, the DC Power Analyzer
can be used with the 14585A Control and Analysis Software. When
automated bench setups are required, the N6705B is fully
programmable over GPIB, USB, LAN and is LXI Compliant.
The N6705B can be tailored to meet your needs
The N6705B offers flexible configuration to meet your power
sourcing and analysis requirements. The N6705B is a 4-slot
mainframe that accepts up to 4 DC Power Modules, and up to 600 W
total DC Power Module output power. The modules are ordered
separately.
N6705B accepts the same modules as N6700 Modular Power System, with
over 30 modules to choose from. Basic sources for the N6705B
include: 50 W, 100 W, and 300 W; up to 150 V, up to 50 A.
High-performance sources for the N6705B include: 50 W, 100 W, 300
W, and 500 W; up to 60 V, up to 50 A. Precision sources for the
N6705B include: 50 W, 100 W, 300 W, and 500 W; up to 60 V, up to 50
A. Source/Measure units for the N6705B include: 20 W; up to 20 V,
up to 3 A. Each module includes built-in voltmeter, ammeter, scope,
arbitrary waveform generator, and data logger functions.
Features:
- Easy to use R&D tool for sourcing and measuring DC voltage and
current into the DUT
- Integrates capabilities of up to 4 Power Supplies, DMM, Scope, Arb
and Data Logger
- Access all capabilities without programming; either use the front
panel controls or the 14585A Control and Analysis Software
- Intuitive, dedicated physical controls for common functions
- Large color graphics display for easy viewing of complex data
- Connections and controls color-coded to the display for fast and
error-free setup
- Programmable via standard GPIB, LAN and USB; LXI Class C Compliant
