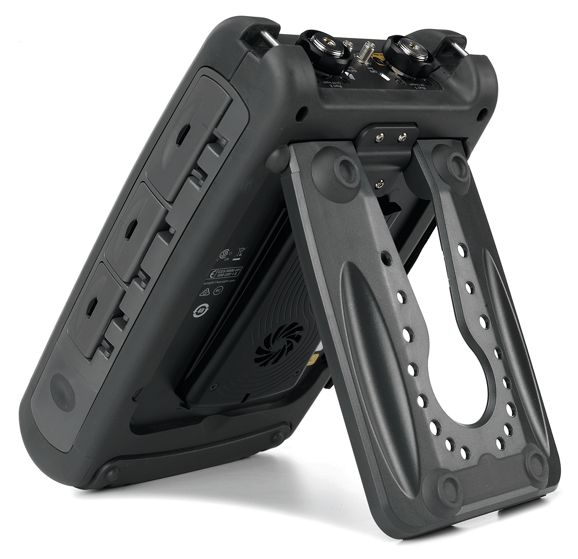

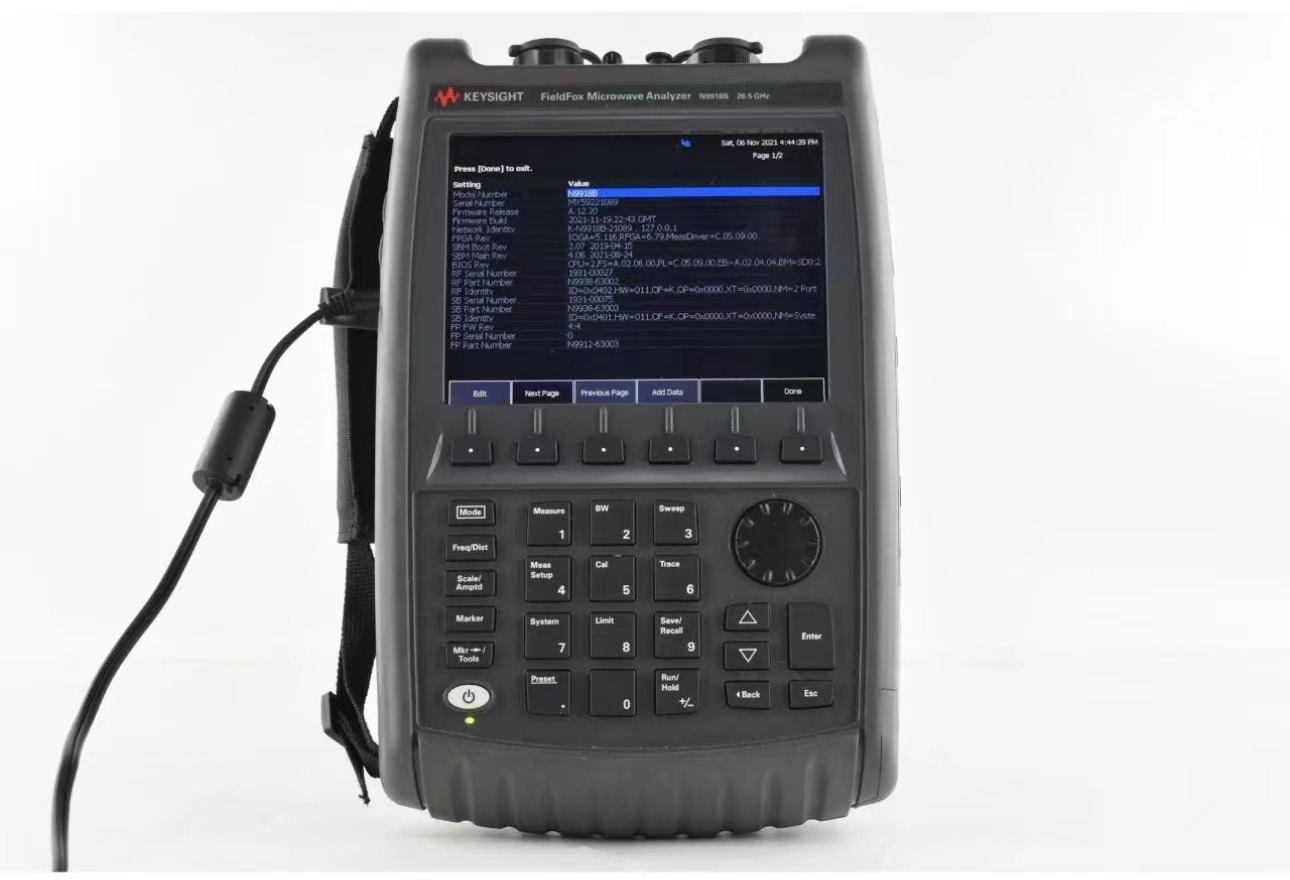

Portable Keysight (Agilent) N9918B FieldFox Handheld Signal
Analyzer, 26.5GHz
Description of Keysight (Agilent) N9918B
- 26.5 GHz max frequency
- Cable and Antenna Analyzer (CAT) included in standard models
- The 120 MHz gap-free real-time bandwidth enables you to capture
signals that were previously difficult to capture
- The 115 dB dynamic range enables you to measure all four
S-parameters simultaneously.
- Accurate spectrum analyzer measurements (± 0.3dB) without
preheating
- Air interface measurements for 5G NR and LTE can be performed
- Provides geolocation and time stamp using GPS/GNSS
- Weighing just 3.4 kg (7.4 lb), it is very portable
| Maximum Frequency | 26.5 GHz |
|---|
| Other CAT/VNA features | Mixed-Mode S-Parameters
DTF/TDR Cable Measurements
Vector Voltmeter |
|---|
| Adhibition | AM/FM Tune and Listen Cable and Antenna Analysis Field Strength Measurement SCPI Code Compatibility Spectrogram Stimulus Response 89600 VSA Software Over-The-Air LTE FDD and 5GTF 5G NR |
|---|
| Best Speed at 1001 Point, 1 Sweep | 171 us/pt |
|---|
| SA Start Frequency | 5 kHz |
|---|
| System Dynamic Range | > 114 dB |
|---|
| Additional spectrum analyzer features | Real-Time Spectrum Analysis Noise Figure Measurements Over-The-Air Measurements Built-In Power Meter Extended Range Transmission Analysis (ERTA) |
|---|
| Output Power | 8 dBm |
|---|
| Appearance factor | n/a |
|---|
| Number of Built-In Ports | 2 ports |
|---|
| Instrument Type | Combination Analyzer |
|---|
| Cable and antenna analyzer | Yes - Standard |
|---|
| Spectrum Analyzer | Yes - Optional |
|---|
| vector network analyzer | Yes - Optional |
|---|
| Measuring function | Network analysis Signal analysis Cable and antenna tester Real-time spectrum analysis |
|---|
| Overall amplitude accuracy | ±0.2 dB |
|---|
| Types | Handheld |
|---|
| System Features | GPS Receiver - Internal Only Remote Control Capability Built-In DC Source
|
|---|
| Power Measurement Using USB Sensor |
Frequency-Offset CW or Swept-Frequency RF Pulse Test with Peak Sensor
|
|---|
| Standard Attenuator Range | 40 dB |
|---|
| Standard Attenuator Step | 5 dB |
|---|
| DANL @1 GHz | -163 dBm |
|---|
| Maximum Analysis Bandwidth | 120MHz |
|---|
| Maximum real-time bandwidth | 120MHz |
|---|
| Phase Noise @1 GHz (1 MHz offset) | -124dBc/Hz |
|---|
| Phase Noise @1 GHz (10 kHz offset) | -117 dBc/Hz |
|---|
| Phase Noise @1 GHz (30 kHz offset) | -115 dBc/Hz |
|---|
| TOI @1 GHz (3rd Order Intercept) | +11dBM |
|---|
| Bandwidth | 110 MHz |
|---|
| Bandwidth Options | 10 MHz 40 MHz 120 MHz |
|---|
| CAT/VNA start frequency | 30 kHz |
|---|
| Track noise | 0.0008 dB rms |
|---|
List of Options
| 010 | Vector network analyzer time domain |
| 030 | Remote Control Capability |
| 208 | USB Power Sensor Measurements Versus Frequency |
| 209 | Extended Range Transmission Analysis (ERTA) |
| 211 | Vector network analyzer full 2-port S-parameters |
| 212 | 1-port mixed-mode S-parameters |
| 215 | TDR cable measurements |
| 233 | Spectrum analyzer |
| 235 | Pre-amplifier |
| 236 | Interference analyzer and spectrogram |
| 238 | Spectrum Analyzer Time Gating |
| 302 | USB power sensor support |
| 307 | GPS Receiver |
| 308 | Vector voltmeter |
| 309 | DC Bias Variable Voltage Source |
| 310 | Built-in Power Meter |
| 312 | Channel Scanner |
| 320 | Reflection measurements (return loss, VSWR and scalar measurements) |
| 330 | Pulse Measurements |
| 350 | Real-time Spectrum Analyzer (RTSA) |
| 351 | I/Q Analyzer (IQA) |
| 355 | Analog Demodulation |
| 356 | Noise Figure measurements |
| 370 | Over the air LTE FDD measurements |
| 377 | Over the air 5G TF measurements |
| 378 | Over-the-air (OTA) 5G NR measurements |
| 352 | Indoor and outdoor mapping |
| 358 | EMF measurements |
| 371 | Over the air LTE TDD measurements |
| 361 | EMI measurements |
| 353 | IQ streaming |
| 1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) |
| A6J | ANSI Z540-1-1994 Calibration |
| UK6 | Commercial calibration certificate with test data |
| B04 | Bandwidth, 40 MHz |
| B10 | Bandwidth, 100 MHz |
