Fluke Connect Wireless App for Easy Data Collection with Fluke 1555
FC 10kV Insulation Tester
Description of Fluke 1555 FC 10kV Insulation Tester
The Fluke 1555 insulation resistance tester offers digital
insulation testing up to 10 kV, making it ideal for testing high
voltage equipment including switchgear, motors, generators and
cables.
Data collection is easy using the Fluke Connect® wireless app.
Remote operation lets you spend as little time as possible in
potentially hazardous zones. Real-time trending shows a live graph
on your phone, rather than a hard-to-read set of changing values.
And you can create reports quickly, using pre-designed templates
that you can customize with company logos. The 1555 insulation
tester can now conduct the entire range of test voltages specified
in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV
600 V safety rating.
Other useful features:
- Automatic calculation of Dielectric Absorption (DAR) and
Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on
high-resistance measurements
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and
100 V steps above 1000 V
- CAT III 1000 V, CAT IV 600 V safety rating
- Warning function alerts the user that line voltage is present and
gives the voltage reading up to 600 V AC or DC for increased user
safety
- Measurements can be stored in up to 99 memory locations, with each
location assigned a unique, user defined, label for easy recall
- Long battery life gives the user over 750 tests between charges
- Large digital/analog LCD for easy viewing
- Capacitance and leakage current measurement
- Ramp function for breakdown testing
- Resistance measurements up to 2 TΩ
- Timer settings up to 99 minutes for timed tests
Electrical Specifications
The tester's accuracy is specified for one year after calibration
at operating temperatures of 0°C to 35°C. For operating
temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add
±.25% per °C, except on the 20% bands add ±1% per °C.
| Insulation Resistance Measurement |
| Test voltage (DC) |
| 250 V | Range | < 250 kΩ,
250 kΩ to 5 GΩ
5 GΩ to 50 GΩ
> 50 GΩ |
| Accuracy (± reading) | Unspecified
5%
20%
Unspecified |
| 500 V | Range | < 500 kΩ
500 kΩ to 10 GΩ
10 GΩ to 100 GΩ
> 100 GΩ |
| Accuracy (± reading) | Unspecified
5%
20%
Unspecified |
| 1000 V | Range | < 1 MΩ
1 MΩ to 20 GΩ
20 GΩ to 200 GΩ
> 200 GΩ |
| Accuracy (± reading) | Unspecified
5%
20%
Unspecified |
| 2500 V | Range | < 2.5 MΩ
2.5 MΩ to 50 GΩ
50 GΩ to 500 GΩ
> 500 GΩ |
| Accuracy (± reading) | Unspecified
5%
20%
Unspecified |
| 5000 V | Range | < 5 MΩ
5 MΩ to 100 GΩ
100 GΩ to 1 TΩ
> 1 TΩ |
| Accuracy (± reading) | Unspecified
5%
20%
Unspecified |
| 10000 V | Range | < 10 MΩ
10 MΩ to 200 GΩ
200 GΩ to 2 TΩ
> 2 TΩ |
| Accuracy (± reading) | Unspecified
5%
20%
Unspecified |
| Bar graph range | 0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555) |
| Insulation test voltage accuracy | -0%, +10% at 1 mA load current |
| Induced AC mains current rejection | 2 mA maximum |
| Charging rate for capacitive load | 5 seconds per μF |
| Discharge rate for capacitive load | 1.5 s/μF |
| Leakage current measurement | Range | 1 nA to 2 mA |
| Accuracy | ±(5% + 2 nA) |
| Capacitance measurement | Range | 0.01 μF to 15.00 μF |
| Accuracy | ±(15% rdg + 0.03 μF) |
| Timer | Range | 0 to 99 minutes |
| Resolution setting | 1 minute |
| Resolution indication | 1 second |
| Live circuit warning | Warning range | 30 V to 660 V AC/DC, 50/60 Hz |
| Voltage accuracy | ±(15% + 2 V) |
| Software specifications | FlukeView Forms™ basic software requires a PC running Windows XP,
Windows Vista , Windows 7 or Windows 8. |
| General Specifications |
| Display | 75 x 105 mm |
| Power | 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 |
| Charger Input (AC) | 85 V to 250 V AC 50/60 Hz 20 VA |
| This Class II (double insulated) instrument is supplied with a
Class 1 (grounded) power cord. The protective earth terminal
(ground pin) is not connected internally. The extra pin is for
added plug retention only. |
| Dimensions | 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in) |
| Weight | 3.7 kg (8.2 lb) |
| Temperature (operating) | -20°C to 50°C (-4°F to 122°F) |
| Temperature (storage) | -20°C to 65°C (-4°F to 149°F) |
| Humidity | 80% to 31°C decreasing linearly to 50% at 50°C |
| Altitude | 2000 m |
| Enclosure sealing | IP40 |
| Input overload protection | 1000 V AC |
| Electromagnetic compatibility | EN 61326 |
| Safety compliance | IEC 61010-1: Overvoltage category II, Pollution Degree 2.
IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III
IEC 61557-1, IEC 61557-2 |

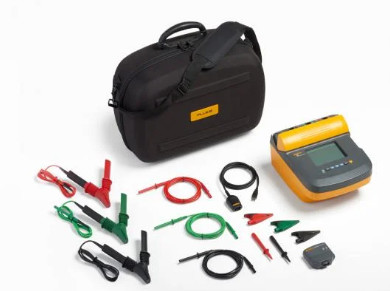

Models: Fluke 1555/Kit
Fluke 1555 10 kV Insulation Tester Kit
- Test Cables with Alligator Clips (red, black, green)
- Infrared adapter with interface cable
- AC Power Cord
- Quick Reference Card
- USB-IR Cable Installation Guide
- IP67 Hard Case
- Certificate of Calibration
- Heavy Duty Alligator Clip Leads
