Keysight Agilent E8663D PSG RF Analog Signal Generator 100 kHz to 9
GHz
Description of Keysight Agilent E8663D
The E8663D is a high-performance analog signal generator with high
output power, low phase noise, and tunes over a frequency range
from 100 kHz to 9 GHz for radar systems, satellite evaluation, and
when a low noise local oscillator is required.
Overview and Features of E8663D PSG RF Analog Signal Generator
Get the industry’s lowest phase noise in a commercially-available
signal generator.
- Tackle demanding radar and satellite communications measurements
with metrology-grade performance, including high output power and
superior level accuracy
- Use as an ideal reference in phase noise test systems or for
analog-to-digital converter testing with the lowest phase noise in
a commercial source
- Characterize devices and circuits by adding AM, FM, ΦM, and pulse
modulation to your signal
- Improve existing test system performance. The E8663D is built on
the outstanding legacy of the 8663A and is fully code compatible
Signal Characteristics
- 100 kHz to 3.2 or 9 GHz with .001 Hz resolution
- -135 to +24 dBm typical output power with Option 1EU
- Industry's best SSB phase noise Option UNY
Modulation
- AM, FM, ØM, and pulse (may be simultaneously enabled)
- Typical 8 ns rise/fall times and 20 ns pulse width from 10 MHz to 9
GHz
- Dual internal function generators: sine, square, triangular, ramp,
and noise
Automation and Communication Interface
- 10BaseT LAN and GPIB
- SCPI and IVI-COM drivers
- Backwards compatible with the 8662A, 8663A and E8663B signal
generators
- Compatible with the E5500 and 3048A phase noise test systems
List of Options
| 007 | Analog ramp sweep |

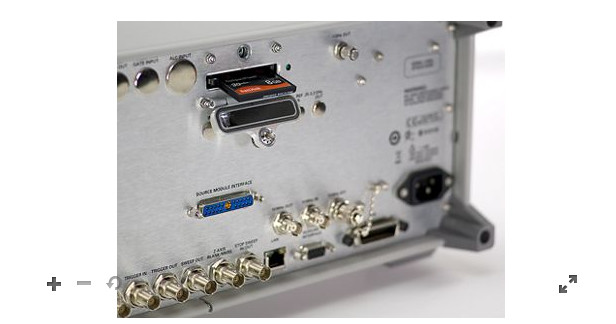

| 008 | Removable flash memory |
| 063 | E8663B backwards compatibility option bundle - 1EU, 1E1, 1EH, UNX,
UNT |
| 0BW | Printed Copy of the Assembly-Level Service Manual |
| 1A7 | PSG Series ISO 17025 compliant calibration with test data |
| 1CM | Rackmount flange kit |
| 1CN | Front handle kit |
| 1CP | Rackmount flange with front handle kit |
| 1E1 | Step attenuator |
| 1EH | Improved harmonics below 2 GHz |
| 1EM | Moves all front panel connectors to the rear panel |
| 1EU | High output power |
| 1SM | Scan modulation |
| 503 | Frequency range from 100 kHz to 3.2 GHz |
| 509 | Frequency range from 100 kHz to 9.0 GHz |
| A6J | PSG Series ANSI Z540 compliant calibration with test data |
| ABA | Printed Copy of the English Documentation Set |
| CD1 | CD-ROM Containing the English Documentation Set |
| HY2 | Enhanced ultra low phase noise level 2 |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-50C-011-5 | Agilent Calibration - 5 years |
| R-50C-016-3 | ISO 17025 Compliant Calibration - 3 years |
| R-50C-016-5 | ISO 17025 Compliant Calibration - 5 years |
| R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
| R-51B-001-3C | Return to Agilent Warranty - 3 years |
| R-51B-001-5C | Return to Agilent Warranty - 5 years |
| R-51B-001-C | Return to Agilent Warranty - 1 year |
| U01 | Firmware Enhancement- Adds internal channel flatness correction and
a new softkey for I/Q phase adjustment |
| UK6 | Commercial calibration certificate and test data |
| UNT | AM, FM, phase modulation, and LF output |
| UNU | Pulse modulation |
| UNW | Narrow pulse modulation |
| UNX | Ultra-low phase noise performance |
| UNY | Enhanced ultra low phase noise |
