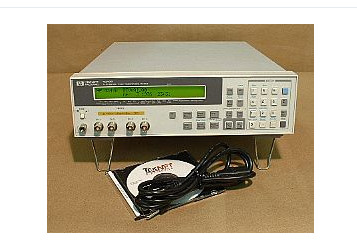

Keysight Agilent 4349B 4 Channel High Resistance Meter DC 9.5ms
Measurement
Description of Keysight Agilent 4349B
The 4349B offers simultaneous 4-channel high resistance
measurements for increased test throughput.
Overview and Features of 4349B 4 Channel High Resistance Meter DC
Measurement Time
- 9.5ms measurement
- Ideal for high volume capacitor testing
- DC Test Voltage: None supplied. Use external power supplies and
votage data entry for resitance measurements
- Fast contact checking: 2ms/point
- GPIB and Handler Interface
- Ideal for high volume capacitor testing
- DC Test Voltage: None supplied. Use external power supplies and
votage data entry for resitance measurements
Measurement conditions and functions
DC test voltage (4339B): 0 V to 1000 V, 0.1 V steps @ V ≤ 200V, 1.0
V steps @ V > 200 V DC test voltage (Agilent 4349B): None
supplied, use external power supplies and voltage data entry for
resistance measurements. Maximum of 5000 V input and 5 digit
numerical entry. Max current (Agilent 4339B): 10 mA @ ≤ 100 V, 5 mA
@ ≤ 250 V, 2 mA @ ≤ 500 V, 1 mA @ ≤ 1 kV Number of test channels:
4339B: 1 channel, 4349B: Option 4349B-700:4 ch Option 4349B-001:2
ch Ranging: Auto and hold Trigger: Internal, manual, and external
Delay time (trigger): 0 ms to 9999 ms in 1 ms steps Test cable
lengths: 2 meters maximum Measurement time (typical): 4339B: 10 ms
/ 30 ms / 390 ms 4349B: 9.5 ms / 28 ms / 98 ms /397ms
List of Options
| 001 | 2 Channels |
| 0B0 | Do not include manuals |
| 0B1 | Add Manual Set |
| 16117E | Low Noise Test Leads |
| 1A7 | ISO 17025 compliant calibration |
| 1BN | Military Standard 45662A Calibration Certification |
| 1BP | Military Standard 45662A Calibration with Test Data |
| 1CM | Rackmount kit |
| 1CN | Handle kit |
| 700 | 4 Channels |
| A6J | ANSI Z540 compliant calibration with test data |
| ABA | U.S. Quick Users Guide (English localization) |
| ABJ | Japan Quick Users Guide (Japanese localization) |
| ATO | 4-Channel High Resistance Meter |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-50C-011-5 | Agilent Calibration - 5 years |
| R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
| R-51B-001-3C | Return to Agilent Warranty - 3 years |
| R-51B-001-5C | Return to Agilent Warranty - 5 years |
| R-51B-001-C | Return to Agilent Warranty - 1 year |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
| UK6 | Commercial calibration with test results data |
