Keysight 4338B Agilent Milliohm Meter 1KHz AC Measurement 34MS

Ask Lasest Price
Brand Name :	Keysight (Agilent)
Model Number :	4338B
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	in stock

Add to Cart

Product Details
Company Profile

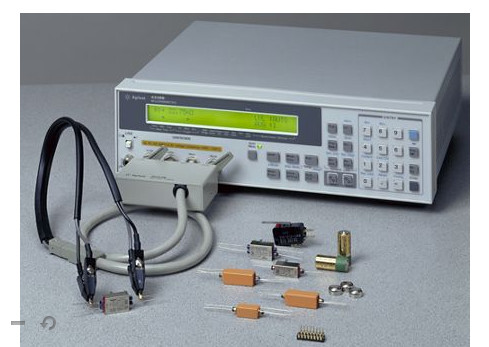

Keysight 4338B Agilent Milliohm Meter 1KHz AC Measurement 34MS

Keysight Agilent 4338B Milliohmmeter 1 KHz Ac Measurement 34 Ms

Description of Keysight Agilent 4338B

The HP 4338B milliohmmeter is a precise, reliable, high-speed test tool for measurements of low resistance. Contact failure of electromechanical components in a low-current circuit is a key issue for component reliability. The HP 4338B offers selectable low ac test signals(1uA to 10mA). Users can now characterize low resistances of electromechanical components under low-current conditions. A high resolution of 10uohm allows you to determine the slightest differences in contact resistance testing of relays, switches, connectors, PC board traces and cables. The 1kHz test signal eliminates potential errors introduced by thermoelectric effects on the device-under-test(DUT) contacts. The 1kHz test signal is the best solution to evaluate the internal resistance of batteries, because it avoids dc energy consumption.

Overview and Features of 4338B Milliohmmeter

Test current levels

Low and selectable test signal current: 1uA to 10 mA

Measurement Range / Time

Wide measurement range: 10u ohm to 100 k ohm
High-speed measurement: 34 ms

Frequency

1 kHz ac measurement

More Features

10u ohm resolution
Contact check function
Built-in comparator
Auto-measurement mode

List of Options

0B0	Do not include manuals
0B1	Add Manual Set
16006A	ACY TO OPT 16143B
16044A	SMD LCR Kelvin Contact Test Fixture
16143B	MATING CABLE (0.6m)
16338A	Test Lead Kit
1A7	ISO 17025 compliant calibration
1BN	Military Standard 45662A Calibration Certification
1BP	Military Standard 45662A Calibration with Test Data
1CM	Rack mount kit
1CN	Front handle kit
42030A	Four Terminal Pair Standard Resistor Set
42091A	Short Termination (4-Terminal Pair)
800	Standard milliohm meter
82357B	USB/GPIB Interface High-Speed USB 2.0
A6J	ANSI Z540 compliant calibration
AB0	Taiwan Quick Users Guide (Chinese localization)
AB1	Korea Quick Users Guide (Korean localization)
ABA	U.S. Quick Users Guide (English localization)
ABD	Germany Quick Users Guide (German localization)
ABF	France Quick Users Guide (French localization)
ABJ	Japan Quick Users Guide (Japanese localization)
ATO	Milliohm meter
E5810A	LAN/GPIB Gateway
R-50C-011-3	Agilent Calibration - 3 years
R-50C-011-5	Agilent Calibration - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C	Return to Agilent Warranty - 3 years
R-51B-001-5C	Return to Agilent Warranty - 5 years
R-51B-001-C	Return to Agilent Warranty - 1 year
RMKT	Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6	Commercial calibration with test results data
