• Wavelength range: 350 to 1200nm
• Wavelength accuracy: ±0.05 nm
• Wavelength resolution: 0.02 to 10 nm and 0.01nm (400 to 470nm)
• Max safe input power: +20 dBm
• Level sensitivity: -80 dBm
• Dynamic range: ≧60dB
• Single-mode, Multimode, and Large-core fibers
• Built-in optical alignment source
• Wavelength calibration with an external reference source
• Various analysis functions including the Color analysis function for VIS

Applications

• Optical active devices(Laser diode/Fiber laser)
• Optical passive devices(Filter/FBG/Specialty optical fiber)
• Development support of Applied photonics equipment
• Medical/Bio: Laser therapy, DNA sequencing, Microscope
• Industrial: Laser micro-machine, laser maker
• Home Electronics: Laser projector, Next-gen optical disc, LED products
• Measurement Sensing: LIDAR, Interferometer
• Telecom: Plastic Optical fiber (POF) communication

Excellent efficiency

• Fast SweepWith an advanced monochromator, faster electrical circuits, and noise reduction techniques, the AQ6373 achieves fast measurement speed even when measuring a steep spectrum from DFB-LD or DWDM signals, or when measuring a low power signal from a broadband light source.

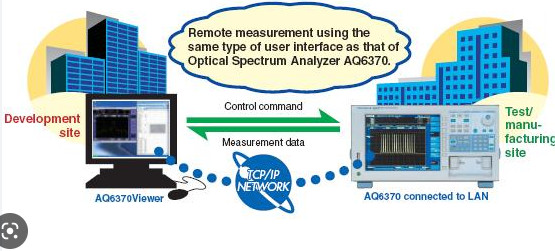

• Fast Remote Interface
  • AQ6373 provides faster remote control and data transfer capability.
  • 100x Ethernet interface is 100 times faster
  • 10x GP-IB interface is 10 times faster
  • (compared with the conventional GP-IB used on Yokogawa AQ6317 series Optical Spectrum Analyzer)

• Wide Span Sweep yet High Resolution
  • The 50,001 data sampling points expands measurement range in a single sweep while keeping a high wavelength resolution. This makes your measurements easier and more efficient than conventional systems that use a low number of sampling points and require multiple partial measurements to cover the complete wavelength range.

​
