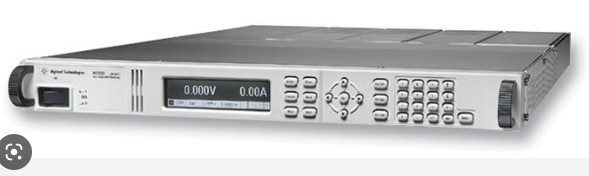

Keysight Agilent N6701A DC Power SupplyLow Profile MPS Mainframe
600W 4 Slot Programmable
Description of Keysight Agilent N6701A

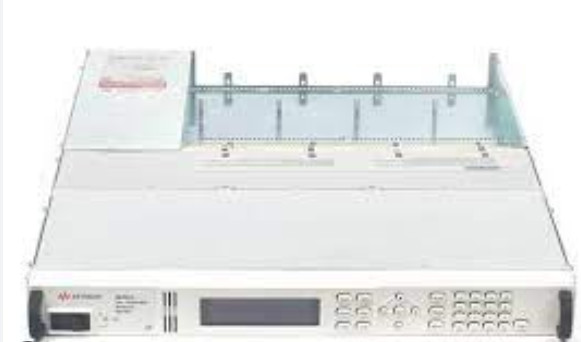

The Agilent N6701A is a 600 W 1U high, 4-slot modular power system
mainframe that accepts from 1 to 4 N6700 series DC power modules in
any combination. Modules are ordered separately. The N6700B offers
GPIB, LAN, and USB, interfaces standard, and LXI Class C
compliance. Select from more than 20 different DC power modules,
ranging in capability from basic to high precision, and in power
from 20 - 300 W
Maximum total output power (= Sum of Total Module Output Power)
- 600 W when operating from 100 - 240 VAC input
AC input
- Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz
- Input Range: 86 VAC - 264 VAC
- Power Consumption: 1500 VA typical
- Fuse Internal fuse (not customer accessible)
Protection response characteristics
- INH input: 5 µs from receipt of inhibit to start of shutdown
- Fault on coupled outputs: < 10 µs (from receipt of fault to
start of shutdown)
List of Options
| 0B0 | Do not include manuals |
| 0L1 | English Printed Manual Set (full documentation on CD-ROM) |
| 908 | Rack Mount Kit, P/N N6700-60001 |
| FLR | Filler Tray Support |
| FLR | FILLER PANEL KIT |
| N6700B-FLR | Filler Panel Kit for Low-Profile Modular Power System Mainframes -
3 panels |
| N6708A | Filler Panel |
| N6709A | Low-Profile MPS Mainframe Rack Mount Kit |
| PLG | Continental European power cord - only for EU DISTR W MULT PWR CORD
standards |
| R-51B-001-C | Return to Agilent Warranty - 1 year |
