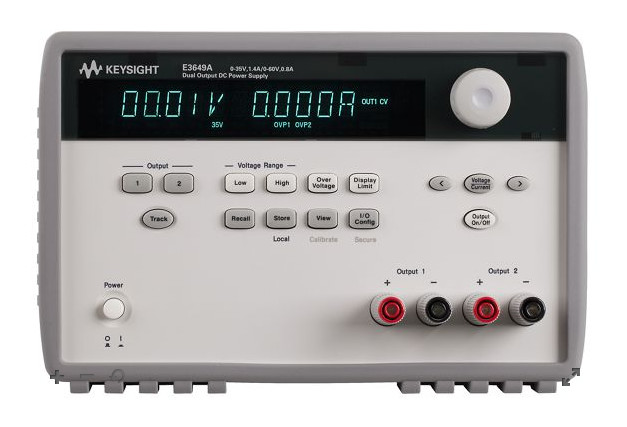

Keysight Agilent E3649A DC Power Supply 60 V/0.8 A 35 V/1.4 A 100 W Dual Output Programmable

Description of Keysight Agilent E3649A

• Agilent basic DC power supplies offer essential features for a tight budget. The single output, 120-200 W, GPIB, E3632A-E3634A provide dual range outputs; small, compact size for bench use; low output ripple and noise; as well as built-in measurements and basic programmable features with GPIB and RS232 interface. The Agilent 200W, GPIB, single output E3633A is a high performance supply optimized for manual and basic automated testing; and, with a combination of benchtop capabilities and system features, it is designed to help improve measurement quality and reduce test time.

Highlights of E3649A DC Power Supply

• The E3649A 100 W dual-output bench power supply offers dual-range flexibility with a low and high voltage range. The low voltage range allows the power supply to output more current. The E3640 Series has models with single and dual outputs. Automate tests with GPIB or RS232.

Output Ratings

• Range 1: 0 to 35 V, 1.4 A
• Range 2: 60 V, 0.8 A

Programming Accuracy at 25°C ±5°C

• Voltage: 0.05% + 10 mV
• Current: 0.2% +10 mA

Ripple & Noise (20 Hz to 20 MHz)

• Normal-mode voltage: <8mVpp/1 mVrms
• Normal-mode current: <4 mA rms
• Common-mode current: <1.5 µA rms

Readback Accuracy at 25°C ±5°C

• Voltage: 0.05% + 5 mV(<0.1% + 25 mV for output 2 of E3646/47/48/49A)
• Current: 0.15% + 5 mA(<0.15% + 10 mA for output 2 of E3646/47/48/49A)

List of Options
