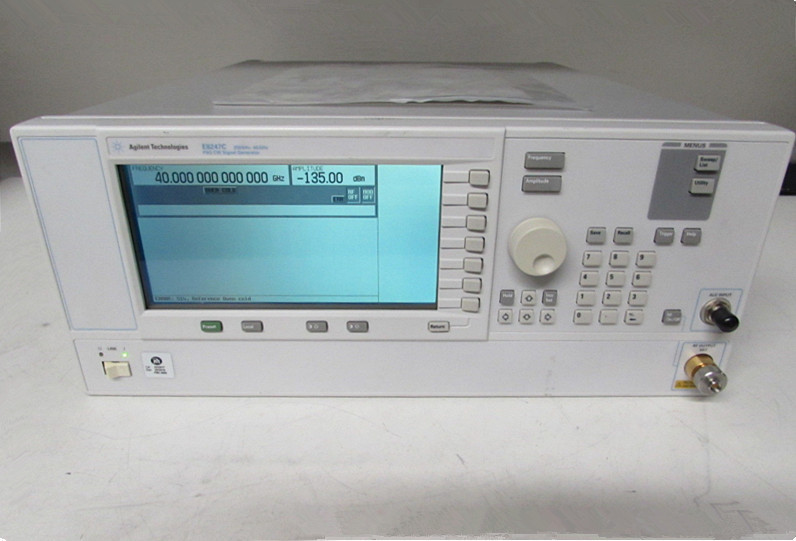

Keysight Agilent E8247C PSG CW Signal Generator Up To 40 GHz
Description of Keysight Agilent E8247C
Low phase noise and high power CW signals
Providing premium performance at an affordable price, the E8247C
PSG CW signal generator delivers industry-leading output power,
superior level accuracy, and low phase noise for local oscillator
and low jitter clock substitution and interference signal
generation. It typically eliminates the need of an external
amplifier for testing high power devices and minimizes test
uncertainty to identify errors early in the design process and
reduce development time. The PSG features advanced capability,
including ramp sweep for continuous sweep measurements and fully
automated use with the Keysight 8757D scalar network analyzer.
Modular architecture to meet your test requirements
Customize the PSG for RF and microwave test applications ranging
from LO substitution and clock replacement to general-purpose
troubleshooting and interference signal generation. A variety of
optional performance enhancements and accessories are available.
Its modular architecture makes it easy to configure the PSG to
address your specific test application, providing the level of
performance you need today and the option to upgrade in the future.
Overview and Features of E8247C PSG CW Signal Generator
- Broad frequency range - 250 kHz to 20 GHz or 40 GHz with .001 Hz
resolution
- High output power - typical performance up to +16 dBm standard and
up to +24 dBm optional at 20 GHz with excellent level accuracy
- Optional SSB close-in phase noise - typically over 30 dBc/Hz
improvement at 1 kHz offset from carrier
- Convenient sweep modes - analog ramp sweep, digital step sweep, and
list sweep
- High rate analog ramp sweep - features code compatibility with the
Keysight 8757D scalar network analyzer
- Easy frequency extension - up to 110 GHz with Keysight's 83550
Series mm-wave modules
List of Options
| 007 | Ramp Analog Sweep |
| 0BV | Service Documentation, Component Level |
| 0BW | Service Documentation, Assembly Level |
| 1CM | Rackmount Kit |
| 1CN | Handle Kit |
| 1CP | Rackmount and Handle Kit |
| 1E1 | Add step attenuator |
| 1EA | High RF output power |
| 1ED | Type-N RF output connector |
| 1EM | Moves all front panel connectors to rear panel |
| 520 | 250 KHz - 20 GHz |
| 540 | 250kHz to 40 GHz |
| 724 | PSG calibration software |
| 730 | Chassis combo option for E8247C (UNM+UNP) |
| 731 | Chassis combo option for E8247C (UNM+UNR) |
| 732 | Chassis combo option for E8247C (1EM+UNP) |
| 733 | Chassis combo option for E8247C (1EM+UNR) |
| AB1 | Korea Quick Users Guide (Korean localization) |
| AB2 | China Quick Users Guide (Chinese localization) |
| ABA | U.S. Quick Users Guide (English localization) |
| ABD | Germany Quick Users Guide (German localization) |
| ABE | Spain Quick Users Guide (Spanish localization) |
| ABF | France Quick Users Guide (French localization) |
| ABJ | Japan Quick Users Guide (Japanese localization) |
| ABZ | Italy Quick Users Guide (Italian localization) |
| CD1 | CD-ROM - English documentation set |
| H30 | RF upconverter |
| H31 | Limits upper frequency to 31.8 GHz intended for China |
| H36 | Improve harmonics and subharmonics performance for freq from 10MHz
to 26.5GHz |
| HA7 | Provides plots of phase noise at 16GHz and 18GHz, and plot of 2nd
harmonics |
| HCC | Provides 250MHz - 10GHz in and out on the rear panel |
| HEH | Improve low band harmonics (10 MHz to 3.2 GHz) reduces output power
by 3 dB |
| R-51B-001-3C | 1 year Return-to-Agilent warranty extended to 3 years |
| R51B/36 | 36 Month Return to Agilent Warranty Service Plan |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
| UK6 | Commercial calibration with test results data |
| UN5 | Standard output power |
| UNC | Standard connector ( 3.5 mm ) |
| UNM | Standard Front and Rear Panel Connector Configuration |
| UNN | No step attenuator |
| UNP | Standard spectral purity |
| UNR | Enhanced phase noise |
