Signal Analysis will never be the same again

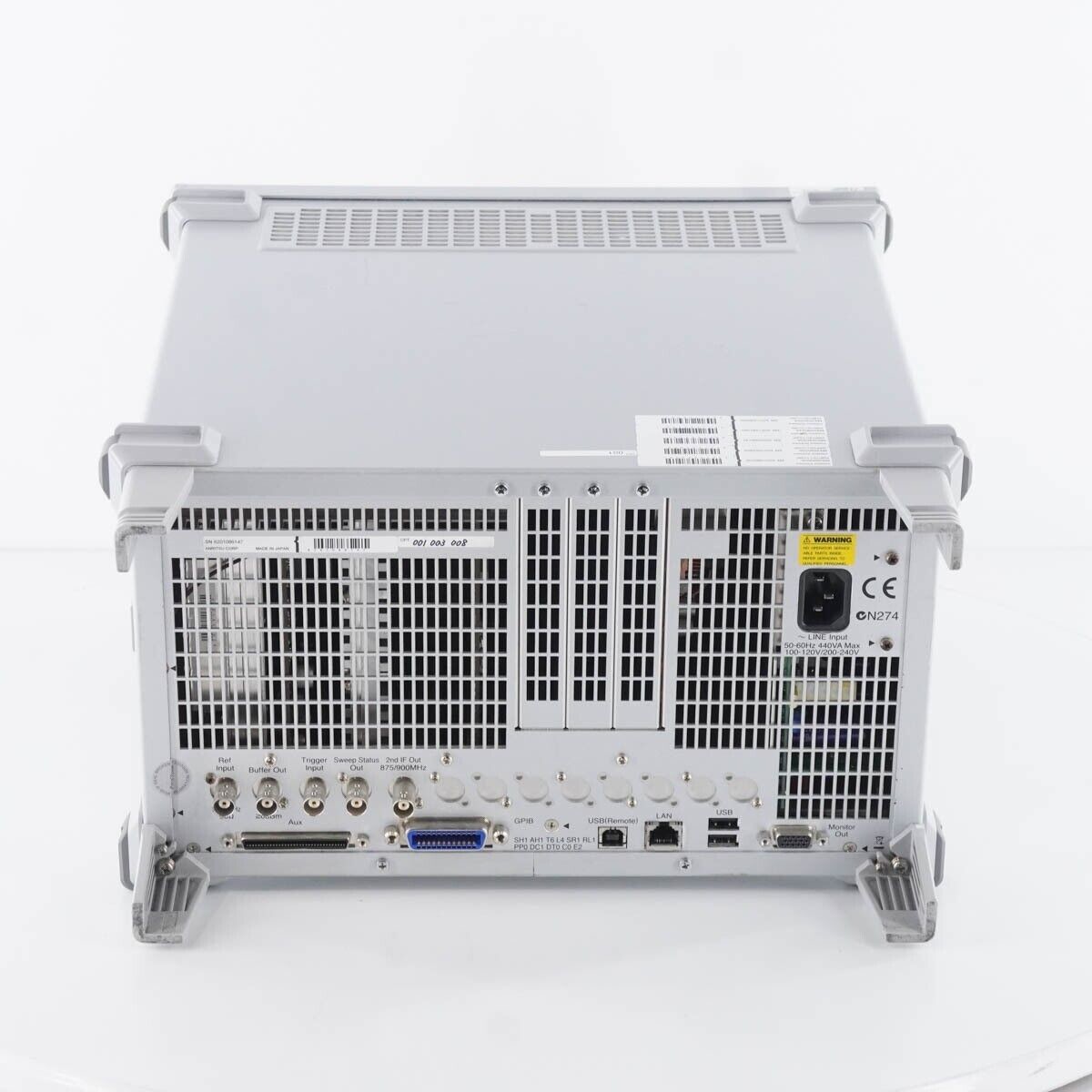

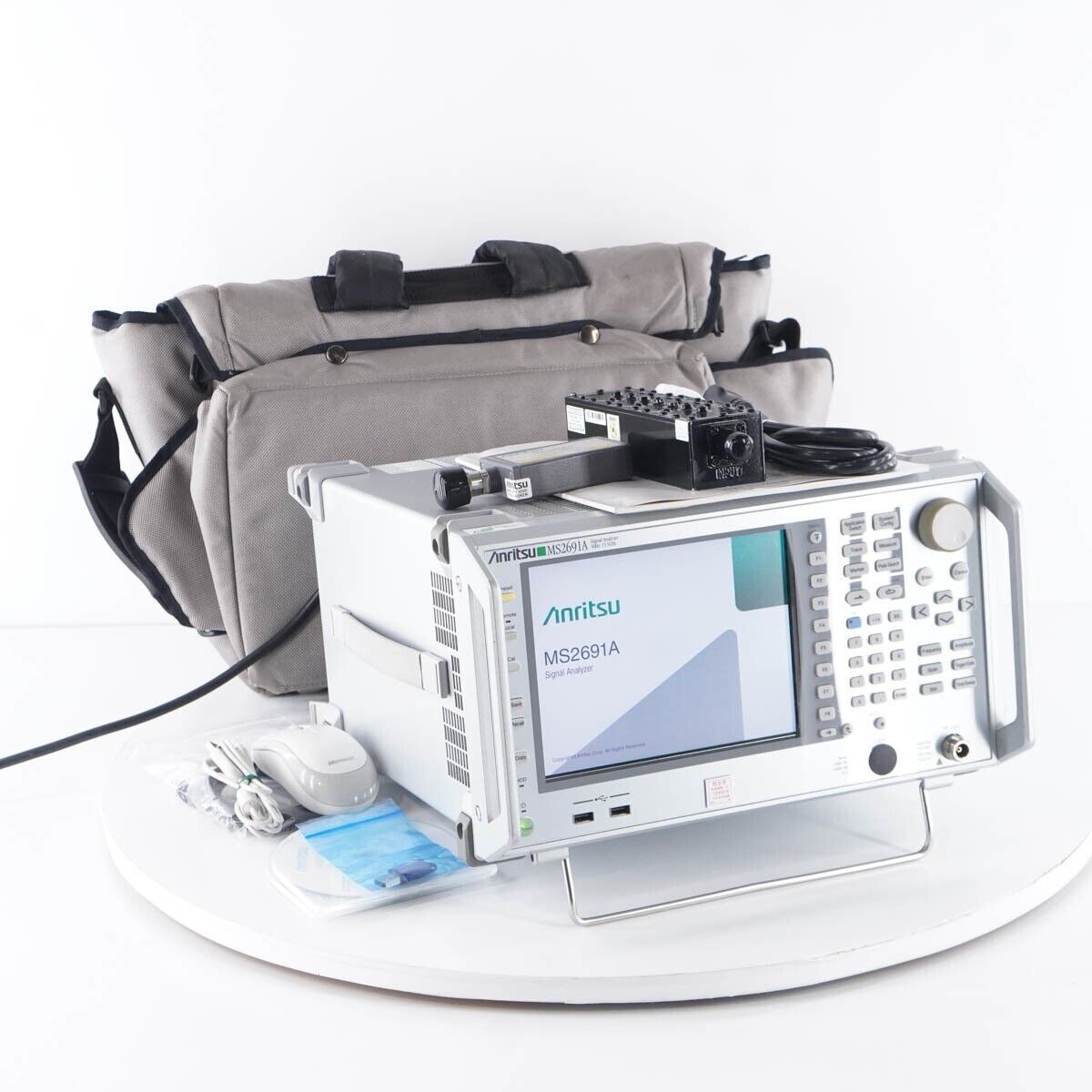

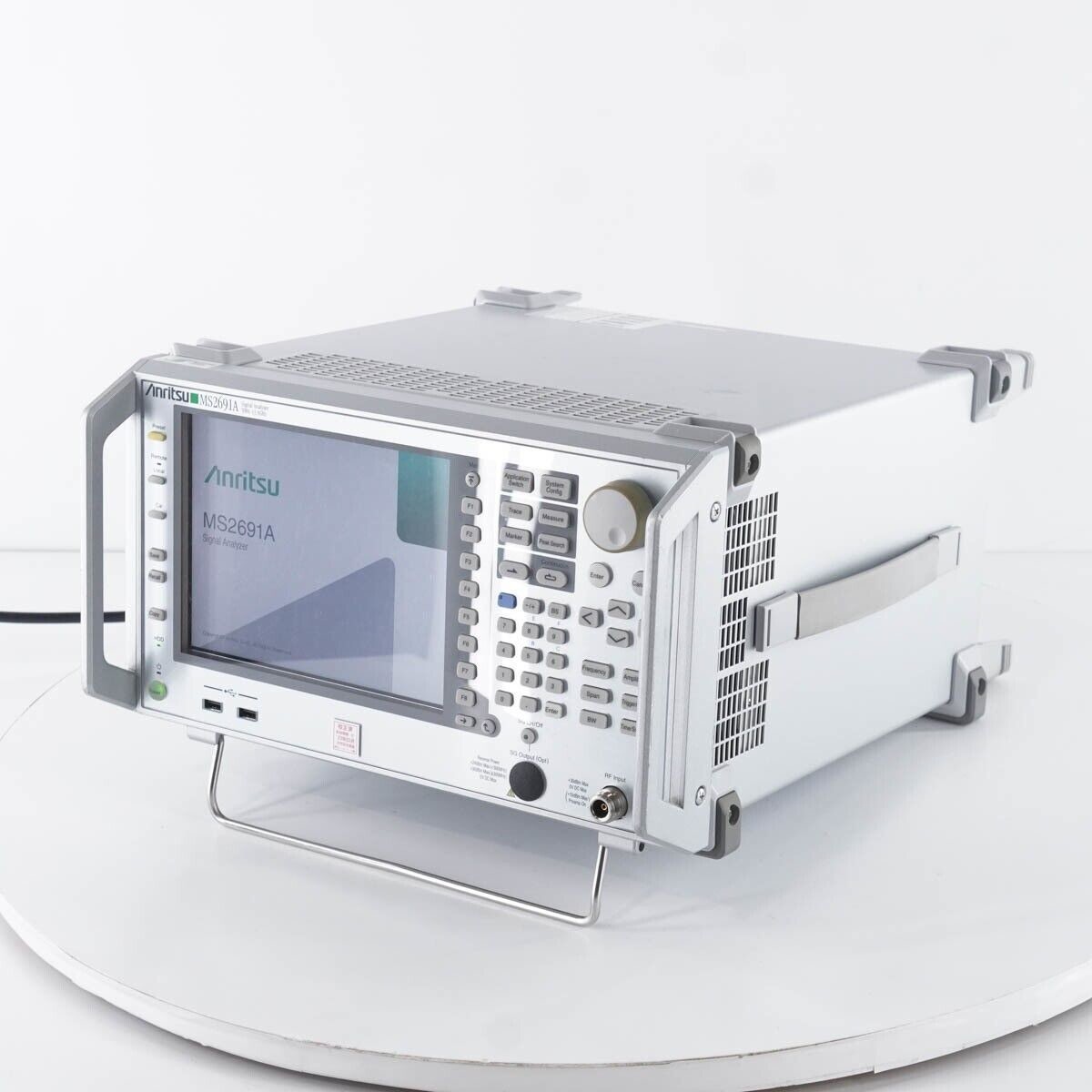

MS269xA Series Signal Analyzers are the latest high performance
signal analyzers for next-generation communication applications.
The MS269xA Series Signal Analyzer base units include swept
spectrum analysis, FFT signal analysis, and a precision digitizer
function. Add options to incorporate a Signal Generator, to turn
the instrument into a hassle free, plug and play, one box solution.
The MS269xA Series Signal Analyzers support a standard analysis
bandwidth of 31.25 MHz that can be extended to 62.5 MHz /125 MHz
with optional hardware. Using a patented calibration process, the
multipoint amplitude calibration and the phase calibration result
in a level accuracy of ±0.5 dB across a 6 GHz span. No other
analyzer on the market can meet that specification! These boxes are
superlative in every way -- they measure the widest signals and
using the latest technology, make measurements faster than ever
before. The modular architecture ensures a box that grows as
measurement requirements change.
A series of options enables standards-based modulation analysis,
vector signal generation, and BER measurement. The end-user can
configure a one-box solution that dramatically reduces cost,
footprint, and Total Average Cycle Time (TACT) for device
evaluation.
The MS269xA Series Signal Analyzers are accurate enough for the
most demanding R&D environment, yet are fast enough for the
factory floor! Currently supported applications include GSM, GPRS,
EDGE, W-CDMA, and LTE.
The wideband FFT signal analyzer (analysis bandwidth of 31.25 MHz
with option for 62.5 MHz /125 MHz) supports high-speed continuous
measurements including CCDF, frequency vs. time, spectrum, and
power vs. time analysis. The standard digitizing function can
capture waveforms and immediately play them out using the optional
Signal Generator. An extended digitizer option adds the ability to
capture signals up to 20 MHz wide for up to 4 hours.
List of Options
| Communication system | Applicable software |
|---|
| Basic Digital Signal Analysis | Vector Modulation Analysis Software |
| 5G NR (TDD) (UPDATED) | 5G NR TDD sub-6GHz Downlink Measurement Software
5G NR TDD sub-6GHz Uplink Measurement Software |
| LTE/LTE-Advanced (FDD) | LTE Downlink Measurement Software
LTE-Advanced FDD Downlink Measurement Software
LTE Uplink Measurement Software
LTE-Advanced FDD Uplink Measurement Software
LTE IQproducer
LTE-Advanced FDD Option |
| LTE/LTE-Advanced (TDD) | LTE TDD Downlink Measurement Software
LTE-Advanced TDD Downlink Measurement Software
LTE TDD Uplink Measurement Software
LTE-Advanced TDD Uplink Measurement Software
LTE TDD IQproducer
LTE-Advanced TDD Option |
GSM/EDGE
W-CDMA/HSPA/HSPA Evolution | GSM/EDGE Measurement Software
EDGE Evolution Measurement Software
W-CDMA/HSPA Downlink Measurement Software
W-CDMA/HSPA Uplink Measurement Software
HSDPA/HSUPA IQproducer |
| W-CDMA BTS | W-CDMA BS Measurement Software |
| CDMA2000/1xEV-DO | EV-DO Forward Link Measurement Software
All Measure Function
CDMA2000 Forward Link Measurement Software
All Measure Function |
| TD-SCDMA | TD-SCDMA Measurement Software |
| WLAN | WLAN (802.11) Measurement Software
802.11ac (160 MHz) Measurement Software
WLAN IQproducer
802.11ac (80 MHz) Option |
| TDMA type (PHS, ETC/DSRC, Digital LMR etc.) | TDMA IQproducer |
| ETC/DSRC | ETC/DSRC Measurement Software |
| Composite Waveforms for Signal Generator Option | Multi-Carrier IQproducer |
| Hardware Options | Remarks |
|---|
| Rubidium Reference Oscillator | Aging rate ±1 × 10-10/month |
| Wideband Analysis Hardware | Extends the Analysis Bandwidth to 125 MHz |
| Analysis Bandwidth Extension | Extends the Analysis Bandwidth to 62.5 MHz / 125 MHz |
| 6 GHz Preamplifier | 100 kHz to 6 GHz |
| Vector Signal Generator | 125 MHz to 6 GHz |
| Extension of Preselector Lower Limit to 3 GHz | Extends lower limit of pre-selector to 3 GHz |
| Noise Figure Measurement Function | Y-factor method using a Noise Source |
Applications:
- BTS and UE transmitter testing
- Receiver testing with the Signal Generator option
- High-performance for R&D
- High-speed for manufacturing
- General Purpose analysis for modulation R&D
- 5G NR (sub-6 GHz)
- LTE/LTE-Advanced (FDD/TDD), EDGE Evolution, and HSPA Evolution
- WLAN testing including IEEE802.11a/b/g/j/n/p/ac
- Power amplifier testing
- Satellite Communications
- Physical layer Testing for all 3GPP technologies
