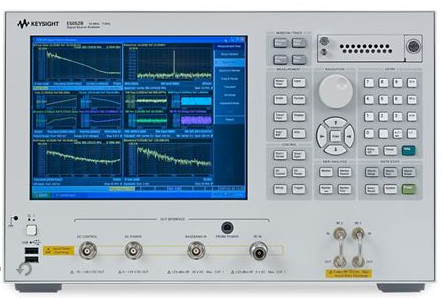

E5052B Signal Source Analyzer (SSA) 10 MHz To 7 GHz 26.5 GHz Or 110
GHz
Description of E5052B Signal Source Analyzer
Definitions
All specifications apply over a 23 °C ± 5 °C range (unless
otherwise stated) and 30 minutes after the instrument has been
turned on. All specified and supplemental values for RF input
signals are applicable to sinusoidal-wave carriers unless otherwise
noted.
Specification (spec.) Warranted performance. Specifications include
guard-bands to account for the expected statistical performance
distribution, measurement uncertainties, and changes in performance
due to environmental conditions. Following supplemental information
is intended to provide information that is helpful for using the
instrument.
Typical (typ.) Describes performance that will be met by a minimum
of 80% of all products.
Supplemental performance data (SPD) Represents the value of a
parameter that is most likely to occur; the expected mean or
average.
General characteristics or nominal (nom.) A general, descriptive
term that does not imply a level of performance.

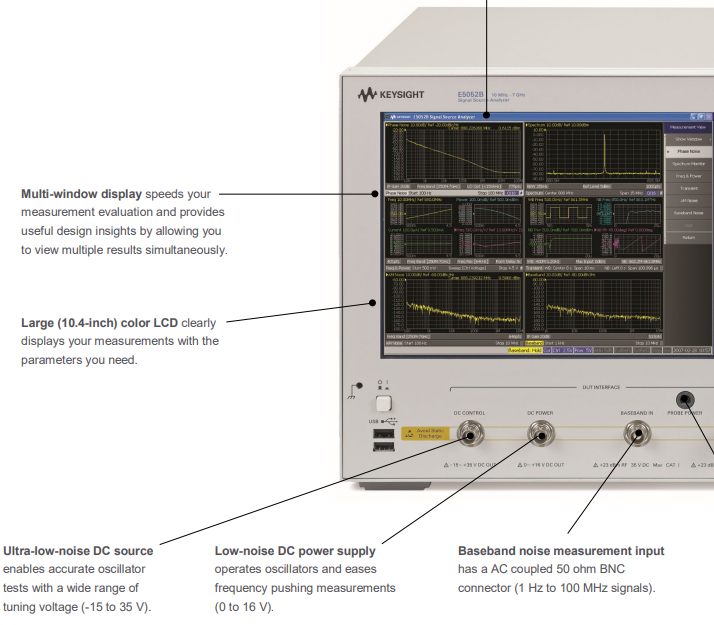

The E5052B 10 MHz to 7 GHz Signal Source Analyzer features a number
of enhanced performance characteristics, partially shown in the key
features above. And it offers world's highest measurement
throughput and best usability in characterizing VCO or other types
of high frequency signal sources, as well as clock jitter
evaluation in high-speed data communication systems.
E5052B's frequency range can be extended up to 26.5 GHz with the
E5053A, and up to 110 GHz with the E5053A plus Agilent 11970 series
mixers.
The E5052B SSA is suitable for use in a wide range of applications
including RF/uW/mmW oscillators, VCO's, system reference clocks,
LAN modules, high-speed timing modules, SerDes chips, and
high-speed data converters (ADC/DAC).
OPTIONS
| E5052B-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) | US$ 771 |
| E5052B-A6J | ANSI Z540-1-1994 Calibration | US$ 771 |
| E5052B-011 | Delete freq and power sweep function and limit correlation number
and offset freq | US$ -29,353 |
| E5052B-1CM | Rackmount kit | US$ 154 |
| E5052B-1CN | Front handle kit | US$ 154 |
| E5052B-1CP | Handle/rack mount kit | US$ 186 |
| E5052B-810 | Add keyboard | US$ 157 |
| E5052B-820 | Add mouse | US$ 93 |
