Multiscene Fluke 5700A Multifunction Calibrator Durable 600 MHz

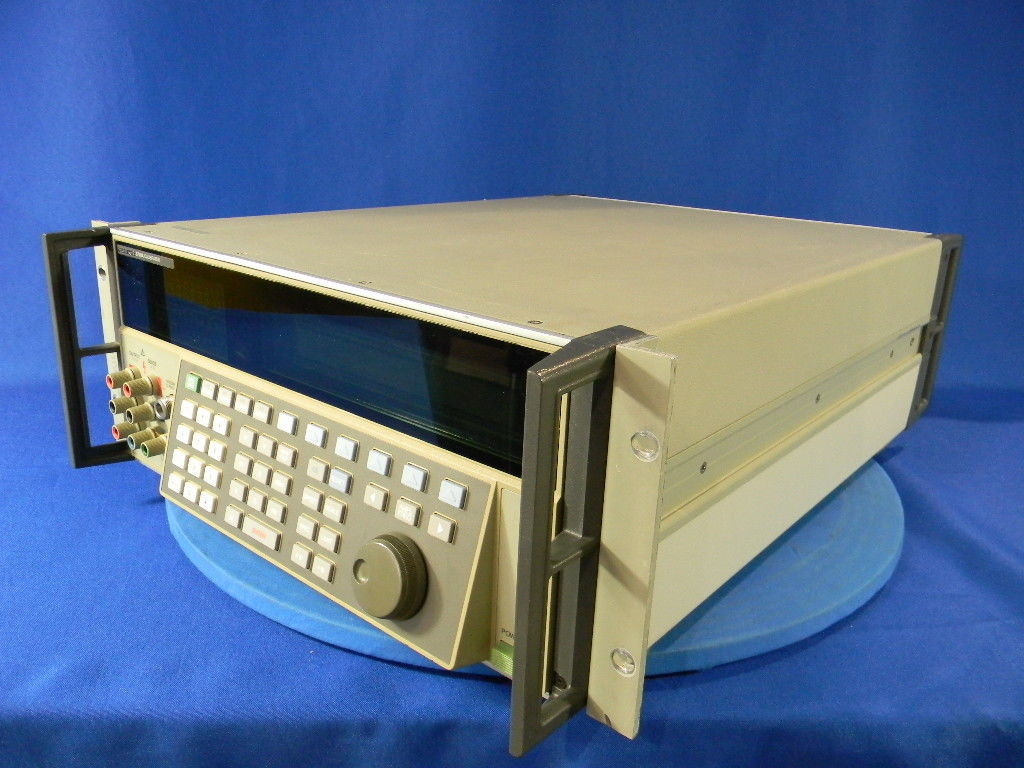

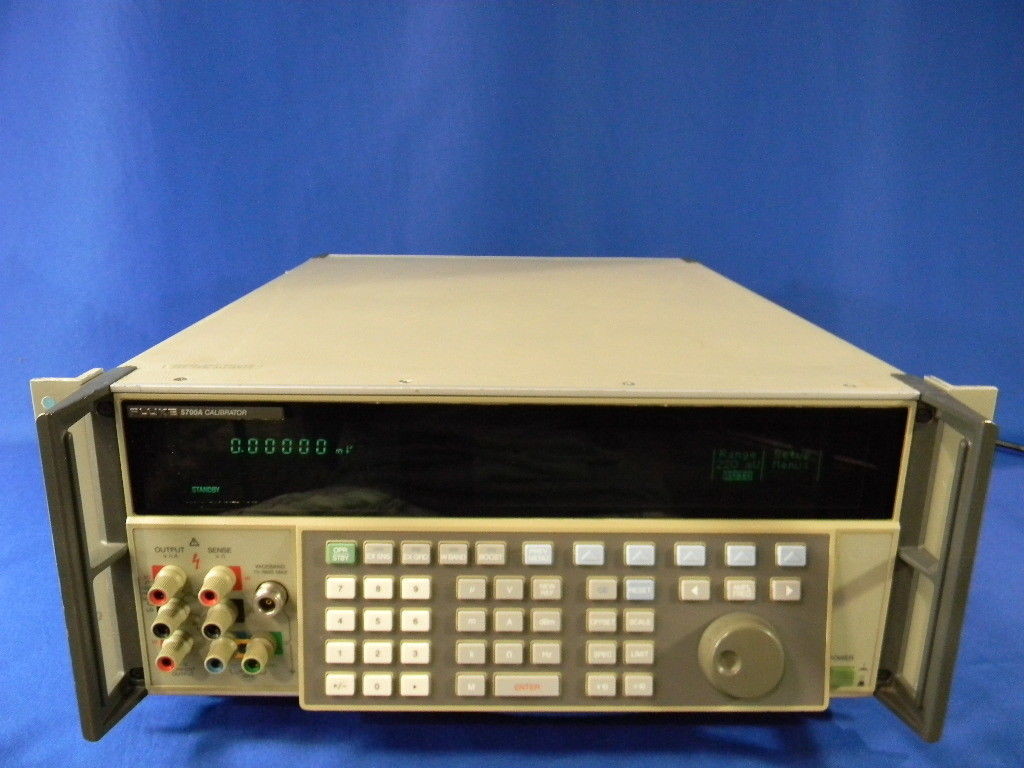

Fluke 5700A High Performance Multi-product Calibrator

Description of Fluke 5700A Multi Product Calibrator

The 5700A is a five-function calibrator designed to address the most demanding electrical calibration workload. They source direct and alternating voltage and current and resistance. A wideband voltage option extends overall ac bandwidth to 10 Hz to 30 MHz. Both are compatible with the 5725A, and 5205A/5215A amplifiers. Since its introduction in 1988, the 5700A has earned a worldwide reputation for performance, dependability and quality, and as a result it is the calibrator of choice throughout government and industry.

DC Voltage

Ranges: 0 to ±1100V
5700A Best 1 Year Specification: ±7.0 ppm of setting

AC Voltage Ranges:

220 mV to 1100V
10 Hz to 1 MHz
5700A Best 1 Year Specification: ±75.0 ppm of setting

Resistance Ranges:

0 to 100 MW, 18 values in x1 and x1.9
5700A Best 1 Year Specification: ±12.0 ppm

DC Current Ranges:

0 to Û2.2A (11A with 5725A)
5700A Best 1 Year Specification: Û50 ppm of setting

AC Current Ranges:

9 mA to 2.2A (11A with 5725A) 10 Hz to 10 kHz
5700A Best 1 Year Specification: ±140 ppm of setting

Technical Specifications

Voltage DC

Range:	0 to ±1100V
5700A Best 1 Year Specification:	±7.0 ppm of setting
5720A Best 1 Year Specification:	±3.5 ppm of setting

Voltage AC

Range:	0.22 µV to 1100V
	10 Hz to 1 MHz
5700A Best 1 Year Specification:	±75.0 ppm of setting
5720A Best 1 Year Specification:	±45.0 ppm of setting

Resistance

Range:	0 to 100 MΩ, 18 values in x1 and x1.9
5700A Best 1 Year Specification:	±12.0 ppm
5720A Best 1 Year Specification:	±8.5 ppm

Current DC

Range:	0 to ±2.2A (11A with 5725A)
5700A Best 1 Year Specification:	±50 ppm of setting
5720A Best 1 Year Specification:	±35 ppm of setting

Current AC

Range:	9 µA to 2.2A (11A with 5725A) 10 Hz to 10 kHz
5700A Best 1 Year Specification:	±140 ppm of setting
5720A Best 1 Year Specification:	±120 ppm of setting

Wideband AC Voltage Option

Range:	300 µV to 3.5V
	10 Hz to 30 MHz
5700A Best 1 Year Specification:	±0.4% of setting
5720A Best 1 Year Specification:	±0.4% of setting

General Specifications

Warm up Time

2x the time since last warmed up, to a maximum of 30 minutes

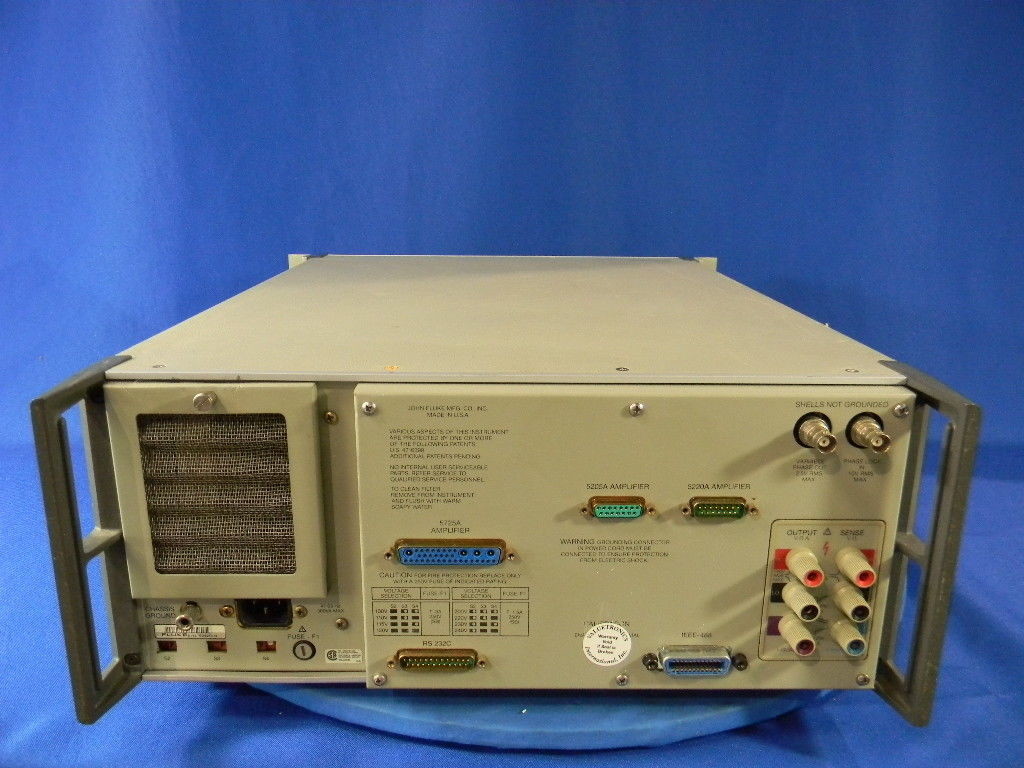

System Installation

Rear output configuration and rack-mount kit available

Interfaces

IEEE-488, RS-232, 5725A, 5205A or 5215A, 5220A, phase lock in (BNC), phase reference out (BNC)

Temperature Performance

Operating:	0°C to 50°C
Calibration:	15°C to 35°C
Storage:	-40°C to 75°C

Relative Humidity

Operating:	< 80% to 30°C, < 70% to 40°C, < 40% to 50°C
Storage:	< 95%, non-condensing. A power-on stabilization period of four days may be required after extended storage at high temperature and humidity.

Safety

Designed to comply with UL311; IEC 348-1978; IEC 66E (CO)4; CSA 556B

Guard isolation

20 volts

EMI/RFI

Designed to comply with FCC Rules Part 15, Subpart J, Class B; VDE 0871, Class B

Line Power

	47 to 63 Hz; + 10% allowed about selectable nominal line voltage: 100V, 110V, 115V, 120V, 200V, 220V, 230V, 240V
	--------------
Maximum power:	5700A/5720A: 300 VA;5725A, 750 VA

Calibration Documentation

17025 accredited report of calibration included

Size

5700A/5720A:	Height 17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet; width 43.2 cm (17 in), standard rack width; depth 63.0 cm (24.8 in) overall; 57.8 cm (22.7 in), rack depth
5725A:	Height 13.3 cm (5.25 in); width and depth same as 5700A/5720A
	Both units project 5.2 cm, (2 in) from rack front

Weight

5700A/5720A:	27 kg (62 lbs.)
5725A:	32 kg (70 lbs.)

List of Options

Options
03	Wideband AC Voltage Module
EP	UPGRADED FROM A 5700A
NAF-03	NAF version with 03 wideband AC Voltage

Multiscene Fluke 5700A Multifunction Calibrator Durable 600 MHz
