Additional Features:
- Voltage DC Range: 0 to ±1020V
- Current DC Range: 0 to ±20.5A
- Resistance Range: 0 to 1100 MΩ
- Voltage AC Range: 1 mV to 1020V; 10 Hz to 500 kHz, Sine
- Current AC Range: 29 mA to 20.5A; 10 Hz to 30 kHz, Sine
- Capacitance Range: 0.19 nF to 110 mF
- Thermocouple Source and Measure Range: -250°C to +2316°C (11 types)
- RTD Source Range: -200°C to +630°C (8 types)
- DC Power Range: 10.9 mW to 20.5 kW
- AC Power Range: 10.9 mW to 20.5 kW; 45-65 Hz, PF=1
- Phase Range: 0 to ± 179.99°; 10 Hz to 30 kHz
- Frequency Range: 0.01 Hz to 2.0 MHz
- Power Consumption: 600 VA
General Specifications
- Warm up Time: Twice the time since last warmed up, to a maximum of
30 minutes
- Settling Time: Less than 5 seconds for all functions and ranges
except as noted
- Standard Interfaces: IEEE-488 (GPIB), RS-232
- Safety: 12,200m (40,000 ft) maximum
- Analog Low Isolation: 20V
- EMC: Designed to comply with IEC 61326-1/1997
Temperature Performance
- Operating: 0°C to 50°C
- Calibration (tcal): 15°C to 35°C
- Storage: -20°C to 70°C
- Temperature Coefficient: Temperature coefficient for temperatures
outside tcal ± 5°C is 10% of the 90-day specification (or 1-year,
as applicable) per °C
Relative Humidity
- Operating: <80% to 30°C, <70% to 40°C, <40% to 50°C
- Storage: <95%, non-condensing
Altitude
- Operating: 3,050m (10,000 ft) maximum
- Non-operating: 12,200m (40,000 ft) maximum
Line Power
- Line Voltage (selectable): 100V, 120V, 220V, 240V
- Line Frequency: 47 to 63 Hz
- Line Voltage Variation: + 10% about line voltage setting
Dimensions
- Height: 17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6
in) for feet on bottom of unit
- Width: 43.2 cm (17 in), standard rack width
- Depth: 47.3 cm (18.6 in) overall
Applications
- Thermocouple and RTD thermometers
- Process calibrators
- Data loggers
- Strip and chart recorders
- Watt meters
- Power harmonics analyzers
- Current clamps and clamp meters
- Analog or digital handheld and bench oscilloscopes (with options)
- Panel meters
- Graphical multimeters Power meters, disturbance analyzers, power
quality monitors, recorders and other power quality related
equipment (with option)

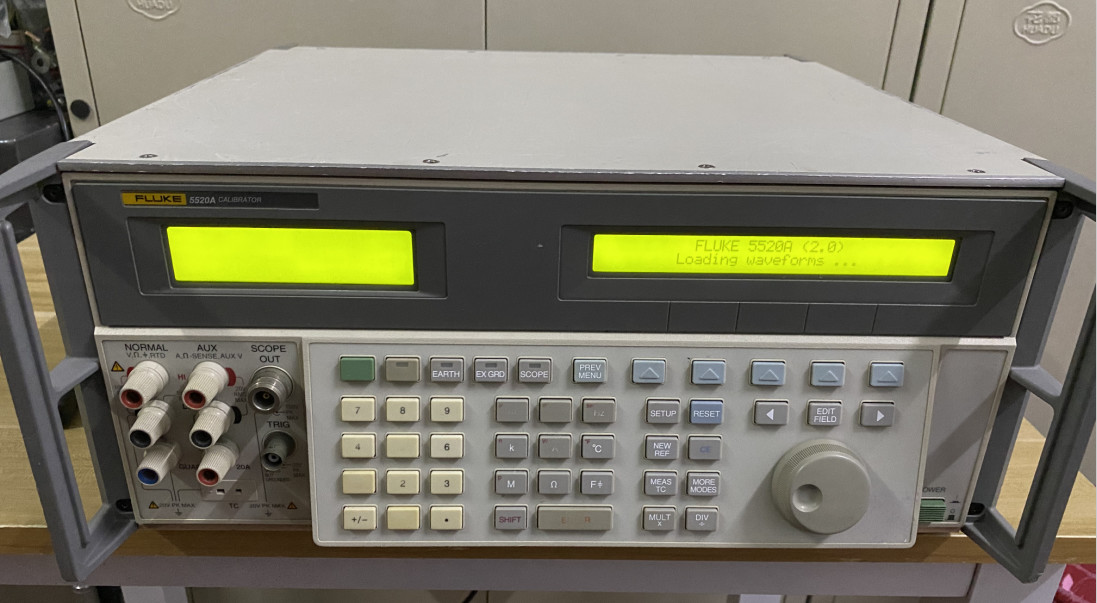

The Fluke 5520A Multi-Product Calibrator sources direct voltage and
current, alternating voltage and current with multiple waveforms
and harmonics, two simultaneous voltage outputs or voltage and
current to simulate DC and AC power with phase control, resistance,
capacitance, thermocouples and RTDs.
The 5520A can also measure thermocouple temperature, humidity (with
probe) and pressure using one of 28 Fluke 700 Series pressure
modules.
The Fluke 5520A builds on the 5500A's capabilities, extending its
workload coverage even further. Its improved accuracy, expanded
ranges, and capability to calibrate 5-1/2 and 6-1/2 digit
multimeters can cover virtually all your high-performance workload.
List of Options
| 06 | bit serial asynchronous interface (RS-232-C) |
| 1613006 | 3YR CAL & REPAIR |
| 525A/LEADS | THERMOCOUPLE AND TEST LEADS |
| 5500/CAL-L | LICENSE FOR MET/BASE SOFTWARE |
| CASE | 5500A/CASE - TRANSIT CASE |
| Coil | 50 Turn Coil |
| MET/BASE-6 | METROLOGY SOFTWARE, REQUIRES MET/CAL-L |
| MET/BASE-7 | MET BASE 7 SOFTWARE |
| MET/CAL-L | CAL SOFTWARE USER LICENSE |
| PQ | Power Quality Option |
| PQ/6 | POWER QUALITY AND 600MHZ SCOPE CAL OPTS |
| RAC3YR | REPAIR & ACCR CAL 3YRS |
| SC1100 | 1100 MHz Oscilloscope Calibrator |
| SC2 | CALIBRATION SERVICE FOR 2 YEARS |
| SC300 | 300 MHz Oscilloscope Calibrator |
| SC600 | 600 MHz Oscilloscope Calibrator |
| Z540X2 | 2 YRS CALIBRATION |
