    Multipurpose Rohde Schwarz Signal Analyzer Durable FSIQ26 For LED

    Ask Lasest Price
    Brand Name : Rohde and Schwarz
    Model Number : FSIQ26
    Certification : FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : in stock
    • Product Details
    • Company Profile

    Multipurpose Rohde Schwarz Signal Analyzer Durable FSIQ26 For LED

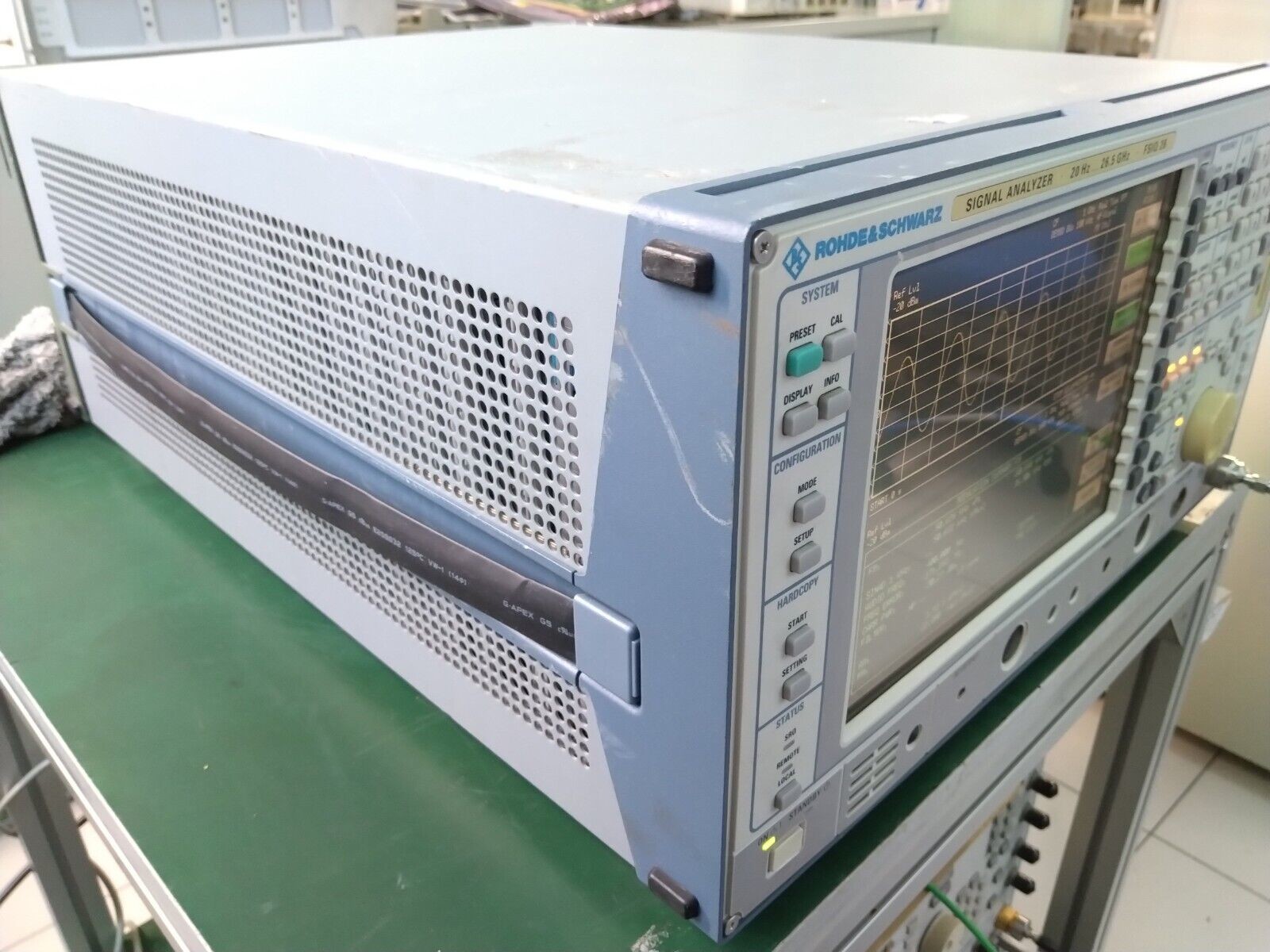

    FSIQ26 Rohde & Schwarz Spectrum Signal Analyzer


    Description of Rohde and Schwarz FSIQ26 signal analyzer


    Additional Features:

    • Frequency Range: 20 Hz to 26.5 GHz
    • Resolution bandwidth 1 Hz to 10 MHz in 1/2/3/5 steps
    • 5-pole resolution filters with high selectivity
    • FFT filter with 1 Hz to 1 kHz RBW for fast measurements
    • Displayed average noise floor typ.: -150 dBm in 10 Hz bandwidth
    • Third-order intercept +20 dBm with FSIQ 7, +22dBm with FSIQ26
    • Phase noise: -150 dBc/Hz at 5 MHz offset
    • 75 dB ACPR dynamic range for W-CDMA (4.096 MHz integration BW)
    • Total measurement uncertainty <1 dB up to 2.2 GHz, <1.5 dB up to 7 GHz
    • RMS detector for high-precision power measurements irrespective of waveform
    • Fast spectrum analysis with 5 ms sweep time for full span (FSIQ3/7)
    • Fast time domain analysis with 1 µs zero span sweep time
    • Integrated broadband vector signal analyzer for all main mobile radio standards and modulation modes with versatile result display: I and Q signal, magnitude and phase, vector and constellation diagrams, spreadsheets with numeric evaluation of modulation errors and demodulated bit sequence
    • Spectrum analysis with ultrawide dynamic range for sophisticated ACPR measurements: NF = 15 dB/ TOI = +20 dBm (FSIQ7)
    • Integrated vector signal analyzer for universal analysis of digital and analog modulated signals BPSK to 16QAM, (G)MSK, AM, FM, PM
    • Vector signal analyzer for W-CDMA/3GPP
    • Symbol rate up to 6.4 Msymbol/s
    • High-speed synthesizer with 5 ms sweep time for FULL SPAN (FSIQ 3/7)
    • High display update rate up to 25 sweeps/s
    List of Options
    B11Tracking Generator 7 GHz with I/Q Modulator for R&S FSIQ7/26
    B131 dB Input Attenuator
    B15Ethernet Adapter
    B16Ethernet (RJ45 connector) also has two variants.
    B172nd IEC/IEEE Bus Interface
    B22Increased Level Accuracy up to 2 GHz
    B4Low Phase Noise
    B5FFT Bandwidths 1 Hz to 1 KHz
    B7Vector Signal Analyzer
    B70DSP and IQ Memory Extension
    K72W-CDMA BTS Analyzer
    K743GPP HSDPA Base Station Test

    FAQ:
    1.Can you ship order to Canada or Australia ?
    Yes,we can .We send orders worldwide .
    2. What delivery method do you use ? and delivery time ?
    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
    3. What is your payment term?
    100% T/T payment before shipment.
    4. How can I ask any other question ?
    You can contact us online or leave us messages below .
