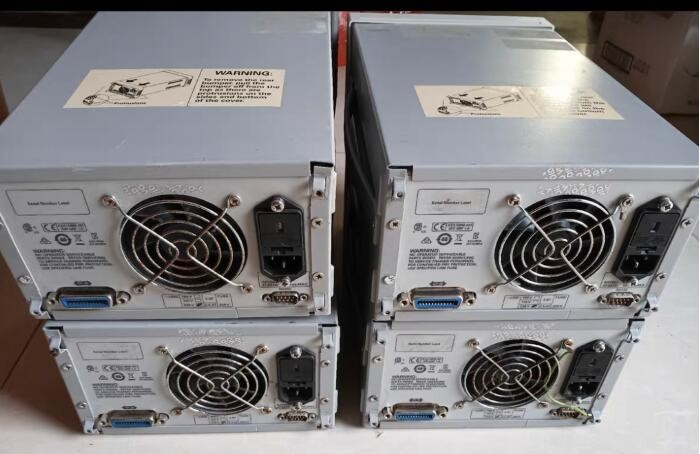

Agilent E3632A DC Power Supply Dual Range Output Programmable Used
Test Instruments
Description of Keysight Agilent E3632A
Agilent basic DC power supplies single output, 120-200 W, GPIB,
E3632A-E3634A provide dual range outputs; small, compact size for
bench use; low output ripple and noise; as well as built-in
measurements and basic programmable features with GPIB and RS232
interface. The Agilent 120W, GPIB, single output E3632A is a high
performance supply optimized for manual and basic automated
testing; and, with a combination of benchtop capabilities and
system features, it is designed to help improve measurement quality
and reduce test time.
Output Ratings
- Range 1: 0 to 15 V, 7 A
- Range 2: 0 to 30 V, 4 A
Programming Accuracy at 25°C ±5°C
- Voltage: 0.05% + 10 mV
- Current: 0.2% +10 mA
Ripple & Noise (20 Hz to 20 MHz)
- Normal-mode voltage: <350 µVrms/2 mVpp
- Normal-mode current: <2 mA rms
- Common-mode current: <1.5 µA rms
Readback Accuracy at 25°C ±5°C
- Voltage: 0.05% + 5 mV
- Current: 0.15% + 5 mA
List of Options
000
| 110/220v Single-phase w/CT: 4- |
0E3
| AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz |
0E9
| AC 100V single-phase 3-wire. 100 VAC +/- 10V operation, 47 to 63 Hz |
0EM
| AC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz |
0L2
| English language operation manual, printed |
1CM
| Rackmount Kit - mounts one with blank filler panel included |
1CN
| Rackmount Kit - mounts two products side-by-side |
1CP
| Rack Mount Kit - mounts 3U instrument to the front of System II
rack |
910
| Additional operating and service manual |
E3600A-100
| Test Lead Kit, Banana plug to SMT grabber |
PCUSB
| 82357A USB/GBIP Interface |
R-50C-011-3
| Agilent Calibration - 3 years |
R-50C-011-5
| Agilent Calibration - 5 years |
R-50C-021-3
| ANSI Z540-1-1994 Calibration - 3 years |
R-50C-021-5
| ANSI Z540-1-1994 Calibration - 5 years |
R-51B-001-C
| Return to Agilent Warranty - 1 year |
UK6
| Commercial calibration certificate with test data included |
