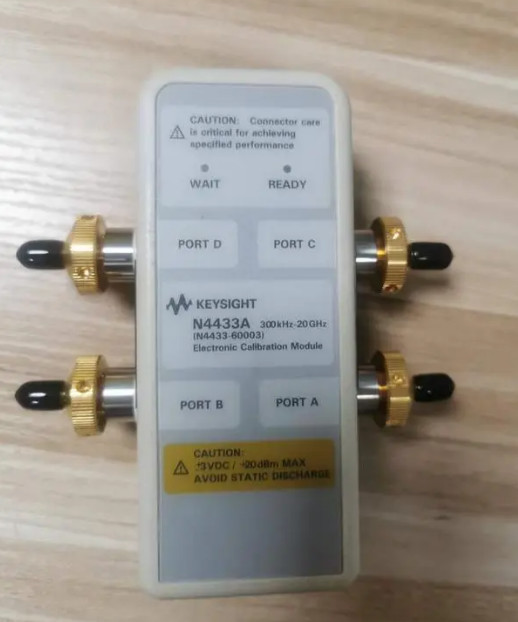

Keysight Agilent N4433A 4-port RF Electronic Calibration ECal
Module
Description of Keysight Agilent N4433A
The Keysight N4433A Microwave electronic calibration (ECal) module
makes calibration of vector network analyzers fast, easy, and
accurate. ECal is a precision, single-connection calibration
technique for your vector network analyzer. Performing a full
three- or four-port calibration takes less than half the time and
number of connections using ECal versus mechanical cal kits.
Furthermore, the accuracy of the calibration is comparable to
mechanical methods. Traditional mechanical calibrations require
intensive operator interaction, which is prone to errors. With
ECal, the operator simply connects the ECal module to the network
analyzer and the software controls the rest.
ECal modules are transfer standards capable of transferring the
factory calibration accuracy to your network analyzer. The Keysight
PNA and ENA series of network analyzers controls the N4433A module
directly through a USB interface. PNA Series network analyzers
require firmware revision 2.5 or higher.
Overview and Features of N4433A 4-port RF Electronic Calibration
ECal Module
- NIST traceable accurate calibrations
- 300 kHz to 20 GHz frequency range
- Standard 3.5 mm (f) connectors
- Mixed 3.5 mm male/female connectors option available
- Reliable solid-state switching
- USB interface for direct control with PNA and ENA series of network
analyzers
- Reduced connector wear
List of Options
| 010 | Four 3.5 mm female connectors |
| 101 | Port A connector is 3.5 mm female |
| 102 | Port A connector is 3.5 mm male |
| 150 | Wooden storage box |
| 1A7 | ISO 17025 compliant calibration |
| 201 | Port B connector is 3.5 mm female |
| 202 | Port B connector is 3.5 mm male |
| 301 | Port C connector is 3.5 mm female |
| 302 | Port C connector is 3.5 mm male |
| 401 | Port D connector is 3.5 mm female |
| 402 | Port D connector is 3.5 mm male |
| 801 | Label for mixed connectors |
| A6J | ANSI Z540 compliant calibration |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-50C-011-5 | Agilent Calibration - 5 years |
| R-50C-016-3 | ISO 17025 Compliant Calibration - 3 years |
| R-50C-016-5 | ISO 17025 Compliant Calibration - 5 years |
| R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
| UK6 | Commercial calibration certificate with test data |
