R&S®NRPxxT/TN/TWG/TWGN Thermal power sensors
Highest measurement accuracy
Key facts
- Dynamic range: –35 dBm to +20 dBm
- Frequency range: DC to 170 GHz
- Control and monitoring via USB and LAN (R&S®NRPxxTN/TWGN only)
- Outstanding performance for reference applications
- Excellent impedance matching
Most accurate power measurements for reference applications and use
in calibration labs
R&S®NRP power meter sensors have long been recognized for
supreme precision and speed. R&S®NRPxxT, R&S®NRPxxTN and
R&S®NRPxxTWG thermal power sensors are ideal for complex
measurement tasks where accuracy is vital. They combine excellent
impedance matching with a sophisticated connector concept. The
internal calibration test generates reliable and stable
measurements. R&S®NRP power meter sensors are available as USB
sensors and can also be controlled via LAN. The R&S®NRP power
meter portfolio is ideal for production, R&D and calibration
labs as well as installation and maintenance.
Outstanding performance for reference applications
Unparalleled linearity ideal for performing relative measurements
Thermal power sensors are used in complex measurement tasks
whereaccuracy is vital. To improve measurement accuracy,
theR&S@NRPXXT(N)/TWG(N) thermal power sensor hardware is
designed tokeep measurement noise to a minimum and make the sensor
immune tothermal environmental effects.Three times faster than
comparablesolutions on the market with triggered measurements and
> 500measurements/s in buffered mode.
High precision measurements R&S®NRP67T
Excellent impedance matching
From N to WR 6.5, always the right RF interface
Measurement uncertainty generally results from mismatches causedby
multiple reflections at the source and power sensors.To
minimizesuch reflections, all thermal power sensors in the
R&SeNRP family areexcellently matched to high frequencies,
reducing measurementuncertainty

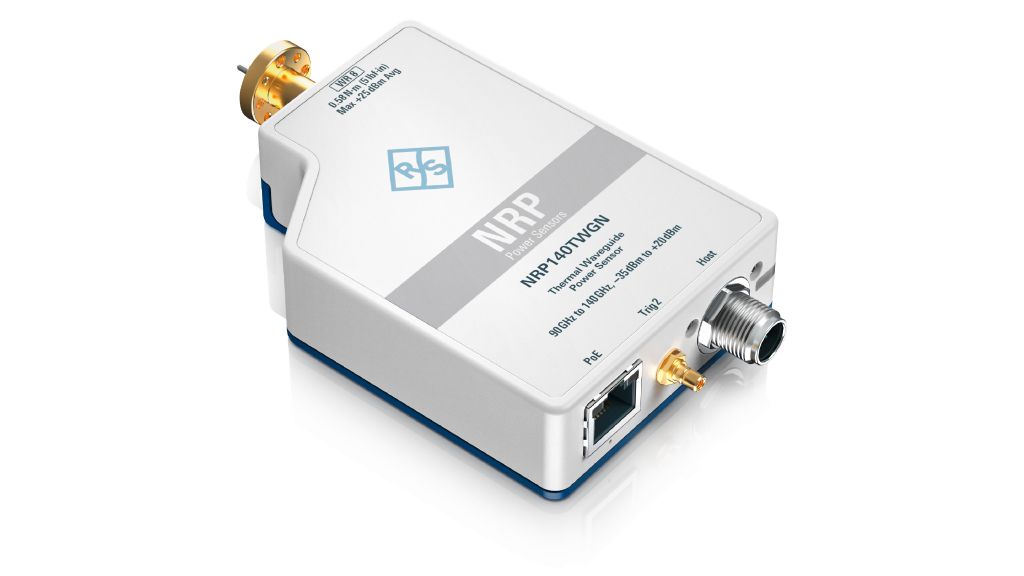

R&S®NRPxxTWG power sensors
Intelligent, LAN enabled power measurements
Remote monitoring via LAN over any distance
The LAN power sensors are ideal for remote monitoring
applicationssuch as satellite systems or particle accelerators,
where sensors areplaced at different points in the system. The LAN
interface makes iteasy to overcome large distances between the
various test points andthe control center.

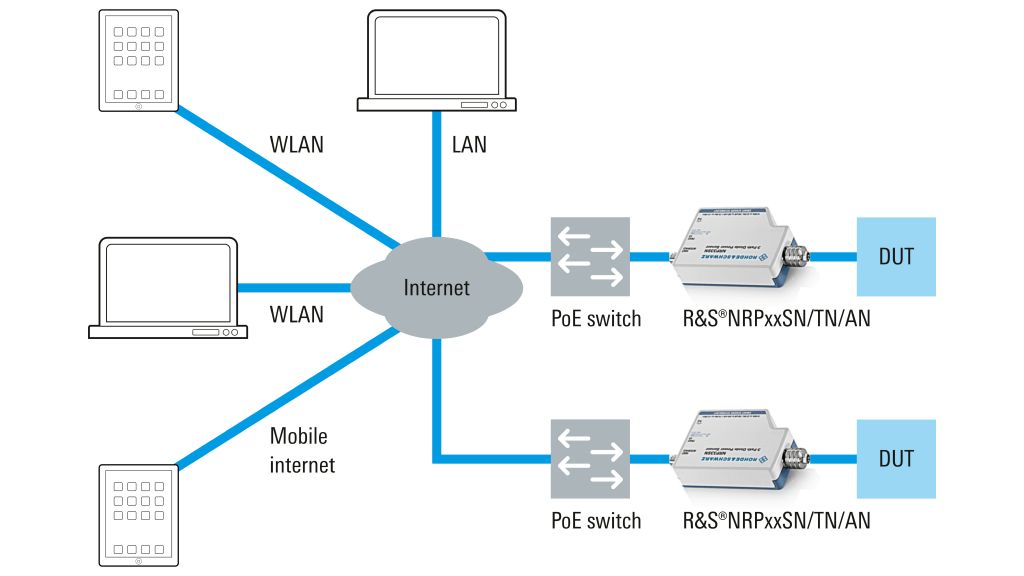

Remote monitoring of LAN power sensors
Internal calibration test
Rohde & Schwarz has implemented a special verification function
inR&SeNRPxxT(N)sensors.The function covers all essential signal
pathcomponents.Using a test routine, sensor response to highly
stableapplied DC power is measured and compared to the values from
theprevious calibration.The result provides information about the
powersensor functionality and accuracy.
Test setup with R&S®NRP power sensors
Advantage of a portfolio
Common R&S®NRp power sensor features
- Minimize measurement uncertainty with fully characterized
powersensors
- Intelligent averaging function minimizes measurement time
- USBTMC for easy system integration
- Built-in trigger l/O port
- Sensor status at a glance with status LED
Also available as three-path diode power sensors
Flexible interfaces
Robust 6-/8-pole, USB or LAN
The power sensors come with various detachable cables. The
sensorend has a screw connection to prevent accidental loosening of
thecable.Direct connections to Rohde & Schwarz signal generators
andsignal and spectrum analyzers are enhanced with a
high-performancepower meter. The R&S@NRP-ZKU Or R&S®NRP-ZKC
USB interfacecable can be used to connect a power sensor to a
laptop/PC via theUSB interface.

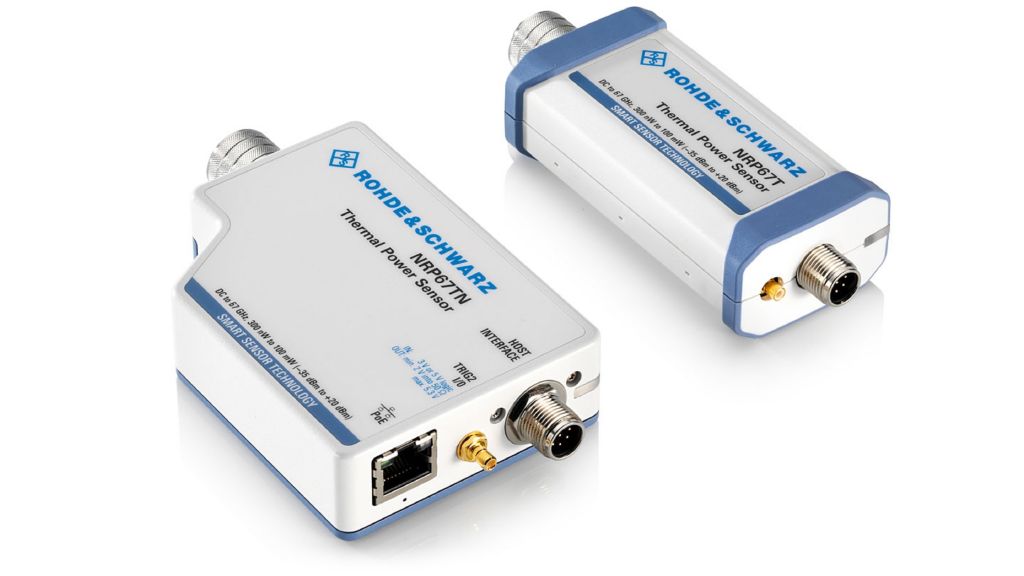

R&S®NRP67TN and R&S®NRP67T thermal power sensors
Available models

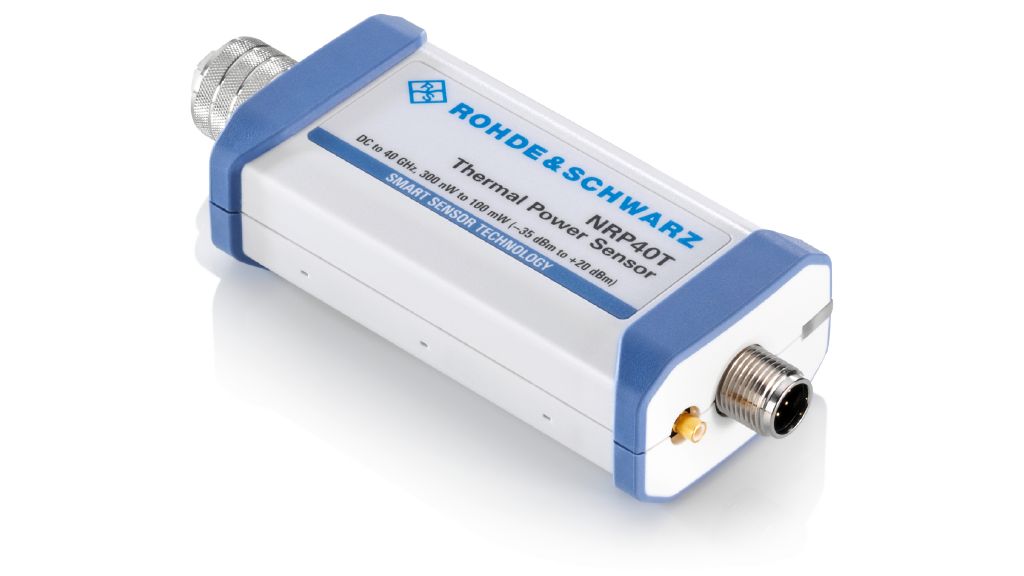

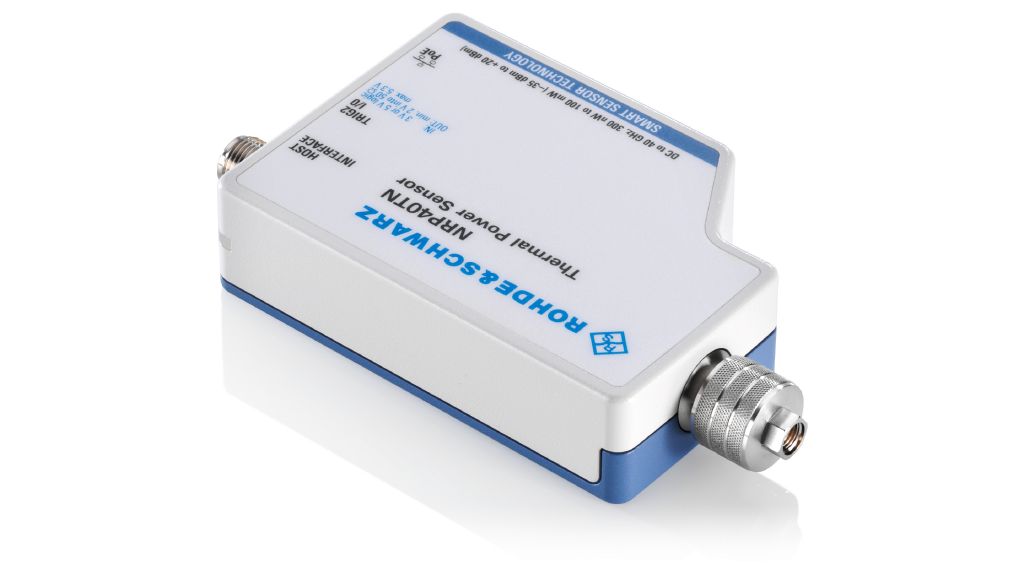

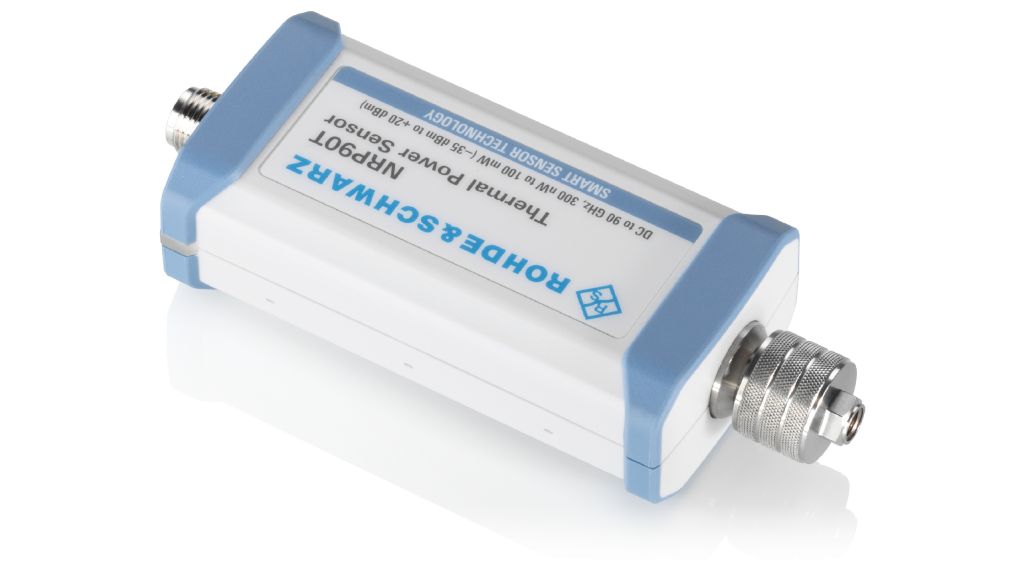

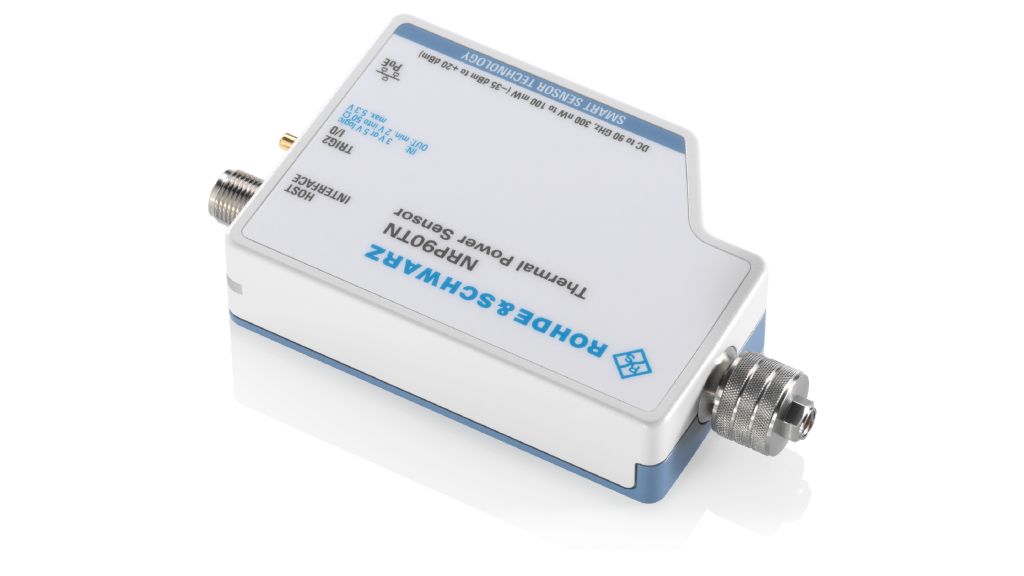

| Models | Frequency range | Level range | LAN interface | Connector type |
 | R&S®NRP18T | DC - 18 GHz | -35 dBm - +20 dBm | | N(m) |
 | R&S®NRP18TN | DC - 18 GHz | -35 dBm - +20 dBm | √ | N(m) |
 | R&S®NRP33T | DC - 33 GHz | -35 dBm - +20 dBm | | 3.5 mm (m) |
 | R&S®NRP33TN | DC - 33 GHz | -35 dBm - +20 dBm | √ | 3.5 mm (m) |
 | R&S®NRP40T | DC - 40 GHz | -35 dBm - +20 dBm | | 2.92 mm (m) |
 | R&S®NRP40TN | DC - 40 GHz | -35 dBm - +20 dBm | √ | 2.92 mm (m) |
 | R&S®NRP50T | DC - 50 GHz | -35 dBm - +20 dBm | | 2.4 mm (m) |
 | R&S®NRP50TN | DC - 50 GHz | -35 dBm - +20 dBm | √ | 2.4 mm (m) |
 | R&S®NRP67T | DC - 67 GHz | -35 dBm - +20 dBm | | 1.85 mm (m) |
 | R&S®NRP67TN | DC - 67 GHz | -35 dBm - +20 dBm | √ | 1.85 mm (m) |
 | R&S®NRP90T | DC - 90 GHz | -35 dBm - +20 dBm | | 1.35 mm (m |
 | R&S®NRP90TN | DC - 90 GHz | -35 dBm - +20 dBm | √ | 1.35 mm (m |
 | R&S®NRP110T | DC - 110 GHz | -35 dBm - +20 dBm | | 1.00 mm (m) |
 | R&S®NRP75TWG | 50 GHz - 75GHz | -35 dBm - +20 dBm | | WR 15 |
 | R&S®NRP75TWGN | 50 GHz - 75GHz | -35 dBm - +20 dBm | √ | WR 15 |
| R&S®NRP90TWG | 60 GHz - 90 GHz | -35 dBm - +20 dBm | | WR 12 |
 | R&S®NRP90TWGN | 60 GHz - 90 GHz | -35 dBm - +20 dBm | √ | WR 12 |
| R&S®NRP110TWG | 75 GHz - 110 GHz | -35 dBm - +20 dBm | | WR 10 |
| R&S®NRP110TWGN | 75 GHz - 110 GHz | -35 dBm - +20 dBm | √ | WR 10 |
 | R&S®NRP140TWG | 90 GHz - 140 GHz | -35 dBm - +20 dBm | | WR 8 |
 | R&S®NRP140TWGN | 90 GHz - 140 GHz | -35 dBm - +20 dBm | √ | WR 8 |
 | R&S®NRP170TWG | 110 GHz - 170 GHz | -35 dBm - +20 dBm | | WR 6.5 |
 | R&S®NRP170TWGN | 110 GHz - 170 GHz | -35 dBm - +20 dBm | √ | WR 6.5 |
Available options
| Interface cables |
| Product | Description |
 | R&S®NRP-ZKU | USB-A interface cable, length: 0.75 m |
| USB-A interface cable, length: 1.5 m |
| USB-A interface cable, length: 3 m |
| USB-A interface cable, length: 5 m |
| R&S®NRP-ZKC | USB-C interface cable, length: 0.75 m |
| USB-C interface cable, length: 1.5 m |
| USB-C interface cable, length: 3 m |
| R&S®NRP-ZK6 | 6-pole interface cable, length: 1.5 m |
| 6-pole interface cable, length: 3 m |
| 6-pole interface cable, length: 5 m |
| R&S®NRP-ZK8 | 8-pole interface cable, length: 1.5 m For connection to R&S®NRX |
8-pole interface cable, length: 3 m For connection to R&S®NRX |
8-pole interface cable, length: 5 m For connection to R&S®NRX |
| Interface accessories |
| Product | | Description |
 | R&S®NRP-Z5 | USB sensor hub R&S®NRP-Z5 can host up to 4 R&S®NRPxxT(N), R&S®NRPxxA(N) or R&S®NRP-Z sensors. A professional trigger solution allows simultaneous
internal and wxternal triggering of all connected sensors. |
| Waveguide accessories |
| Product | Description |
 | R&S®ZCTW | Torque wrench for waveguide flange screws |
| R&S®NRP-ZBW | Waveguide bracket for R&S®NRP110T |
| R&S®WCA75 | Waveguide Coax Adapter, WR15 to 1 mm (f) 50 GHz to 75 GHz |
| R&S®WCA90 | Waveguide Coax Adapter, WR12 to 1 mm (f) 60 GHz to 90 GHz |
 | R&S®WCA110 | Waveguide Coax Adapter, WR10 to 1 mm (f) 75 GHz to 110 GHz |
| R&S®WCA12-135 | Waveguide Coax Adapter WR12 to 1.35 mm (f) Waveguide Coax Adapter WR12 to 1.35 mm female with S-Parameter
characterisation, WG stabilzation bracket for USB and LAN NRP power
sensors 60 - 90 GHz |
| Documentation |
| Product | Description |
| R&S®DCV-1 | Documentation of calibration values |
| R&S®DCV-ZP | Printout of DCV |
