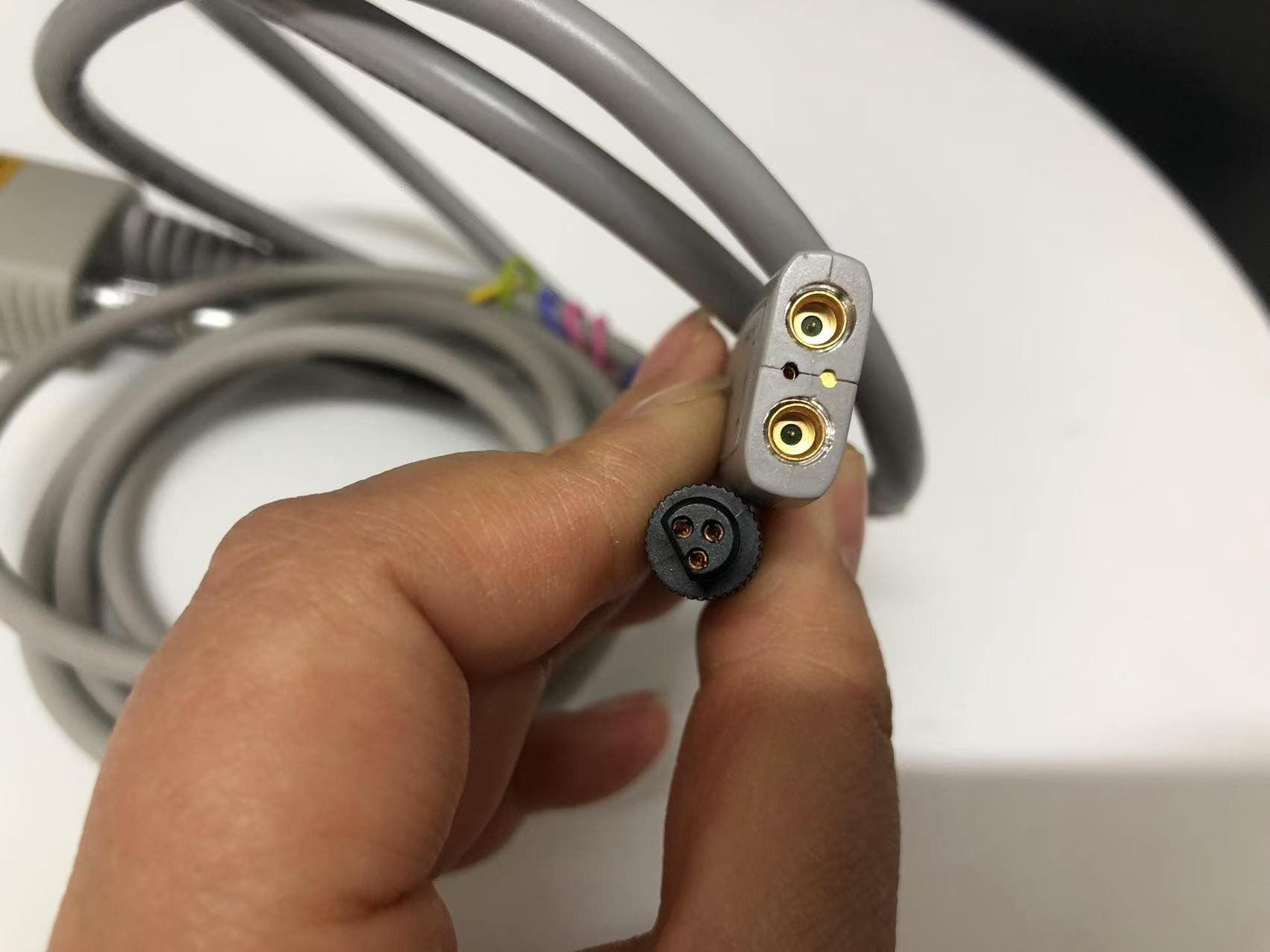

Keysight Agilent U1818B Active Differential Probe 100 kHz To 12 GHz
Description of U1818B Active Differential Probe
The Keysight U1818B 100 kHz to 12 GHz active differential probe
makes it easy to perform high frequency in-circuit measurements
using network, spectrum and signal source analyzers. With flat
frequency response, low noise floor, and direct power from
instrument connection, the U1818B allows measurements to be made
while taking full advantage of Keysight's RF analyzers dynamic
range.
Highlights
Broad bandwidth with flat frequency response, +/- 1.5 dB, ensures
excellent measurement accuracy and helps you achieve the best
product specifications
Low noise floor, less than -130 dBm/Hz at 10 MHz to 12 GHz, which
allows measurements to be made at a low signal amplitude
Convenient biasing from Keysight’s RF and microwave instruments
probe power port or bench top power supply for user flexibility
Key Features and Benefits:
– Broad bandwidth with lat frequency, +/- 1.5 dB, which ensures
excellent measurement accuracy and helps users achieve the best
product speciications. – Low noise loor, less than -130 dBm/Hz at
10 MHz to 12 GHz, which allows measurements to be made at a low
signal amplitude. – Convenience biasing from Keysight’s RF and
microwave instruments probe power port or bench top power supply
for user lexibility.
Using a Network Analyzer with Active Differential Probes
Below is an application showing the U1818A/B with a network
analyzer measuring step response in a high-speed digital design. In
this application, the network analyzer provides the signal at one
end while the active differential probe is used to measure the
insertion loss between the DUT at the other end. The network
analyzer will automatically transform the output signal from
frequency domain to time domain for the frequency sweep selected.
After the conversion of the signal, you will be able to identify
the rise time, fall time or overshoot values which is essential in
verifying the PCB design. The in-circuit measurement method of
using the active differential probe with a network analyzer will
provide accurate measurements with bigger dynamic range.
