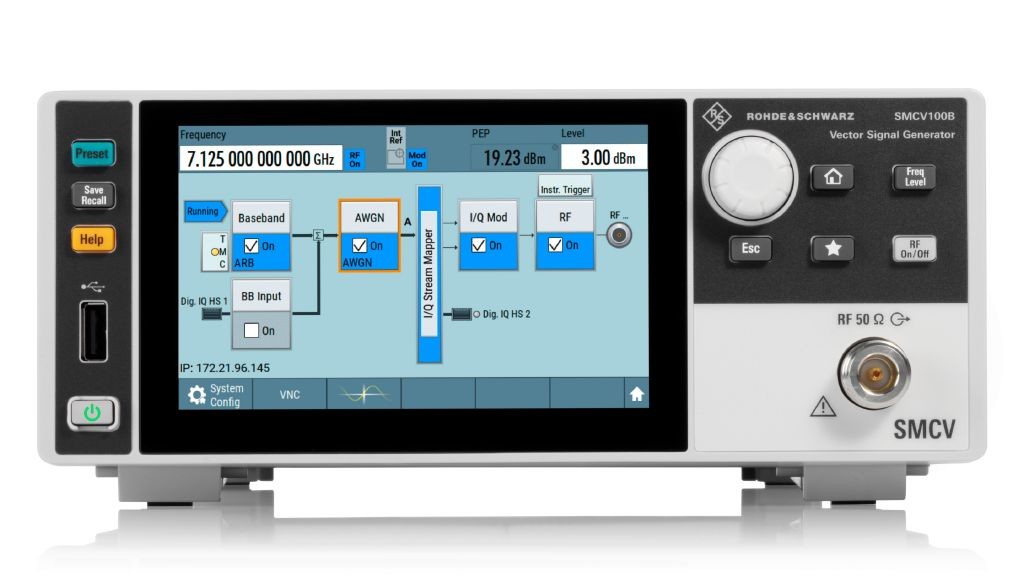

R&S®SMCV100B VECTOR SIGNAL GENERATOR
Key facts
▶ First multistandard platform for broadcast, navigation, cellular
and wireless applications
▶ Fully software defined vector signal generator with software
based option concept
▶ Modern RF signal generation concept with direct digital RF
upconversion up to 2.5 GHz
▶ High output power up to +25 dBm
▶ Modulation bandwidth up to 240 MHz
▶ Convenient operation on 5" touchscreen BENEFITS A
RF Characteristics
Frequency
| Range | with R&S®SMCVB-B103 option (mandatory) | 4 kHz to 3 GHz |
| with R&S®SMCVB-B103 and R&S®SMCVB-KB106 options | 4 kHz to 6 GHz |
| with R&S®SMCVB-B103, R&S®SMCVB-KB106 and R&S®SMCVB-KB107 options | 4 kHz to 7.125 GHz |
| Resolution of setting | | 0.001 Hz |
| Resolution of synthesis | f = 1 GHz | 2.665 μHz (nom.) |
| Settling time | to within < 1 × 10–7 for f > 200 MHz or < 20 Hz for f ≤ 200 MHz, with GUI update
stopped, I/Q optimization mode: fast, measured from command at
instrument to frequency settled within specified range, with
Ethernet (fast socket) remote control, level setting
characteristic: auto | < 5 ms |
| Range and resolution of phase offset setting | | –999.99° to +999.99°, 0.01° resolution |
Reference frequency
| Frequency error | at time of calibration in production | < 1 × 10–7 |
| Aging | after 30 days of uninterrupted operation | ≤ 1 × 10–6 /year |
| Temperature effect | | ±1.0 × 10–6 |
| Source | | internal, external |
| External reference frequency modes | standard | 10 MHz |
| Reference frequency input |
| Connector type | REF IN on rear panel | BNC female |
| Input frequency | | 10 MHz, 13 MHz |
| Minimum frequency locking range | | ±25 × 10–6 (meas.) |
| Input level range | | 0 dBm to +16 dBm (meas.) |
| Input impedance | | 50 Ω (nom.) |
| Reference frequency output |
| Connector type | REF OUT on rear panel | BNC female |
| Output frequency | square wave | |
| source mode: internal | 10 MHz |
| source mode: external | 10 MHz |
| Output level | | +7 dBm to +13 dBm, +9 dBm (meas.) |
| Source impedance | | 50 Ω (nom.) |
Level
| Setting range |
| R&S®SMCVB-B103/-KB106/-KB107 | standard |
| 4 kHz ≤ f < 100 kHz | –120 dBm to +16 dBm |
| 100 kHz ≤ f < 6 GHz | –145 dBm to +16 dBm |
| 6 GHz ≤ f ≤ 7.125 GHz | |
| with R&S®SMCVB-K31 option |
| 4 kHz ≤ f < 100 kHz | –120 dBm to +25 dBm |
| 100 kHz ≤ f ≤ 6 GHz | –145 dBm to +25 dBm |
| 6 GHz ≤ f ≤ 7.125 GHz | –145 dBm to +25 dBm |
| Setting resolution | | 0.01 dB |
| Specified level range | peak envelope power (PEP) |
| R&S®SMCVB-B103/-KB106/-KB107 | standard | |
| 4 kHz < f ≤ 10 MHz | –110 dBm to +15 dBm |
| 10 MHz < f ≤ 6 GHz 1 | –120 dBm to +15 dBm |
| 6 GHz < f ≤ 7.125 GHz | –120 dBm to +15 dBm |
| with R&S®SMCVB-K31 option |
| 4 kHz < f ≤ 10 MHz | –110 dBm to +20 dBm |
| 10 MHz < f ≤ 6 GHz 1 | –120 dBm to +20 dBm |
| 6 GHz < f ≤ 7.125 GHz | –120 dBm to +18 dBm |
| Level accuracy | level setting characteristic: auto, temperature range from +18 °C
to +33 °C |
| level > –80 dBm |
| 4 kHz < f < 200 kHz | < 1.8 dB |
| 200 kHz ≤ f ≤ 10 MHz | < 0.7 dB |
| 10 MHz < f ≤ 2.5 GHz 1 | < 0.5 dB |
| f > 2.5 GHz 1 | < 0.7 dB |
| level ≤ –80 dBm |
| 4 kHz < f < 200 kHz | < 1.8 dB |
| 200 kHz ≤ f ≤ 10 MHz | < 1.2 dB, < 1.0 dB (typ.) |
| 10 MHz < f ≤ 2.5 GHz 1 | < 0.8 dB |
| f > 2.5 GHz 1 | < 1.1 dB |
| Settling time | to < 0.1 dB deviation from final value, with GUI update stopped,
temperature range from +18 °C to +33 °C, f > 10 MHz, I/Q
optimization mode: fast, measured from command at instrument to
frequency settled within specified range, with Ethernet (fast
socket) remote control, level setting characteristic: auto | < 5 ms |
| Interruption-free level range | level setting characteristic: uninterrupted level setting | > 20 dB |
Options
| Type | Designation |
| Frequency options |
| R&S®SMCVB-B103 | 4 kHz to 3 GHz |
| R&S®SMCVB-KB106 | Frequency extension to 6 GHz 10 |
| R&S®SMCVB-KB107 | Frequency extension to 7.125 GHz 11 |
| RF options |
| R&S®SMCVB-K31 | High output power |
| R&S®SMCVB-K709 | Low phase noise |
| Baseband options |
| R&S®SMCVB-K505 | ARB waveform streaming |
| R&S®SMCVB-K511 | ARB memory extension to 512 Msample |
| R&S®SMCVB-K512 | ARB memory extension to 1 Gsample |
| R&S®SMCVB-K521 | Baseband extension to 120 MHz RF bandwidth |
| R&S®SMCVB-K522 | Baseband extension to 160 MHz RF bandwidth |
| R&S®SMCVB-K523 | Baseband extension to 240 MHz RF bandwidth |
| Baseband enhancements |
| R&S®SMCVB-K19 | Digital baseband interface |
| R&S®SMCVB-K62 | Additive white Gaussian noise (AWGN) |
| R&S®SMCVB-K197 | Basic AM/FM/M |
| R&S®SMCVB-K198 | Pulse modulation |
| R&S®SMCVB-K199 | Custom digital modulation |
| R&S®SMCVB-K519 | Enable broadcast standards |
| R&S®SMCVB-K547 | Improved modulation frequency response |
| R&S®SMCVB-K548 | Crest factor reduction |
| Other options |
| R&S®SMCVB-K980 | Health and utilization monitoring service (HUMS) |
| Broadcast standards |
| R&S®SMCVB-K155 | AM/FM/RDS |
| R&S®SMCVB-K156 | DAB/T-DMB |
| R&S®SMCVB-K157 | DVB-C/ISDB-C |
| R&S®SMCVB-K158 | J.83/B |
| R&S®SMCVB-K160 | DRM |
| R&S®SMCVB-K161 | ATSC/ATSC-MH |
| R&S®SMCVB-K162 | ATSC 3.0 |
| R&S®SMCVB-K163 | DVB-T |
| R&S®SMCVB-K164 | DVB-T2 |
| R&S®SMCVB-K165 | ISDB-T/Tsb |
| R&S®SMCVB-K166 | DTMB |
| R&S®SMCVB-K167 | DVB-S/DVB-S2 |
| R&S®SMCVB-K168 | DVB-S2x |
| Digital standards using R&S®WinIQSIM2 12 |
| R&S®SMCVB-K240 | GSM/EDGE |
| R&S®SMCVB-K241 | EDGE Evolution |
| R&S®SMCVB-K242 | 3GPP FDD |
| R&S®SMCVB-K244 | GPS |
| R&S®SMCVB-K246 | CDMA2000 |
| R&S®SMCVB-K247 | 1xEV-DO Rev A |
| R&S®SMCVB-K250 | TD-SCDMA |
| R&S®SMCVB-K251 | TD-SCDMA, enhanced BS/MS tests |
| R&S®SMCVB-K252 | DVB-H |
| R&S®SMCVB-K253 | DAB/T-DMB |
| R&S®SMCVB-K254 | IEEE 802.11a/b/g/n |
| R&S®SMCVB-K255 | LTE Release 8 |
| R&S®SMCVB-K260 | Bluetooth® EDR |
| R&S®SMCVB-K261 | Multicarrier CW signal generation |
| R&S®SMCVB-K262 | Additive white Gaussian noise (AWGN) |
| R&S®SMCVB-K266 | Galileo |
| R&S®SMCVB-K283 | 3GPP FDD HSPA/HSPA+, enhanced BS/MS tests |
| R&S®SMCVB-K284 | LTE Release 9 |
| R&S®SMCVB-K285 | LTE Release 10 |
| R&S®SMCVB-K286 | IEEE 802.11ac |
| R&S®SMCVB-K287 | 1xEV-DO Rev. B |
| R&S®SMCVB-K289 | NFC A/B/F |
| R&S®SMCVB-K294 | GLONASS 1 satellite |
| R&S®SMCVB-K297 | IRNSS 1 satellite |
| R&S®SMCVB-K298 | Modernized GPS |
| R&S®SMCVB-K407 | BeiDou |
| R&S®SMCVB-K412 | LTE Release 11 |
| R&S®SMCVB-K413 | LTE Release 12 |
| R&S®SMCVB-K414 | OFDM signal generation |
| R&S®SMCVB-K415 | Cellular IoT Release 13 |
| R&S®SMCVB-K416 | DVB-S2/DVB-S2X |
| R&S®SMCVB-K417 | Bluetooth® 5.x |
| R&S®SMCVB-K418 | Verizon 5GTF signals |
| R&S®SMCVB-K419 | LTE Release 13/14/15 |
| R&S®SMCVB-K423 | Modernized GLONASS |
| R&S®SMCVB-K431 | LoRa |
| R&S®SMCVB-K432 | Modernized BeiDou |
| R&S®SMCVB-K442 | IEEE 802.11ax |
| R&S®SMCVB-K443 | Cellular IoT Release 14 |
| R&S®SMCVB-K444 | 5G NR Release 15 |
| R&S®SMCVB-K446 | Cellular IoT Release 15 |
| R&S®SMCVB-K447 | IEEE 802.11be |
| R&S®SMCVB-K448 | 5G NR Release 16 |
| R&S®SMCVB-K469 | DVB-RCS2 |
| R&S®SMCVB-K470 | 5G NR Sidelink |
| R&S®SMCVB-K471 | 5G NR Release 17 |
| R&S®SMCVB-K476 | DVB-S2X-E (Annex E) |
| R&S®SMCVB-K478 | Bluetooth ® 6.0 |
| Waveform packages, for signals from R&S®WinIQSIM2,
R&S®SMCVB-KVxx |
| R&S®SMCVB-K200 | 1 waveform |
| 5 waveforms |
| 50 waveforms |
| Waveform libraries (available for download at customer web) |
| R&S®SMCVB-KV10 | DAB/T-DMB waveforms |
| R&S®SMCVB-KV11 | DRM waveforms |
| R&S®SMCVB-KV12 | DRM+ waveforms |
| R&S®SMCVB-KV13 | HD radio waveforms |
| R&S®SMCVB-KV14 | XM radio waveforms |
| R&S®SMCVB-KV15 | DVB-T2 waveforms |
| R&S®SMCVB-KV16 | ATSC 3.0 waveforms |
| R&S®SMCVB-KV17 | Digital TV interferer waveforms |
| R&S®SMCVB-KV18 | Cable interferer waveforms |
| R&S®SMCVB-KV19 | Satellite interferer waveforms |
| R&S®SMCVB-KV20 | China digital radio waveforms |
| R&S®SMCVB-KV50 | GPS predefined waveforms |
| R&S®SMCVB-KV51 | Galileo predefined waveforms |
| R&S®SMCVB-KV52 | GLONASS predefined waveforms |
| R&S®SMCVB-KV53 | BeiDou predefined waveforms |
| Transport stream libraries, for broadcast standards (available for
download at customer web) |
| R&S®SMCVB-KS10 | DAB/T-DMB stream library |
| R&S®SMCVB-KS11 | DAB+ stream library |
| R&S®SMCVB-KS12 | ISDB-T stream library |
| R&S®SMCVB-KS13 | ATSC/ATSC and mobile DTV stream library |
| R&S®SMCVB-KS14 | DVB-T2 MI stream library |
| R&S®SMCVB-KS15 | EMC stream library |
| R&S®SMCVB-KS16 | DRM stream library |
| R&S®SMCVB-KS17 | Basic stream library |
| R&S®SMCVB-KS18 | Extended SDTV stream library |
| R&S®SMCVB-KS19 | Extended HDTV stream library |
| R&S®SMCVB-KS20 | HEVC stream library |
| Recommended extras |
| R&S®HZN96 | 19" rack adapter |
| R&S®DCV-2 | Documentation of calibration values |
| R&S®ACASMCV100B | R&S®SMCV100B accredited calibration |
