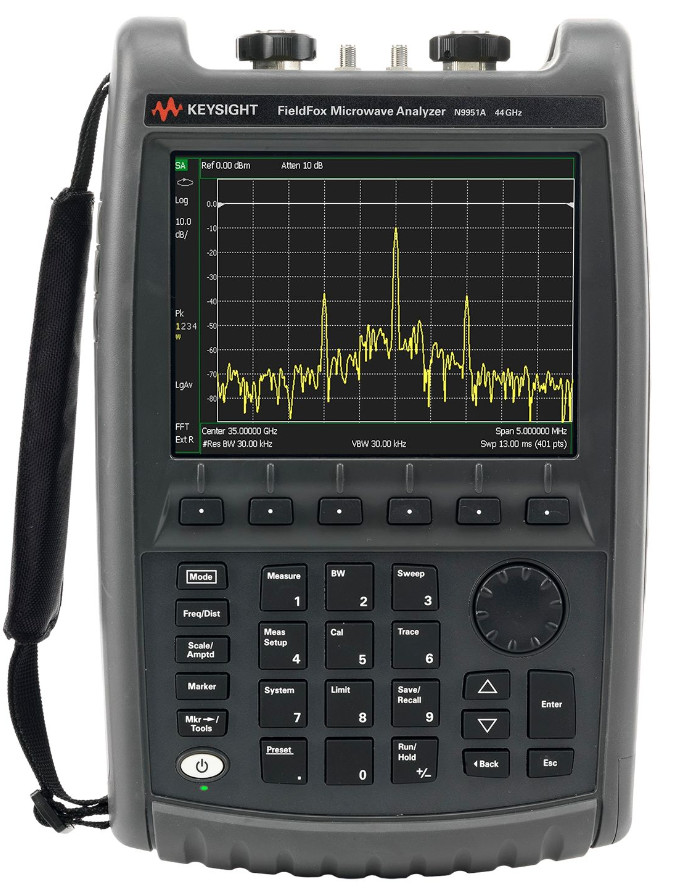

eysight N9951A FieldFox Handheld Microwave Analyzer 44 GHz
Description of N9951A FieldFox Handheld Microwave Analyzer
Keysight's FieldFox handheld analyzers are equipped to handle your
toughest working environments during routine maintenance, in-depth
troubleshooting, and anything in between. Choose the Keysight
FieldFox configuration that best meets your needs.
Standard model includes cable and antenna analyzer.
Expand capabilities with optional VNA, spectrum analyzer, built-in
power meter, vector voltmeter, and more.
Save time by measuring DTF and TDR in the same sweep.
Measure all four S-parameters simultaneously.
Make accurate spectrum analyzer measurements (± 0.5 dB) without
warm-up.
Calibrate easily with QuickCal.
Use the industry's lightest all-in-one analyzer at only 3.2 kg (7.1
lb).
What's included:
- AC/DC adapter
- Localized power cord
- Rechargeable Li-ion battery
- Soft carrying case with backpack and shoulder strap
- Quick Reference Guide
What is included with a base N991xA/N995xA analyzer?
The base model includes the cable and antenna analyzer
Measurements: DTF (dB, linear, VSWR), return loss and DTF, return
loss (dB), and 1-port cable loss
Calibrations: CalReady, OSL, and response cal
Note: 2-port insertion loss is NOT included with the base model, if
2-port insertion loss is needed, order Option 210
Note: Base analyzer does not have phase information, for S11 or S21
phase, order Option 210
Applications of N9951A FieldFox Handheld Microwave Analyzer
- AM/FM Tune and Listen
- Field Strength Measurement
- SCPI Code Compatibility
- Spectrogram
- Stimulus Response
- 89600 VSA Software
- Over-The-Air LTE FDD and 5GTF
Key Specifications of N9951B FieldFox Handheld Microwave Analyzer
- Number of Built-In Ports :2
- Maximum Frequency: 44GHz
Additional CAT/VNA Based Features: Mixed-Mode S-Parameters DTF/TDR
Cable Measurements Vector Voltmeter
Best Speed at 1001 Point, 1 Sweep: 478 us/pt
Additional SA Based Features:
Real-Time Spectrum Analysis
Noise Figure Measurements
Over-The-Air Measurements
Built-In Power Meter
Extended Range Transmission Analysis (ERTA)
Bandwidth Options:10 MHz
Cable and Antenna Analyzer:Yes - Standard
Form Factor:Handheld
Instrument Type:Combination Analyzer
Maximum Frequency:44 GHz
Measurement Functions:Network analysis/Signal analysis/Cable and
antenna tester/Real-time spectrum analysis
Number of Built-In Ports:2
Spectrum Analyzer:Yes - Optional
Standard Attenuator Range:30 dB
Standard Attenuator Step:5dB
TOI @1 GHz (3rd Order Intercept):+ 13 dBm
Type:Vector Network Analyzer
Cable & Antenna Analyzer
Spectrum Analyzer
List of Options of N9951A FieldFox Handheld Microwave Analyzer
N9951A-010 | Vector network analyzer time domain |
N9951A-030 | Remote control capability |
N9951A-208 | USB power sensor measurements versus frequency |
N9951A-209 | Extended range transmission analysis (ERTA) |
N9951A-210 | Vector network analyzer transmission/reflection |
N9951A-211 | Vector network analyzer full 2-port S-parameters |
N9951A-212 | 1-port mixed-mode S-parameters |
N9951A-215 | TDR cable measurements |
N9951A-233 | Spectrum analyzer |
N9951A-235 | Pre-amplifier |
N9951A-236 | Interference analyzer and spectrogram |
N9951A-238 | Spectrum analyzer time gating |
N9951A-302 | USB power sensor support |
N9951A-307 | GPS receiver |
N9951A-308 | Vector voltmeter |
N9951A-309 | DC bias variable-voltage source |
N9951A-310 | Built-in power meter |
N9951A-312 | Channel scanner |
N9951A-330 | Pulse measurements |
N9951A-350 | Real-time spectrum analyzer (RTSA) |
N9951A-351 | I/Q analyzer |
N9951A-352 | Indoor and outdoor mapping |
N9951A-353 | IQ streaming |
N9951A-355 | Analog demodulation |
N9951A-356 | Noise figure measurements |
N9951A-358 | EMF measurements |
N9951A-361 | EMI measurements |
N9951A-370 | Over the air LTE FDD measurements |
N9951A-377 | Over the air 5G TF measurements |
N9951A-378 | Over-the-air (OTA) 5G NR measurements |
N9951A-371 | Over-the-air (OTA) 5G NR measurements |
