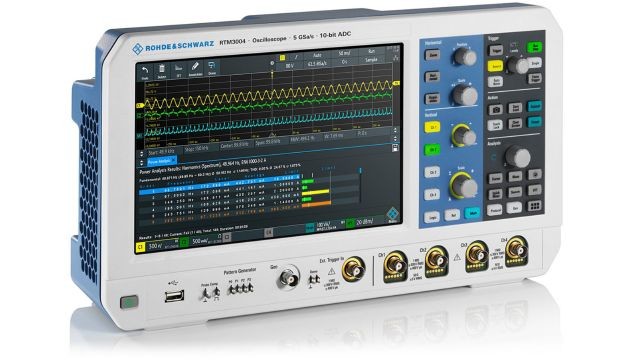

    100 MHz to 1GHz RTM3000 Oscilloscope with 80 Interleaved Maximum Memory and 2/4 Channels

    Ask Lasest Price
    Brand Name : Rohde & Schwarz
    Model Number : RTM3000
    Certification : ISO17025
    Price : Negotiable
    Payment Terms : T/T，Western Union
    Supply Ability : In Stock
    Delivery Time : 1~3 Working Days
    • Product Details
    • Company Profile

    100 MHz to 1GHz RTM3000 Oscilloscope with 80 Interleaved Maximum Memory and 2/4 Channels

    Key facts of R&S®RTM3000 Oscilloscope

    • Bandwidth: 100 MHz to 1GHz
    • Sample rate: up to 5 Gsample/s
    • Memory depth: up to 80 Msample
    • ADC resolution: 10-bit
    • Display: 10.1’’ capacitive touchscreen

    R&S®RTC1000
    R&S®RTB2000
    R&S®RTM3000
    R&S®RTA4000
    Number of oscilloscope
    channels
    2
    2/4
    2/4
    4
    Bandwidth in MHz
    50, 70, 100, 200, 300
    70, 100, 200, 300
    100, 200, 350, 500, 1000
    200, 350, 500, 1000
    Maximum sampling rate in Gsample/s
    1/channel,
    2 interleaved
    1.25/channel,
    2.5 interleaved
    2.5/channel,
    5 interleaved
    2.5/channel,
    5 interleaved
    Maximum memory depth in Msample
    1/channel,
    2 interleaved
    10/channel, 20 interleaved;
    160 Msample (optional)
    ­segmented memory
    40/channel, 80 interleaved;
    400 Msample (optional)
    ­segmented memory
    100/channel, 200 interleaved;
    1 Gsample (standard)
    ­segmented memory
    Timebase accuracy in ppm
    50
    2.5
    2.5
    0.5
    Vertical bits (ADC)
    8
    10
    10
    10
    Minimum input sensitivity
    1 mV/div
    1 mV/div
    500 µV/div
    500 µV/div
    Display
    6.5",
    640 × 480 pixel
    10" capacitive touch,
    1280 × 800 pixel
    10" capacitive touch,
    1280 × 800 pixel
    10" capacitive touch,
    1280 × 800 pixel
    Update rate
    10000 waveforms/s
    300000 waveforms/s in fast
    segmentated memory mode
    2000000 waveforms/s in fast
    segmentated memory mode
    2000000 waveforms/s in fast
    segmentated memory mode
    MSO
    8 channels,
    1 Gsample/s
    16 channels,
    2.5 Gsample/s
    16 channels,
    5 Gsample/s
    16 channels,
    5 Gsample/s
    Protocol (optional)
    I 2 C, SPI, UART/RS-232/
    RS-422/RS-485, CAN, LIN
    I2C, SPI, UART/RS-232/
    RS-422/RS-485, CAN, LIN
    I2C, SPI, UART/RS-232/RS-422/
    RS-485, CAN, LIN, audio (I²S/
    LJ/RJ/TDM), ARINC, MIL
    I2C, SPI, UART/RS-232/
    RS-422/RS-485, CAN, LIN,
    audio (I²S), ARINC, MIL
    Generator(s)
    1 generator,
    4-bit pattern generator
    1 ARB,
    4-bit pattern generator
    1 ARB,
    4-bit pattern generator
    1 ARB,
    4-bit pattern generator
    Math
    +,–, *,/,FFT(128k points)
    )
    +,–, *,/,FFT(128k points)
    +,–, *,/,FFT(128k points),
    21 advanced functions
    +,–, *,/,FFT(128k points),
    21 advanced functions
    Rohde&Schwarz probe
    interface
    		--
    standard
    standard
    RF capability
    FFT
    FFT
    spectrum analysis
    spectrum analysis

    Benefits of R&S®RTM3000 Oscilloscope


    SEE SMALL SIGNAL DETAILS IN THE PRESENCE OF LARGE SIGNALS

    ▶ 10-bit ADC: 1024 levels, 4 times more than 8-bit ADC
    ▶ 500 µV/div: full bandwidth, no software magnification
    CAPTURE MORE TIME AT FULL BANDWIDTH
    ▶ 80 Msample: standard acquisition memory 8 to 40 times better
    ▶ 5 Gsample: fast sampling rate
    ▶ 400 Msample: segmented memory
    10.1" HIGH-RESOLUTION CAPACITIVE TOUCHSCREEN WITH GESTURE SUPPORT
    X-IN-1 OSCILLOSCOPE
    ▶ Oscilloscope
    ▶ Logic analyzer
    ▶ Protocol analyzer
    ▶Waveform and pattern generator
    ▶Digital voltmeter
    ▶Frequency analysis mode
    ▶Mask test mode
    ▶History and segmented memory mode
    FREQUENCY RESPONSE ANALYSIS (BODE PLOT)
    ▶ Analyze the frequency response of passive filters and amplifier circuits
    ▶ Perform control loop response measurements
    ▶ Perform power supply rejection ratio measurements
    ▶ Simple and fast documentation
    THE BEST CHOICE FOR POWER
    ►Analyze the input, output and transfer function of switched-mode power supplies
    ►Measurement wizard for fast results
    ►Simple and fast documentation
    ►Analyze harmonic current in line with conventional EN, MIL and RTCA standards
    SPECTRUM ANALYSIS: IDENTIFY INTERACTIONS BETWEEN TIME AND FREQUENCY
    ▶ Spectrogram: evolution over time
    ▶ Peak markers: automatic positioning
    PROTOCOL ANALYSIS: EFFICIENTLY DEBUG SERIAL BUSES
    THE RIGHT PROBE FOR THE BEST MEASUREMENT
    ▶ More than 30 dedicated probes
    ▶ Micro button for convenient instrument control
    ▶ 0.01% accuracy with R&S®ProbeMeter
    SPECIFICATIONS IN BRIEF
    Specifications in brief
    Vertical system
    Number of channels
    R&S®RTM3002; R&S®RTM3004
    2; 4
    Bandwidth (–3 dB) at 50 Ω
    R&S®RTM3002/3004 (with
    R&S®RTM-B2x2/-B2x3/-B2x5/-B2x10 options)
    100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz
    Rise time (calculated)
    R&S®RTM3002/3004 (with
    R&S®RTM-B2x2/-B2x3/-B2x5/-B2x10 options)
    3.5 ns, 1.75 ns, 1 ns, 700 ps, 350 ps
    Input impedance
    50 Ω ± 1.5% (meas.),
    1 MΩ ± 1% (meas.) || 14 pF ± 1 pF (meas.)
    Input sensitivity
    max. bandwidth in all ranges
    at 1 MΩ
    500 µV/div to 10 V/div
    at 50 Ω
    500 µV/div to 1 V/div
    DC gain accuracy
    offset and position = 0, maximum operating temperature change of ±5°C after self-alignment
    input sensitivity > 5 mV/div
    ±1.5% of full scale
    input sensitivity ≤ 5 mV/div
    ±2% of full scale
    ADC resolution
    10 bit, up to 16 bit with high resolution decimation
    Acquisition system
    Maximum realtime sampling rate
    2.5 Gsample/s; 5 Gsample/s, interleaved
    Acquisition memory
    standard;
    with R&S®RTM-K15 option
    40 Msample (80 Msample interleaved);
    400 Msample segmented memory
    Horizontal system
    Timebase range
    selectable between 0.5 ns/div and 500 s/div
    Trigger system
    Trigger types
    standard
    edge, width, video (PAL, NTSC, SECAM, ­PAL-M, SDTV 576i,
    HDTV 720p, HDTV 1080i, HDTV 1080p), pattern, line, ­serial
    bus, timeout
    option
    I2C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN,
    ARINC429, MIL-STD-1553
    MSO option
    Digital channels
    16 (2 logic probes)
    Sampling rate
    1.25 Gsample/s
    Acquisition memory
    standard;
    with R&S®RTM-K15 option
    40 Msample (80 Msample interleaved);
    400 Msample segmented memory
    Waveform generator
    Resolution, sample rate
    14 bit, 250 Msample/s
    Amplitude
    high Z; 50 Ω
    20 mV to 5 V (Vpp); 10 mV to 2.5 V (Vpp)
    DC offset
    high Z; 50 Ω
    ±5 V; ±2.5 V
    Signal forms frequency ranges
    sine
    0.1 Hz to 25 MHz
    pulse/rectangle
    0.1 Hz to 10 MHz
    ramp/triangle
    0.1 Hz to 1 MHz
    noise
    max. 25 MHz
    Arbitrary
    sampling rate; memory depth
    max. 10 Msample/s; 32k points
    General data
    Screen
    10.1" WXGA TFT color display (1280 × 800 pixel)
    Interfaces
    USB host with MTP, USB device, LAN, powerful web server for remote display and operation
    Audible noise
    28.3 dB(A)
    Dimensions
    390 mm × 220 mm × 152 mm (15.4 in × 8.66 in × 5.98 in)
    Weight
    3.3 kg (7.27 lb)
