    ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz

    Ask Lasest Price
    Brand Name : Keysight
    Model Number : E5080B
    Certification : ISO17025
    Price : Negotiation
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : In Stock
    Delivery Time : 1~3 Working Days
    • Product Details
    • Company Profile

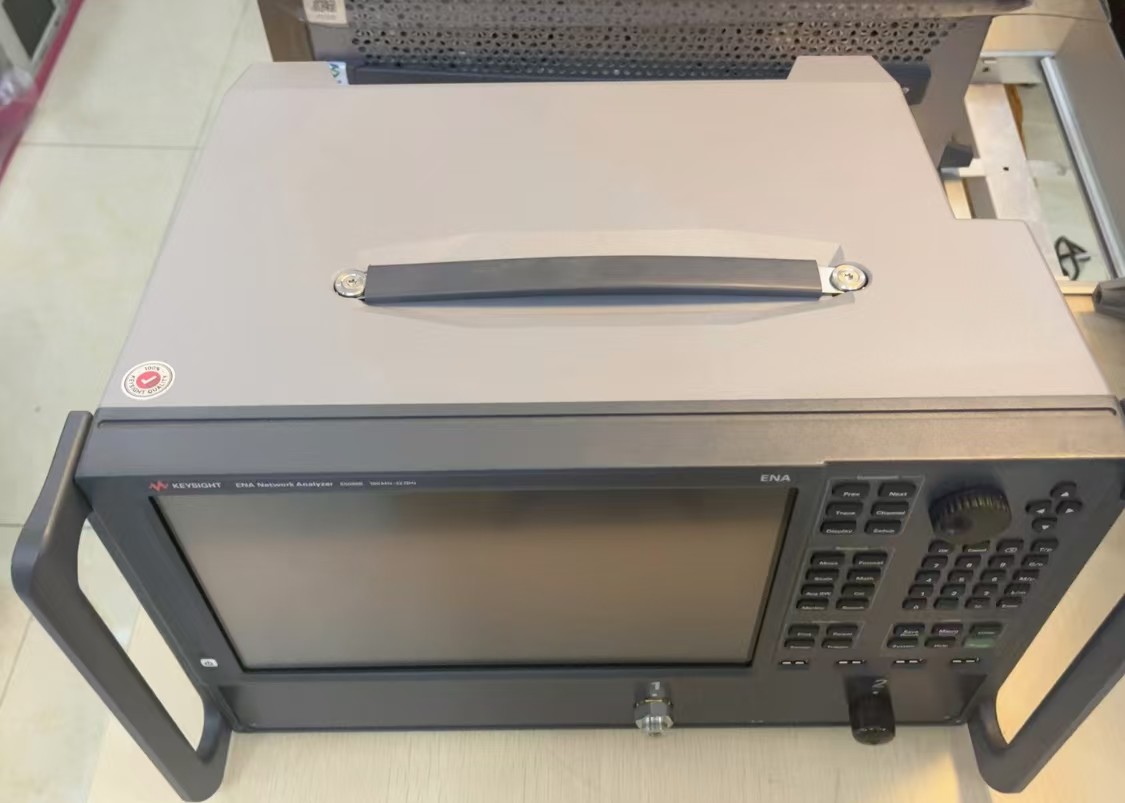

    ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz

    ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz

    Description of Keysight Vector Network Analyzer E5080B 4L0

    The E5080B VNA enables complete device characterization for passive components, amplifiers, mixers, and frequency converters. Integrated DC sources, bias tees, pulse generators, pulse modulators, and an internal second source enable more measurements on one instrument. Gain deeper insights with software applications including spectrum analysis, mixer measurements, and noise figure.


    The E5080B utilizes the same measurement science as other Keysight vector network analyzers such as the PNA, PXI, and USB VNA. The common software platform makes it easy to balance measurement, performance, and budget needs. This commonality guarantees measurement consistency, repeatability, and a common remote programming interface across R&D and manufacturing instruments.


    The E5080B eliminates the cost and complexity of configuring multiple instruments. Integrated hardware capabilities for a wide range of tests turn the E5080B into a complete measurement solution.

    The E5080B's options include:

    • DC sources
    • Pulse generators and modulators
    • Spectrum analysis
    • Noise figure measurements

    Network analyzer software tools enable you to investigate, characterize, and troubleshoot your designs in a variety of measurement applications. Simplify complex measurements on your E5080B with software applications such as advanced time domain analysis, spectrum analysis, pulsed-RF measurements, and more.


    The E5080B vector network analyzer provides a more comprehensive solution for R&D and manufacturing test with robust software application coverage, flexible hardware, and fast cycle time to accelerate your device characterization.

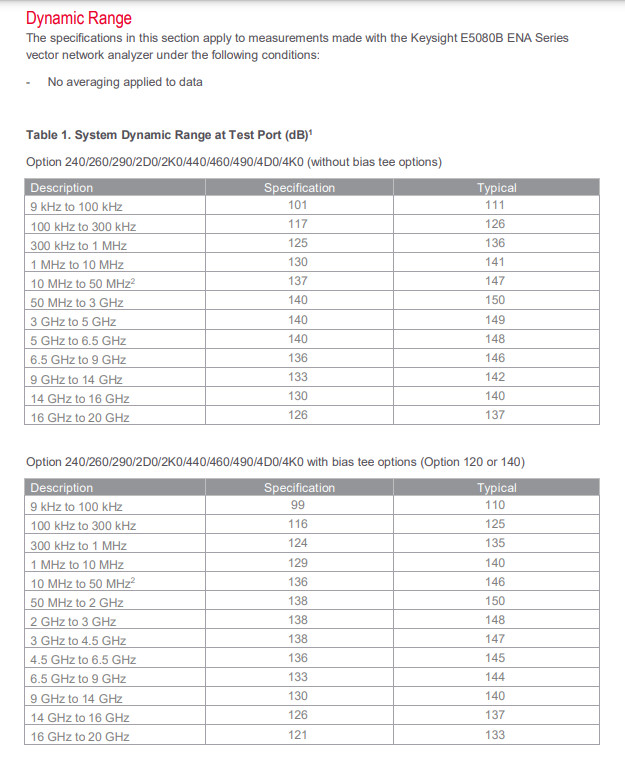

    E5080B ENA Series Vector Network Analyzer As devices become highly integrated, complete characterization requires a complete RF and microwave measurement solution. The E5080B brings R&D performance up to 20 GHz and flexibility to a midrange platform. Best-in-class dynamic range, trace noise, and temperature stability guarantee reliability and repeatability. Test consistently across your entire workflow with the same UI and SCPI commands as high-end PNAs. The E5080B enables complete device characterization for passive components, amplifiers, mixers, and frequency converters. You can perform more tests with one box with integrated features such as DC sources, bias tees, pulse generators, and pulse modulators. Gain deeper insights with software applications including spectrum analysis, mixer measurements, and noise figure. Choose from a 2- or 4- port option with frequency coverage from 9 kHz up to 20 GHz. The E5080B utilizes the same measurement science as other Keysight vector network analyzers (VNAs) such as the PNA, PXI, and USB VNA. A common software platform makes it easy to choose the right level of performance to match budget and measurement needs. This commonality guarantees measurement consistency, repeatability, and a common remote-programming interface across multiple instruments in R&D and manufacturing.


    ISO17025 Calibrated Keysight ENA Vector Network Analyzer E5080B 4L0 4 port test set 100 kHz to 26.5 GHz

    List of Options
    021Add pulse modulator to internal 1st source
    022Add pulse modulator to internal 2nd source
    090Spectrum analysis hardware, 9 kHz to 4.5 GHz
    091Spectrum analysis hardware, 9 kHz to 6.5 GHz
    092Spectrum analysis hardware, 9 kHz to 9 GHz
    093Spectrum analysis hardware, 9 kHz to 14 GHz
    094Spectrum analysis hardware, 9 kHz to 20 GHz
    095Spectrum analysis hardware, 100 kHz to 26.5 GHz
    096Spectrum analysis hardware, 100 kHz to 32 GHz
    097Spectrum analysis hardware, 100 kHz to 44 GHz
    098Spectrum analysis hardware, 100 kHz to 53 GHz
    120Add internal bias tees for 2-port E5080B up to 20 GHz
    140Add internal bias tees for 4-port E5080B up to 20 GHz
    172Add GPIB interface
    175Add analog input and output
    1A7Calibration + Uncertainties + Guardbanding
    1E5Add high stability timebase
    1NCEquipped with type-N connectors
    2402-port test set, 9 kHz to 4.5 GHz
    2602-port test set, 9 kHz to 6.5 GHz
    2902-port test set, 9 kHz to 9 GHz
    2D02-port test set, 9 kHz to 14 GHz
    2H02-port test set, 9 kHz to 18 GHz
    2K02-port test set, 9 kHz to 20 GHz
    2L02-port test set, 100 kHz to 26.5 GHz
    2M02-port test set, 100 kHz to 32 GHz
    2N02-port test set, 100 kHz to 44 GHz
    2P02-port test set, 100 kHz to 53 GHz
    4404-port test set, 9 kHz to 4.5 GHz
    4424-port test set, 9 kHz to 4.5 GHz with second source
    4604-port test set, 9 kHz to 6.5 GHz
    4624-port test set, 9 kHz to 6.5 GHz with second source
    4904-port test set, 9 kHz to 9 GHz
    4924-port test set, 9 kHz to 9 GHz with second source
    4D04-port test set, 9 kHz to 14 GHz
    4D24-port test set, 9 kHz to 14 GHz with second source
    4H04-port test set, 9 kHz to 18 GHz
    4H24-port test set, 9 kHz to 18 GHz with second source
    4K04-port test set, 9 kHz to 20 GHz with second source
    4K24-port test set, 9 kHz to 20 GHz with second source
    4L04-port test set, 100 kHz to 26.5 GHz
    4L24-port test set, 100 kHz to 26.5 GHz with second source
    4M04-port test set, 100 kHz to 32 GHz
    4M24-port test set, 100 kHz to 32 GHz with second source
    4N04-port test set, 100 kHz to 44 GHz
    4N24-port test set, 100 kHz to 44 GHz with second source
    4P04-port test set, 100 kHz to 53 GHz
    4P24-port test set, 100 kHz to 53 GHz with second source
    A6JANSI Z540-1-1994 Calibration
    S96007AAutomatic Fixture Removal
    S96007BAutomatic Fixture Removal
    S96010ATime Domain Analysis
    S96010BTime Domain Analysis
    S96011AEnhanced Time Domain Analysis with TDR
    S96011BEnhanced Time Domain Analysis with TDR
    S96025ABasic Pulsed-RF Measurements
    S96025BBasic Pulsed-RF Measurements
    S96029ANoise Figure Measurements with Vector Correction
    S96029BNoise Figure Measurements with Vector Correction
    S96082AScalar Mixer/Converter Measurements
    S96082BScalar Mixer/Converter Measurements
    S96083AVector and Scalar Mixer/Converter Measurements
    S96083BVector and Scalar Mixer/Converter Measurements
    S96084AEmbedded LO Capability
    S96084BEmbedded LO Capability
    S96086AGain-Compression Measurements
    S96086BGain-Compression Measurements
    S96089BDifferential and I/Q Device Measurements
    S96090ASpectrum Analysis
    S96090BSpectrum Analysis
    S96552BMultiport Calibration Assistant
    U8487A10 MHz – 50 GHz USB Thermocouple Power Sensor
    WIN10

    FAQ:

    1.Can you ship order to Canada or Australia ?
    Yes,we can .We send orders worldwide .
    2. What delivery method do you use ? and delivery time ?
    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
    3. What is your payment term?
    100% T/T payment before shipment.
    4. How can I ask any other question ?
    You can contact us online or leave us messages below.
