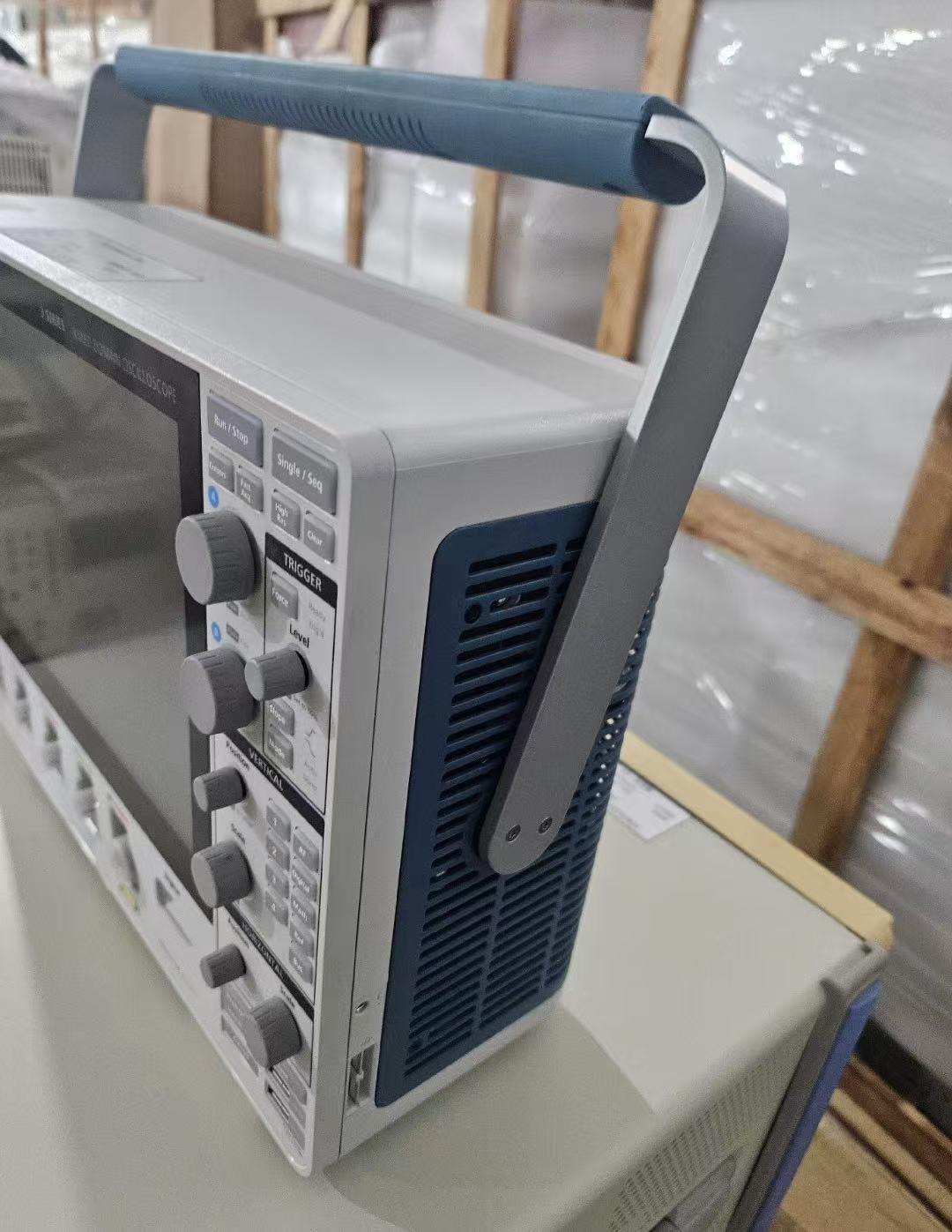

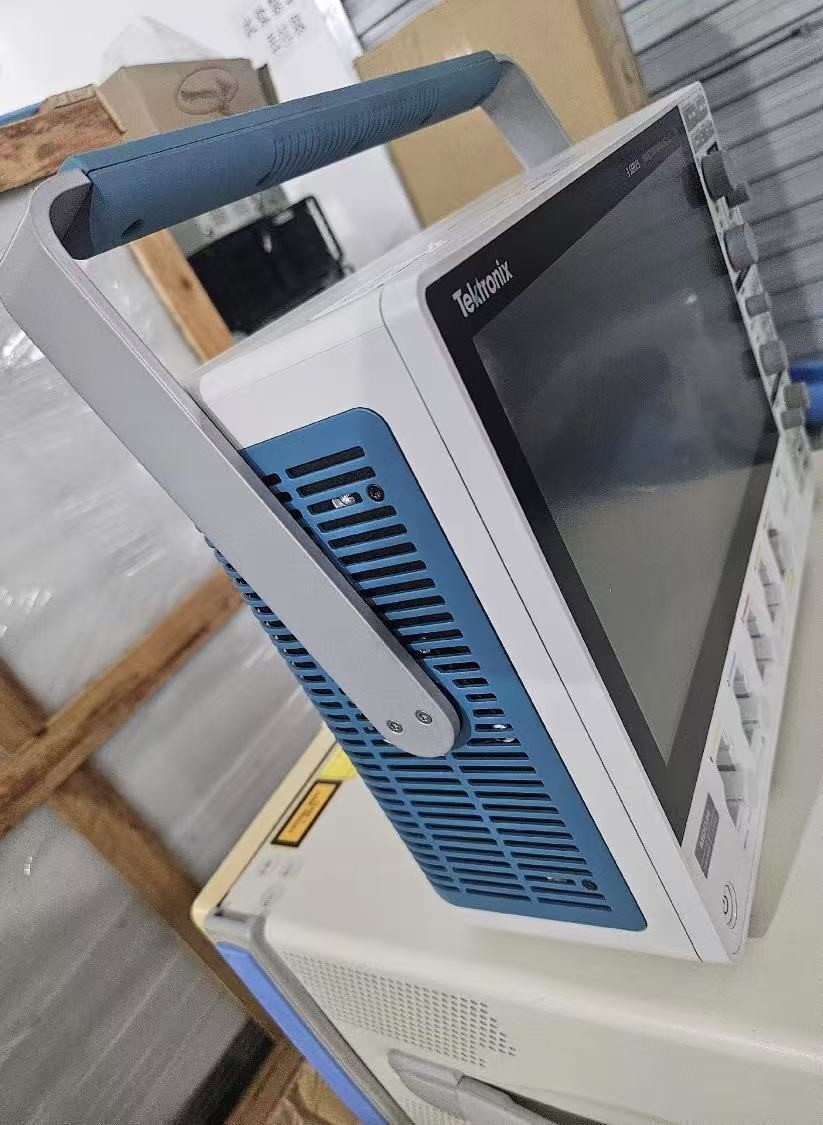

- 2 and 4 analog channel models
- 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz bandwidth models
- Bandwidth is upgradable (up to 1 GHz)
- Up to 5 GS/s sample rate
- 10 M record length on all channels
- >280,000 wfm/s maximum waveform capture rate
- Standard passive voltage probes with 3.9 pF capacitive loading and
250 MHz, 500 MHz or 1 GHz analog bandwidth
- Spectrum Analyzer
- Frequency range: 9 kHz - 1 GHz (standard) or 3 GHz (optional)
- Ultra-wide capture bandwidth up to 3 GHz
- Arbitrary Function Generator (optional)
- 13 predefined waveform types
- 50 MHz waveform generation
- 128 k arbitrary generator record length
- 250 MS/s arbitrary generator sample rate
- Digital Channels (optional)
- 16 digital channels
- 10 M record length on all channels
- 121.2 ps timing resolution
- Serial Bus Decode, Triggering and Search (optional)
- Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay,
MIL-STD-1553, ARINC429, and Audio standards
- Digital Voltmeter / Frequency Counter (Free with product
registration)
- 4-digit DC, AC RMS, and DC+AC RMS voltage measurements
- 5-digit frequency measurements
Typical applications
- Embedded design and IoT
Discover and solve issues quickly by performing system level debug
on mixed signal embedded systems including today's most common
serial bus technologies with the 3 Series MDO and support for a
broad set of common serial buses.
- Power design
Make reliable and repeatable voltage, current, and power
measurements using automated power quality, switching loss,
harmonics, ripple, modulation, and safe operating area measurements
with the widest selection of power probes in an affordable
solution.
- Education
Managing multiple instruments on a bench can be troublesome. The 3
Series MDO combines analog, digital, and RF measurements with a
signal source in a single, small (5.9 in., 149 mm deep) instrument.
The combination of a small instrument and high level of integration
aids in the teaching of various electronics principles as well as
in its usage for more sophisticated lab experiments. Full
upgradeability enables adding functionality over time as needs
change or budgets allow.
- Manufacturing Test and Troubleshooting
Size and space constraints can play havoc on a manufacturing floor.
The 3 Series MDO minimizes rack or bench space by integrating
multiple instruments into one small package. Integration reduces
cost associated with utilizing multiple different instrument types
in manufacturing test or troubleshooting stations.
- Service Installation and Maintenance
Having the right instruments when and where you need them is
critical. The 3 Series MDO combines analog waveforms, digital
logic, and spectrum analysis in a lightweight (11.7 lbs, 5.3 kg),
portable package - making it the perfect choice where space is
limited and flexibility is desired.
Exceptionally easy-to-use user interface lets you focus on the task
at hand
The Settings Bar - key parameters and waveform management
Waveform and scope operating parameters are displayed in a series
of badges in the Settings Bar that runs along the bottom of the
display. The Settings Bar provides immediate access for the most
common waveform management tasks. With a single tap, you can:
- Turn on channels
- Add math waveforms
- Add reference waveforms
- Add bus waveforms
- Enable 16 digital channels MSO
- Enable the Spectrum Analyzer
- Enable the integrated Arbitrary/Function generator (AFG)
- Enable the integrated digital voltmeter (DVM)
The Results Bar - analysis and measurements
The Results Bar on the right side of the display includes
immediate, one-tap access to the most common analytical tools such
as cursors, measurements, searches and bus decode results tables.
Ordering information
Use the following steps to select the appropriate instrument and
options for your measurement needs.
Step 1: Choose the 3 Series MDO base model
3 Series MDO family
- MDO32
- Mixed Domain Oscilloscope with (2) analog channels, (1) auxiliary
trigger input, a 1 GHz spectrum analyzer, (1) spectrum analyzer
input, and (1) logic analyzer input
- MDO34
- Mixed Domain Oscilloscope with (4) analog channels, a 1 GHz
spectrum analyzer, (1) spectrum analyzer input, and (1) logic
analyzer input
Standard accessories
Probes
- 1 GHz models
- TPP1000, 1 GHz bandwidth, 10X, 3.9pF. One passive voltage probe per
analog channel
- 350 MHz and 500 MHz models
- TPP0500B, 500 MHz bandwidth, 10X, 3.9 pF. One passive voltage probe
per analog channel
- 100 MHz and 200 MHz models
- TPP0250, 250 MHz bandwidth, 10X, 3.9 pF. One passive voltage probe
per analog channel
- Any model with 3-MSO option
- One P6316 16-channel logic probe and accessories
Step 2: Configure your 3 Series MDO by adding options
Instrument options
- 3-AFG
- Arbitrary Function Generator with 13 predefined waveforms,
arbitrary waveform generation, and frequency and amplitude
modulation.
- 3-MSO
- 16 digital channels; includes P6316 digital probe and accessories.
- 3-SA3
- Spectrum analyzer; frequency range from 9 kHz to 3 GHz and capture
bandwidth to 3 GHz.
- 3-SEC
- Enhanced instrument security to enable password protected control
of turning on/off all instrument ports and instrument firmware
update functionality.
Bandwidth options
Choose the bandwidth you need today by choosing one of these
bandwidth options. You can upgrade it later by purchasing an
upgrade kit.
- 3-BW-100
- 100 MHz Bandwidth for analog channels, 1 GHz spectrum analyzer
standard
- 3-BW-200
- 200 MHz Bandwidth for analog channels, 1 GHz spectrum analyzer
standard
- 3-BW-350
- 350 MHz Bandwidth for analog channels, 1 GHz spectrum analyzer
standard
- 3-BW-500
- 500 MHz Bandwidth for analog channels, 1 GHz spectrum analyzer
standard
- 3-BW-1000
- 1 GHz Bandwidth for analog channels, 1 GHz spectrum analyzer
standard
Power cord and plug options
- Opt. A0
- North America power plug (115 V, 60 Hz)
- Opt. A1
- Universal Euro power plug (220 V, 50 Hz)
- Opt. A2
- United Kingdom power plug (240 V, 50 Hz)
- Opt. A3
- Australia power plug (240 V, 50 Hz)
- Opt. A5
- Switzerland power plug (220 V, 50 Hz)
- Opt. A6
- Japan power plug (100 V, 50/60 Hz)
- Opt. A10
- China power plug (50 Hz)
- Opt. A11
- India power plug (50 Hz)
- Opt. A12
- Brazil power plug (60 Hz)
- Opt. A99
- No power cord
Step 3: Select triggering and analysis options
Triggering and analysis options
- 3-BND
- Adds an application bundle (includes all serial options and power
analysis option).
- 3-SRAERO
- Adds aerospace serial triggering and analysis (MIL-STD-1553,
ARINC429).
- 3-SRAUDIO
- Adds audio serial triggering and analysis (I2S, LJ, RJ, TDM).
- 3-SRAUTO
- Adds automotive serial triggering and analysis (CAN, CAN FD, LIN,
FlexRay).
- 3-SRCOMP
- Adds computer serial triggering and analysis (RS-232/422/485/UART).
- 3-SREMBD
- Adds embedded serial triggering and analysis (I2C, SPI).
- 3-SRUSB2
- Adds USB serial triggering and analysis (USB 2.0 LS, FS, HS).
- 3-PWR
- Adds power measurement and analysis.
