    Keysight U1620A Service Oscilloscope, 200 MHz, 2-Channel, Floating Instrument

    Ask Lasest Price
    Brand Name : Keysight
    Model Number : U1620A
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : In Stock
    Delivery Time : 1~3 Working Days
    • Product Details
    • Company Profile

    Keysight U1620A Service Oscilloscope, 200 MHz, 2-Channel, Floating Instrument

    Keysight U1620A | Service oscilloscope, 200 MHz, 2-channel, floating

    Description of Keysight (Agilent) U1620A

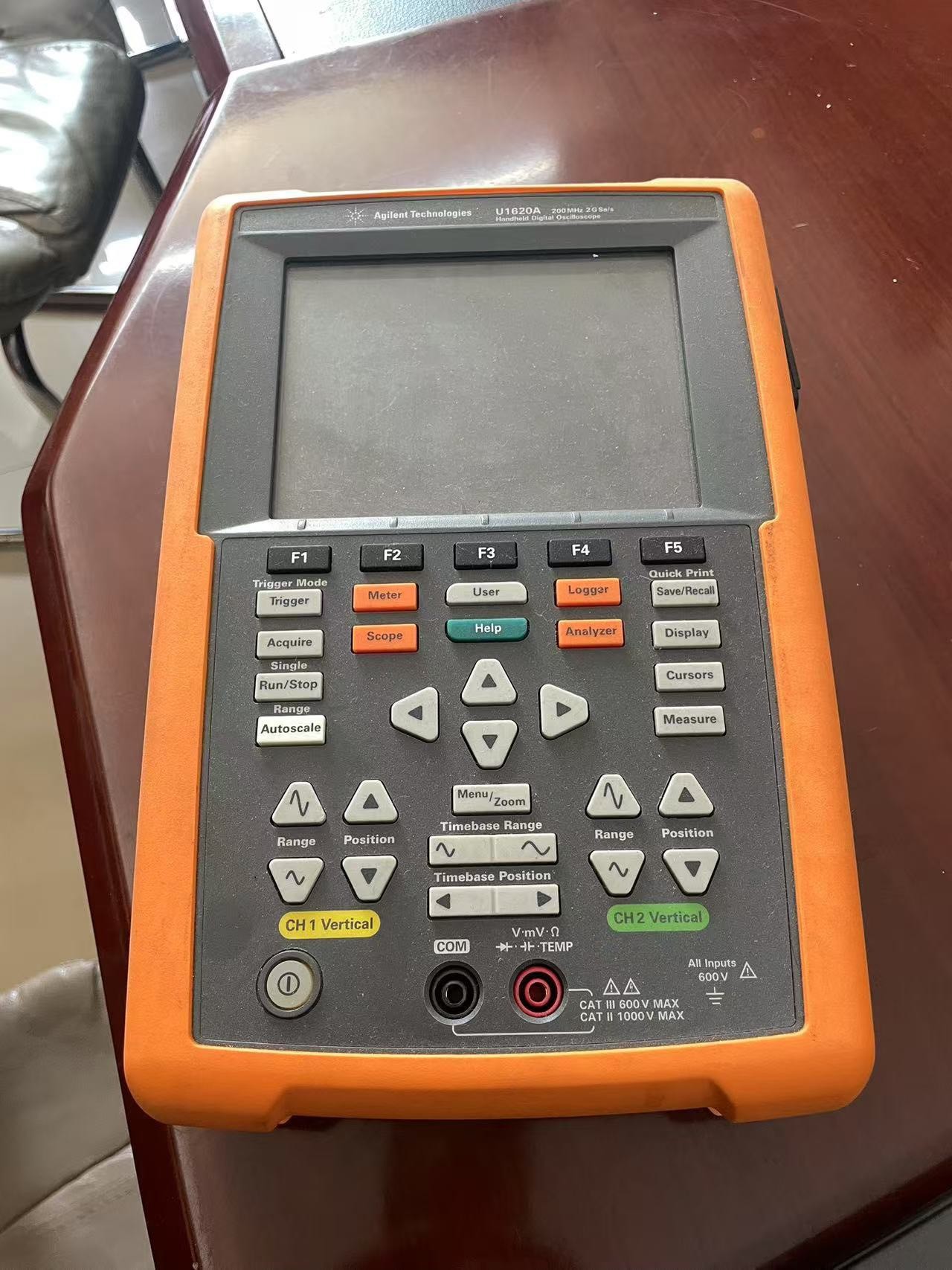

    2-channel digital handheld oscilloscope U1620A from Keysight (formerly Agilents electronic measurement technology) with 200MHz bandwidth, 2 MegaPoints memory depth, VGA color display and potential-free inputs.

    • Bandwidth 200 MHz
    • 2 floating inputs
    • 600 V CAT III channel to channel separation
    • Storage depth 2 megapoints
    • Sampling rate 2 GSa / s
    • Vertical resolution 8 bits
    • Vertical sensitivity: 2 mV / div to 50 V / div
    • Trigger system: normal, single, auto
    • Trigger types: Edge, Glitch, TV, Nth Edge, CAN, LIN
    • 30 automatic measurement functions such as: automatic measurements: delay, duty cycle (+/-), rise / fall time, frequency, period, phase shift, T-max, T-min, width (+/-), amplitude, average, base, peak , Cycle average, maximum, minimum, overshoot, peak-to-peak, undershoot, standard deviation, top, Vrms (AC / DC), active / apparent / reactive power, power factor
    • Math functions
    • FFT analysis 1024 points
    • Brilliant 14.5 cm VGA color display with a wide viewing angle
    • 3 selectable views (indoor, outdoor and night view)
    • Built-in multimeter and data logger
    • Resolution 4.5 digits in the digital multimeter
    • Multimeter functions: voltage DC / AC, current AC / DC, resistance, capacitance, continuity, diode, temperature, frequency
    • Data logger function to the PC
    • 10 selectable languages for operation (German, English, etc.)
    • Built-in help system at the push of a button
    • Storage option: 10 setups and signal data
    • Interfaces: USB 2.0 full-speed host, USB 2.0 full-speed client
    • Dimensions W183 x H270 x D65 mm
    • Weight <2.5 kg

    Technical Data
