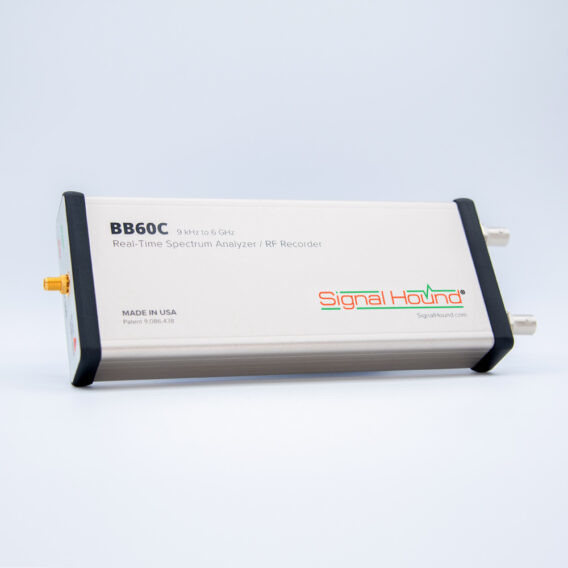

The Signal Hound BB60C Real-Time RF Spectrum Analyzer and Recorder
is a 9 kHz to 6 GHz Spectrum Analyzer and RF Recorder with an
instantaneous bandwidth of 27 MHz, and sweep speeds of 24 GHz/sec.
The BB60C real-time RF spectrum analyzer streams 140 MB/sec of
digitized RF to your PC utilizing USB 3.0, providing an
instantaneous bandwidth of 27 MHz, and sweep speeds of 24 GHz/sec.
The BB60C bettered performance over previous versions, including
improving spurious-free dynamic range (SFDR) by 20 dB, flattening
the noise floor and band transitions by more than 8 dB, and
extending available operating temperatures down to -40ºC and up to
+65ºC instead of the previous model’s 0ºC to +50ºC range. The BB60C
design has been tested and works flawlessly, with calibrated
accuracy, for a 3 hour cold soak at -40ºC and also during a 24 hour
hot soak at +65ºC.
The BB60C also adds new functionality in the form of configurable
I/Q streaming bandwidths which will be retroactively available on
the BB60A.
As a spectrum analyzer, our proprietary application programming
interface (API) can perform up to 1.2 million FFT spectrums or 320
million FFT points every second, delivering real-time spectrum data
to our GUI application, Spike, or to your own software application. Because of these immense
processing requirements, we recommend a desktop PC with an Intel
quad-core i7-2600 or better, or a laptop with an i7-3612QM or
better.
APPLICATIONS of Signal Hound BB60C Real-Time RF Spectrum Analyzer
- General Purpose RF Test & Measurement
- EMC pre-compliance
- Phase Noise Characterization
- EVM Measurement
- Channel Characterization
- CCDF
- WiFi Characterization
- BlueTooth Characterization
- Calibration
- Manufacturing Test
- RF Power Measurement
- Demodulation
- Antenna Pattern Measurement
FEATURES of Signal Hound BB60C Real-Time RF Spectrum Analyzer
- Upto 24 GHz/sec sweep speed
- 9 kHz to 6 GHz frequency range
- Wide dynamic rangefrom-158 dBm to +10 dBm
- Resolution bandwidths available from 10 Hz to 10 MHz
- 27 MHz instantaneous bandwidth
- Real-time Analysis Features
BB60C Real-Time Spectrum Analyzer
| Production Specifications |
| Frequency Range | 9 kHz to 6.0 GHz |
| Sweep Speed | |
Displayed Average Noise Level (DANL) | Input Frequency Range dBm/Hz - 9 kHz to 500 kHz -140 dBm
- 500 kHz to 10 MHz -154 dBm
- 10 MHz to 6 GHz -158 dBm+1.1 dB/GHz
|
| I/Q Acquisition Modes | Calibrated Streaming I/Q:Up to 27 MHz of selectable I/Q streaming
bandwidth |
| Timebase Accuracy | |
| Resolution Bandwidths (RBW) | |
| Amplitude Accuracy | Range:+10 dBm to DANL - +/-2.0 dB(Flattop Windowing)
|
Residual Responses REF LEVELs-50 dBm | Input Frequency Range - 500 kHz to 6 GHz
- 500 kHz to 6 GHz
| Residual Level -106 dBm -103 dBm | Applicable Serial Prefix 4119, 4150, 4226, 4296 5047 and Higher |
Phase Noise at 1 GHz Center Frequency | Offset Frequency - 100 Hz
- 1 kHz
- 10 kHz
- 100 kHz
- 1 MHz
| dBc/Hz |
| Lo Leakage at RF Input | |
| Spurious Mixer Responses | Input Frequency Range | Spurious Level -50 dBc |
| Synchronization | 1 PPS GPS input port enables ±50ns time stamping |
| Operating Temperature | Standard 32°F to 149°F(0℃ to+65℃) |
| Size and Weight | - 8.63"×3.19"×1.19"(219mm ×81mm ×30mm) ·1.10 Ibs. (0.50 kg)
|
| Power Consumption | |
| Interface | USB 3.0 |
| System Requirements | Windows or Linux Operating System,x64_86 architecture |
|
| Ordering Options |
| Standard,Temperature Range 32°F to 149°F(0C to+65℃) |
| Option 1,Temperature Range -40°F to 149°F(-40℃ to +65℃) |
| Option 10,External 5V Input(External Power Supply Not Included) |
