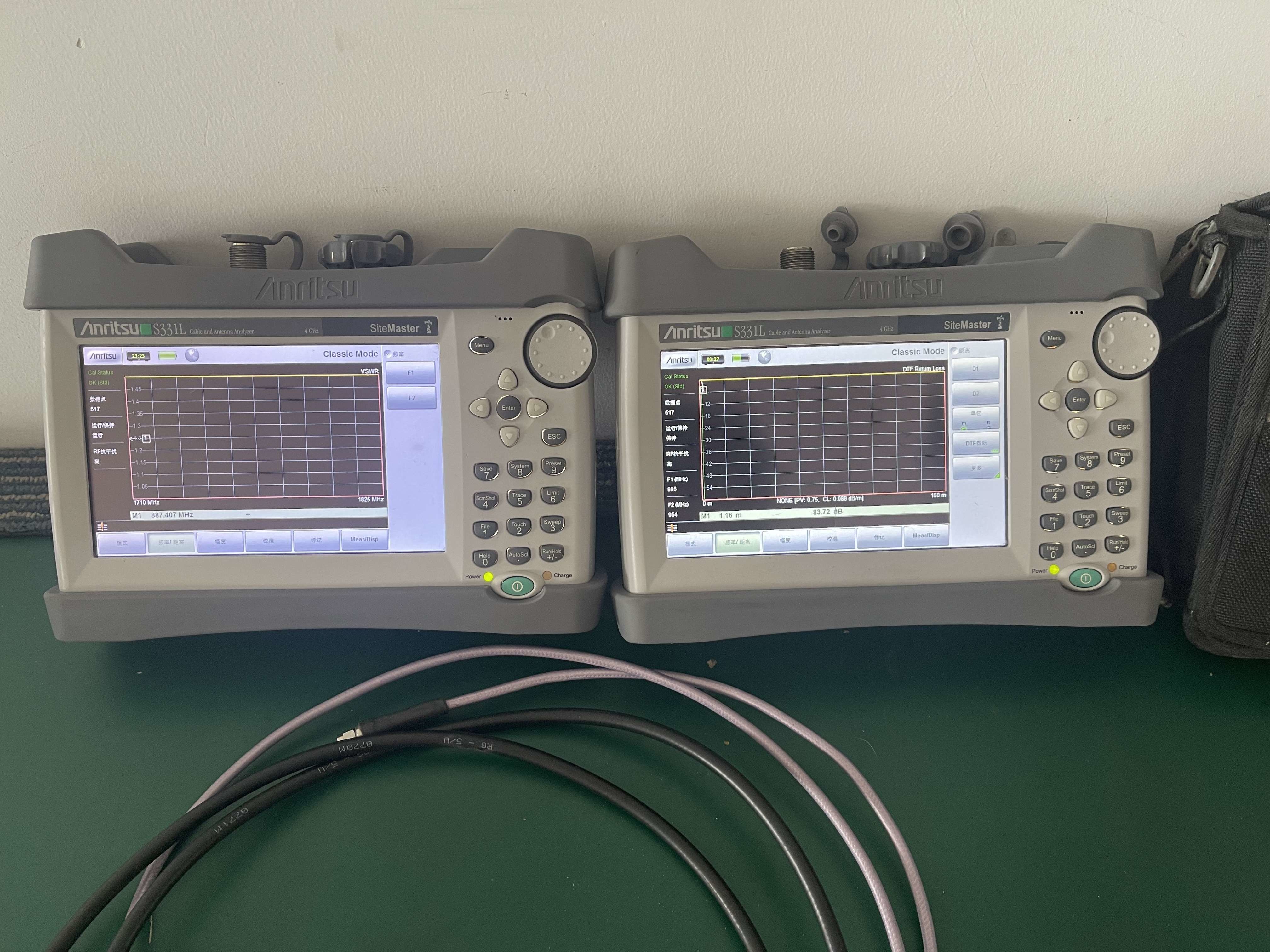

The S331L is a rugged, handheld cable and antenna analyzer.
Utilizing the latest advancements in technology, the S331L has been
optimized for field conditions, is easy to use, and has efficient
sweep management capabilities. The S331L delivers an entire workday
of battery operating time. With its large outdoor viewable 7” TFT
touch screen display, intuitive GUI, and classic mode, the S331L
can significantly increase a user’s efficiency in the field.
- Return Loss
- VSWR
- Cable Loss
- Smith Chart (50/75 ohm selectable)
- 1-port Phase
- Distance-to-Fault Return Loss
- Distance-to-Fault VSWR
- RF Power (50 MHz to 4 GHz)
- VIP Mode; Optical connector inspection with IEC 61300-3-35 based
Pass/Fail standard (requires USB Video Inspection Probe G0306A,
sold separately)
The S331L is the highest value in a rugged, handheld cable and
antenna analyzer. The S331L replaces the current value line S331D
which is part of the longest running portable cable and antenna
analyzer family in history. Utilizing the latest advancements in
technology, the S331L has been optimized for field conditions, is
easy to use, and has efficient sweep management capabilities. The
S331L delivers an entire workday of battery operating time, the
most ever offered in a handheld cable and antenna analyzer. With
its large outdoor viewable 7” TFT touch screen display, new
intuitive GUI, and classic mode that mimic the S331D basic
measurement flow, the S331L is very easy to use, and can
significantly increase a user’s efficiency in the field.
Features of Anritsu S331L:
| Interference Immunity |
|---|
| On-Channel | +17 dBm outside calibrated sweep range |
| On-Frequency | +13 dBm within calibrated sweep range |
| Return Loss |
|---|
| Measurement Range | 0 dB to 60 dB |
| Resolution | 0.01 dB |
| VSWR |
|---|
| Measurement Range | 1:1 to 65:1 |
| Resolution | 0.01 |
| Distance-to-Fault |
|---|
| Vertical Range Return Loss | 0 dB to 60 dB |
| Vertical Range VSWR | 1:1 to 65:1 |
| 1-Port Phase |
|---|
| Measurement Range | -180° to +180° |
| Test Equipment |
|---|
| Freq (MHz) | 2MHz-4GHz |
| Warranty | 1 Year |
| Frequency |
|---|
| Range | 2 MHz to 4 GHz |
| Accuracy | +/- 5ppm @ 23° C +/- 3° C |
| Resolution | 1 kHz (RF immunity low), 100 kHz (RF immunity high) |
| Output Power |
|---|
| High | 0 dBm, typical |
| Low | -30 dBm, typical |
| Cable Loss |
|---|
| Measurement Range | 0 dB to 30 dB |
| Resolution | 0.01 dB |
| Power |
|---|
| Output Power | -3 dBm, typical |
| Return Loss |
|---|
| Measurement Range Resolution | 0 to 60 dB |
| Weight | 4.4 lbs |
List of Options
The S331L is an all-inclusive instrument with a built-in
InstaCal™/Power Meter module. The S331L arrives fully capable of
measuring:
- VSWR
- Return Loss
- Cable Loss
- Distance-To-Fault VSWR
- Distance-To-Fault Return Loss
- RF Power
No options are required to perform these measurements, however a
test port cable is required to complete calibration(s). Please be
sure to refer to the brochure or datasheet for additional
accessories such as a phase stable test port cable or hard transit
case to complement your S331L.
