Keysight E5080B VNA Complete Measurement Solution for Passive Components Amplifiers and Mixers with Integrated DC Sources 4-port test set, 9 kHz to 20

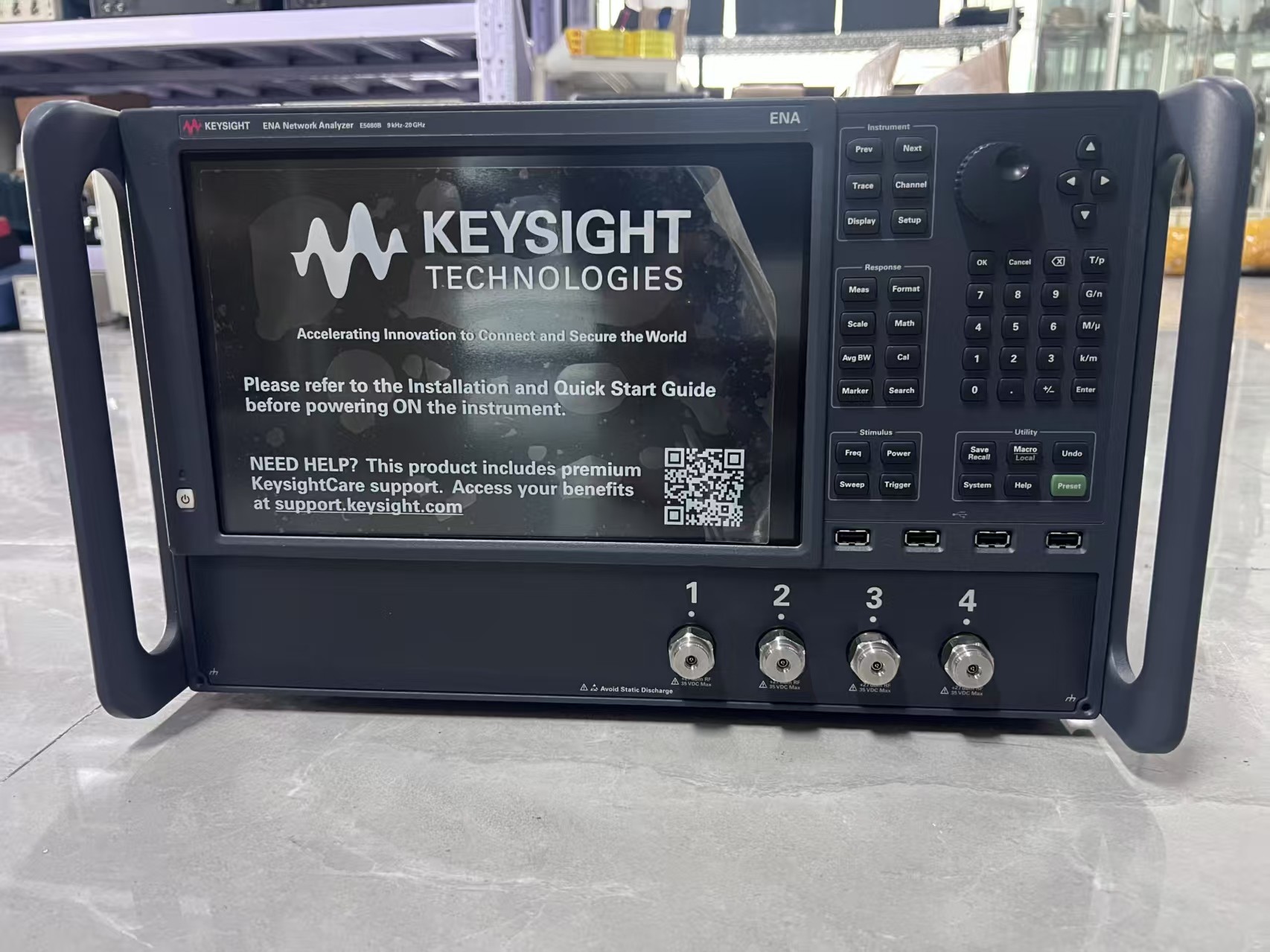

Keysight ENA Vector Network Analyzer E5080B 4K0 4 port test set 9 kHz to 20GHz

Description of Keysight Vector Network Analyzer E5080B 4K0

9 kHz to 4.5/6.5/9/14/20 GHz, 100 kHz to 26.5/32/44/53 GHz
The most flexible and integrated ENA network analyzer
Choose from a wide range of measurement application to gain deeper insight into your RF test
Second source available on 4-port models (Opt. 4x2)
Features the same intuitive GUI as Keysight’s high-performance network analyzers
E5071C code compatibility

Maximum Frequency: 53 GHz

Minimum Frequency: 9 kHz / 100 kHz

SA Start Frequency: 9 kHz / 100 kHz

System Dynamic Range: > 140 dB

Output Power: 10 dBm

Trace Noise: 0.0015 dBrms (10 kHz IFBW)

Number of Built-In Ports: 2 or 4 ports (2nd source (optional) on 4-ports)

Harmonics: -25 dBc (Typical)

Best Speed at 201 Point, 1 Sweep: 1.6 msec

Instrument Type: Benchtop

Applications:

S-Parameters
Signal Integrity
Balance Measurements

Components:

Cables
Antennas
Mixers/Frequency Converters
Filters/Duplexers
Amplifiers
Connectors
Isolators

System Features:

Internal Bias-tees (optional, up to 20 GHz)
Built-in DC Sources (optional)
GPIB Interface (optional)
Device Handler I/O
Device Test, Application I/O
Removal SSD
Digital Interfaces (Ethernet, USB2.0/3.0, DisplayP

DANL @1 GHz: -150 dBm/Hz (Typical)

Phase Noise @1 GHz (1 MHz offset): -128 dBc/Hz (Typical)

Phase Noise @1 GHz (10 kHz offset): -103 dBc/Hz (Typical)

TOI @1 GHz (3rd Order Intercept): +22 dBm

Benchtop: Yes

Temperature Stability: 0.005 dB/ ⁰C (Typical)

Weight: 14 kg (2-port), 15 kg (4-port)

List of Options for E5080B

021	Add pulse modulator to internal 1st source
022	Add pulse modulator to internal 2nd source
090	Spectrum analysis hardware, 9 kHz to 4.5 GHz
091	Spectrum analysis hardware, 9 kHz to 6.5 GHz
092	Spectrum analysis hardware, 9 kHz to 9 GHz
093	Spectrum analysis hardware, 9 kHz to 14 GHz
094	Spectrum analysis hardware, 9 kHz to 20 GHz
095	Spectrum analysis hardware, 100 kHz to 26.5 GHz
096	Spectrum analysis hardware, 100 kHz to 32 GHz
097	Spectrum analysis hardware, 100 kHz to 44 GHz
098	Spectrum analysis hardware, 100 kHz to 53 GHz
120	Add internal bias tees for 2-port E5080B up to 20 GHz
140	Add internal bias tees for 4-port E5080B up to 20 GHz
172	Add GPIB interface
175	Add analog input and output
1A7	Calibration + Uncertainties + Guardbanding
1E5	Add high stability timebase
1NC	Equipped with type-N connectors
240	2-port test set, 9 kHz to 4.5 GHz
260	2-port test set, 9 kHz to 6.5 GHz
290	2-port test set, 9 kHz to 9 GHz
2D0	2-port test set, 9 kHz to 14 GHz
2H0	2-port test set, 9 kHz to 18 GHz
2K0	2-port test set, 9 kHz to 20 GHz
2L0	2-port test set, 100 kHz to 26.5 GHz
2M0	2-port test set, 100 kHz to 32 GHz
2N0	2-port test set, 100 kHz to 44 GHz
2P0	2-port test set, 100 kHz to 53 GHz
440	4-port test set, 9 kHz to 4.5 GHz
442	4-port test set, 9 kHz to 4.5 GHz with second source
460	4-port test set, 9 kHz to 6.5 GHz
462	4-port test set, 9 kHz to 6.5 GHz with second source
490	4-port test set, 9 kHz to 9 GHz
492	4-port test set, 9 kHz to 9 GHz with second source
4D0	4-port test set, 9 kHz to 14 GHz
4D2	4-port test set, 9 kHz to 14 GHz with second source
4H0	4-port test set, 9 kHz to 18 GHz
4H2	4-port test set, 9 kHz to 18 GHz with second source
4K0	4-port test set, 9 kHz to 20 GHz with second source
4K2	4-port test set, 9 kHz to 20 GHz with second source
4L0	4-port test set, 100 kHz to 26.5 GHz
4L2	4-port test set, 100 kHz to 26.5 GHz with second source
4M0	4-port test set, 100 kHz to 32 GHz
4M2	4-port test set, 100 kHz to 32 GHz with second source
4N0	4-port test set, 100 kHz to 44 GHz
4N2	4-port test set, 100 kHz to 44 GHz with second source
4P0	4-port test set, 100 kHz to 53 GHz
4P2	4-port test set, 100 kHz to 53 GHz with second source
A6J	ANSI Z540-1-1994 Calibration
S96007A	Automatic Fixture Removal
S96007B	Automatic Fixture Removal
S96010A	Time Domain Analysis
S96010B	Time Domain Analysis
S96011A	Enhanced Time Domain Analysis with TDR
S96011B	Enhanced Time Domain Analysis with TDR
S96025A	Basic Pulsed-RF Measurements
S96025B	Basic Pulsed-RF Measurements
S96029A	Noise Figure Measurements with Vector Correction
S96029B	Noise Figure Measurements with Vector Correction
S96082A	Scalar Mixer/Converter Measurements
S96082B	Scalar Mixer/Converter Measurements
S96083A	Vector and Scalar Mixer/Converter Measurements
S96083B	Vector and Scalar Mixer/Converter Measurements
S96084A	Embedded LO Capability
S96084B	Embedded LO Capability
S96086A	Gain-Compression Measurements
S96086B	Gain-Compression Measurements
S96089B	Differential and I/Q Device Measurements
S96090A	Spectrum Analysis
S96090B	Spectrum Analysis
S96552B	Multiport Calibration Assistant
U8487A	10 MHz – 50 GHz USB Thermocouple Power Sensor
WIN10

Keysight E5080B VNA Complete Measurement Solution for Passive Components Amplifiers and Mixers with Integrated DC Sources 4-port test set, 9 kHz to 20

FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
