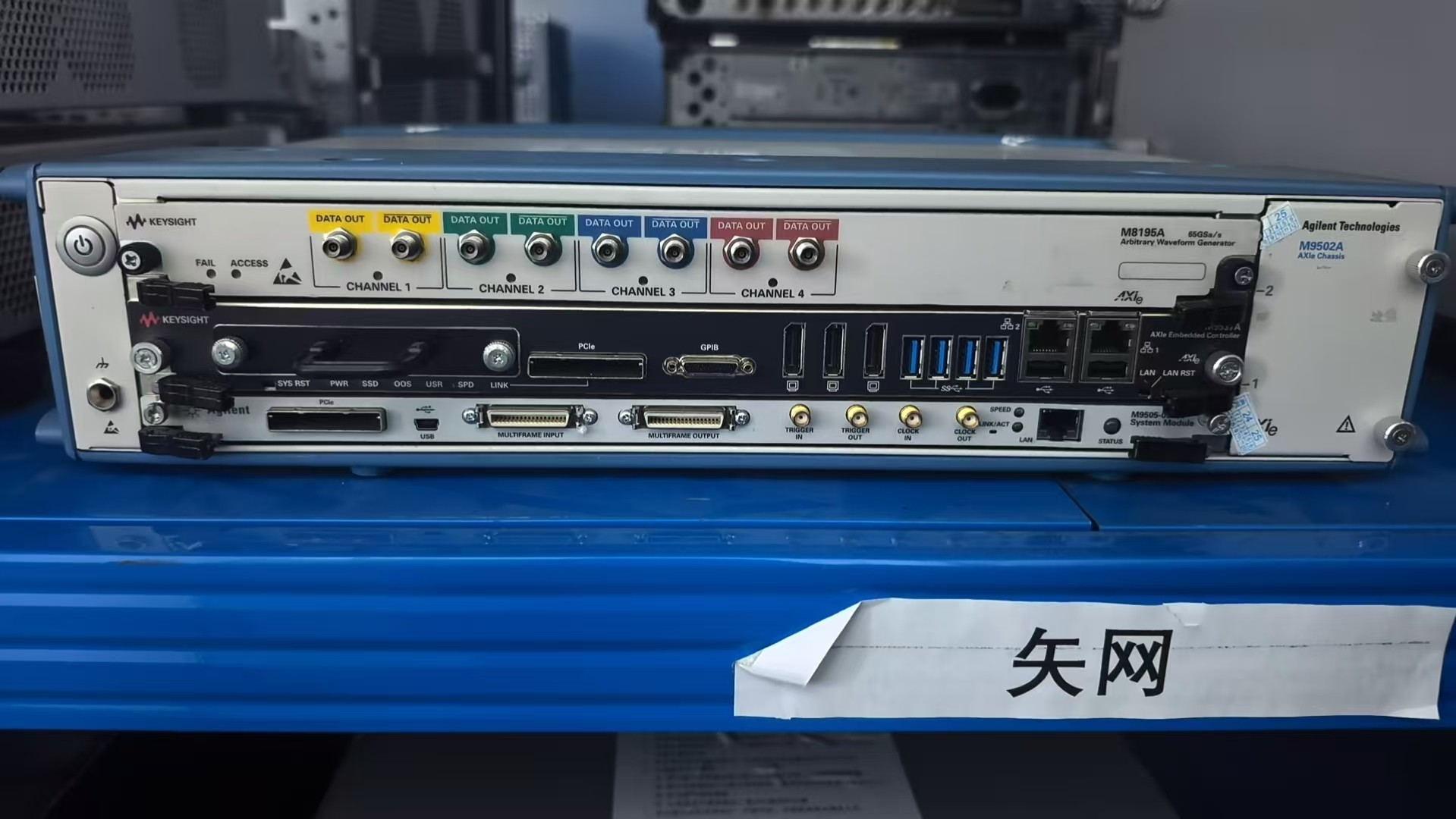

Keysight (Agilent) M8195A 65 GSa/s Arbitrary Waveform Generator
Description of Keysight Agilent M8195A
The Keysight M8195A arbitrary waveform generator (AWG) provides up
to 65 GSa/s, 25 GHz bandwidth, 8 bits vertical resolution, and up
to 4 channels in a 1-slot AXIe module - simultaneously. As devices
and interfaces become faster and more complex, the M8195A AWG gives
you the versatility to create the signals you need for digital
applications, advanced research, wideband radar, satcom, and
optical communications. Advanced 3-level sequencing allows even
longer signal scenarios. An external dynamic control is available
for the case of a M8197A module synchronizing several M8195A
modules. The M8195A AWG features a trigger input with a delay
accuracy of ±20 ps in conjunction with a M8197A multi-channel
synchronization module. In conjunction with the N5990A software
option 151 & 153 the M8195A provides a sink test solution for HDMI
and MHL. The M8195A AWG can also be controlled by the M8070A Bit
Error Ratio Test system software with the M8085A software plug-in
to create MIPI C-PHY™ and D-PHY™ standard conformant test signals.
The M8195A AWG combined with the 81195A optical modulation
generator software introduces an innovative real-time approach
which speeds up your test by a factor of up to 100. It allows
signal and impairment generation in real time. FIR filters and
other DSP functions are used for pulse-shaping and changing optical
stress conditions such as polarization mode dispersion (PMD) or
phase noise. Go where you have never been able to test before: with
real-time mode, sequencing and deep memory - explore your
possibilities. Additional Information: The M8195A is also available
in a system bundle M8195S, which is dynamically configured
depending on the required number of channels. In addition to the
module itself, an AXIe chassis, embedded controller or external PC
connectivity will automatically be added and the system is shipped
pre-configured.
List of Options for M8195A
| 001 | Arbitrary Waveform Generator, 1 Channel, 65 GSa/s |
| 002 | Arbitrary Waveform Generator, 2 Channels, 65 GSa/s |
| 004 | Arbitrary Waveform Generator, 4 Channels, 65 GSa/s |
| 16G | Upgrade to 16 GSa Memory |
| 1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) |
| 1NP | DUT Control Interface, Network/Floating, Perpetual License |
| 1TP | DUT Control Interface, Transportable, Perpetual License |
| 810 | Matched Cable Pair for M8195A AWG, 2.92 mm |
| BU1 | Bundle consisting of one M9505A 5-slot AXIe Chassis with USB Option
and one M9537A AXIe Embedded PC Controller |
| BU2 | Bundle consisting of one M9502A 2-slot AXIe Chassis with USB Option |
| BU3 | Bundle consisting of one M9502A 2-slot AXIe Chassis with USB Option
and one M9537A AXIe Embedded PC Controller |
| FSW | Fast Switching |
| M9048A | PCIe Desktop Adapter: Gen 2, x8, clock isolation |
| N6171A | MATLAB Software |
| N6171A-M01 | MATLAB-Basic Package, individual license - node-locked |
| N6171A-M02 | MATLAB-Standard Package, individual license - node-locked |
| N6171A-M03 | MATLAB-Advanced Package, individual license - node-locked |
| ONP | System Software for M8000 Series of BER Test Solutions,
Network/Floating, Perpetual License |
| OSP | Optical Signal Properties, transportable, perpetual License |
| OTP | System Software for M8000 Series of BER Test Solutions,
Transportable, Perpetual License |
| RSP | Real-time Signal Processing, transportable, perpetual License |
| SCD | Standard Calibration Document |
| SEQ | Sequencer |
| U12 | Arbitrary Waveform Generator Upgrade of M8195A-R12 or -E52 to
Revision 2 |
| U14 | Arbitrary Waveform Generator Upgrade of M8195A-R14 or -E54 to
Revision 2 |
| Y1202A | PCIe cable: x8, 2.0m |
| Z54 | Calibration Certificate for Z540 |
Key Applications
As devices and interfaces become faster and more complex, the
M8195A AWG gives you the versatility to create the signals you need
for digital applications, optical and electrical communication,
advanced research, wideband radar and satcom.
- Coherent optical – a single M8195A module c an generate 2 independent I/Q baseband
signals (dual polarization = 4 channels) at up to 32 GBaud and
beyond
- Multi-level / Multi-channel digital signals - generate NRZ, PAM4, PAM8, etc. signals at up to 32 GBaud. In
addition, protocols such as HDMITM, C-PHYTM and D-PHYTM are supported. Embed/De-embed channels, add Jitter, ISI, noise and
other distortions
- Physics, chemistry and electronics research – generate any mathematically defined arbitrary waveforms,
ultra-short yet precise pulses and extremely wideband chirps
- Wideband RF/µW - generate extremely wideband RF signals with an instantaneous
bandwidth of DC to 25 GHz for aerospace/defense/communication
applications
- Random interference (RI) source to application, requires M8070A
