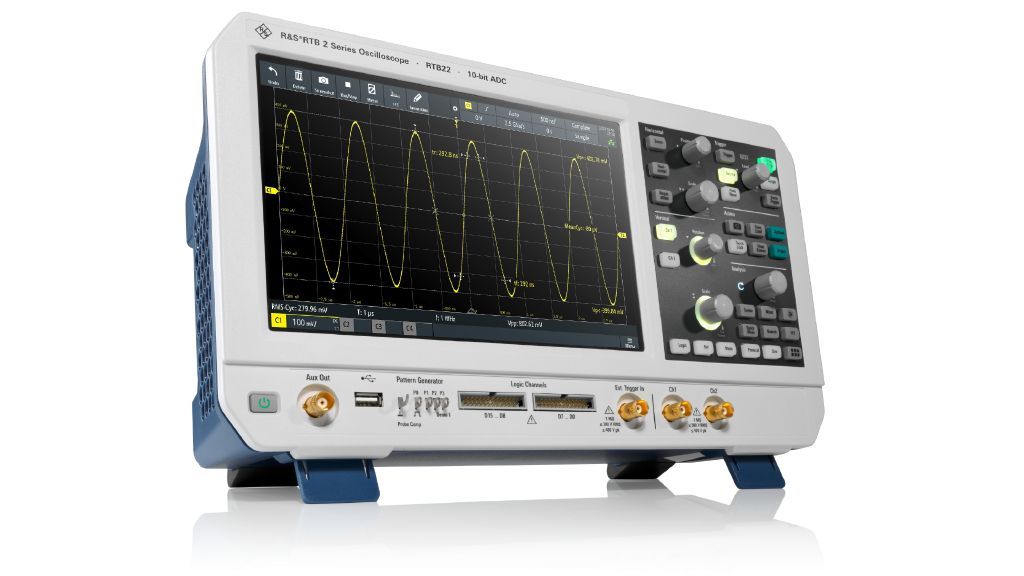

The R&S®RTB 2 series oscilloscopes
Power of ten for every task, everyday
The R&S®RTB 2 series oscilloscopes combine the power of ten
with smart operating concepts, making them the ideal all-purpose
tool for students, hobbyists, technicians and engineers. As a
successor to the highly capable R&S®RTB2000, the R&S®RTB 2
series features a 10-bit ADC, 10 Msample memory, and a 10.1-inch
touchscreen.
Additionally, the R&S®RTB 2 series includes an integrated
arbitrary waveform generator history and segmented memory
capabilities. Furthermore, all RTB 2 models are MSO-ready, allowing
the use of up to 16 digital channels with the appropriate probes.
These oscilloscopes offer four times the vertical resolution of
standard 8-bit ADCs while maintaining fast sampling rates at all
times. With the largest display and highest resolution in their
class, they provide extensive capabilities for university
laboratories, troubleshooting embedded designs during development,
and for production and service departments.
The R&S®RTB 2 series is the perfect solution for anyone needing
precise and reliable measurements.
Power of ten of the R&S®RTB 2 series oscilloscopes:
▶ 10-bit ADC
▶ 10 Mpoints memory
▶ 10.1" capacitive touchscreen
▶ 10 s boot time
▶ 10-in-1 instruments
Base unit of The R&S®RTB 2 series oscilloscopes
| Input channels | R&S®RTB22 | 2 channels |
| R&S®RTB24 | 4 channels |
| Input impedance | R&S®RTB22, R&S®RTB24 | 1 MΩ ± 2 % with 9 pF ± 2 pF (meas.) |
| Analog bandwidth (–3 dB) | R&S®RTB22 and R&S®RTB24 | > 70 MHz |
R&S®RTB22 with -B221 option and
R&S®RTB24 with -B241 option | > 100 MHz |
R&S®RTB22 with -B222 option and
R&S®RTB24 with -B242 option | > 200 MHz |
R&S®RTB22 with -B223 option and
R&S®RTB24 with -B243 option | > 300 MHz |
| Lower frequency limit (–3 dB) | at AC coupling | < 2 Hz (meas.) |
Analog bandwidth limits
(max. –1.8 dB, min. –3.5 dB) | R&S®RTB22 and R&S®RTB24 | 20 MHz |
| Rise time (10 % to 90 %, calculated) | R&S®RTB22 and R&S®RTB24 | < 5 ns |
R&S®RTB22 with -B221 option and
R&S®RTB24 with -B241 option | < 3.5 ns |
R&S®RTB22 with -B222 option and
R&S®RTB24 with -B242 option | < 1.75 ns |
R&S®RTB22 with -B223 option and
R&S®RTB24 with -B243 option | < 1.15 ns |
| Vertical resolution |
| 10 bit, up to 16 bit with high-resolution
decimation mode |
| Invert signal |
| yes |
| DC gain accuracy | offset and position = 0,
maximum operating temperature change of ±5 °C after self-alignment |
| input sensitivity > 5 mV/div | ±1.5 % of full scale |
| input sensitivity ≤ 5 mV/div | ±2 % of full scale |
| Offset accuracy |
| ±(0.5 % × |offset| +
0.1 div × input sensitivity + 1 mV) |
| DC measurement accuracy | after adequate suppression of
measurement noise by using highresolution sampling mode or waveform
averaging | ±(DC gain accuracy + offset accuracy) |
| Input coupling |
| DC, AC (> 7 Hz) |
| Input sensitivity |
| 1 mV/div to 5 V/div |
| Maximum input voltage |
| 300 V (RMS), max. 400 V (Vp), derates at
20 dB/decade to 5 V (RMS) above
250 kHz |
| Position range |
| 1 mV/div to 5 V/div |
| Offset range 1 | input sensitivity |
| 200 mV/div to ≤ 5 V/div | ±(40 V – position × input sensitivity) |
| 1 mV/div to < 200 mV/div | ±(1.2 V – position × input sensitivity) |
Channel-to-channel isolation
(each channel at same input sensitivity) | input frequency < analog bandwidth | > 50 dB |
