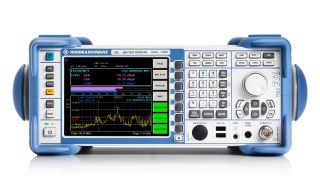

R&S®ESL 6 EMI test receiver for compliance testing

The R&S®ESL EMI test receiver combines two instruments to not only measure EMC interference according to relevant standards, but can also be used as a full-featured spectrum analyzer for a wide range of laboratory applications. The receiver combines excellent RF characteristics and all important functions to quickly and accurately measure and evaluate the EMC of the equipment under test according to commercial standards, making it unique in its class. The R&S®ESL features a wide range of analytical capabilities, fast measurement speeds, and time-saving automated test sequences, making it ideal for any development lab with a small budget that needs to perform EMC certification testing.

Excellent RF characteristics ensure accurate and repeatable measurements

• 0.5dB amplitude accuracy
• 1dB compression point: +5dBm
• Rf input pulse resistance up to 10mWs
• Display average noise level with preamplifier:<-152 dBm (1 Hz)
• Resolution bandwidth :10 Hz to 10 MHZ (-3 dB), 200 Hz, 9 kHz, 120 kHz (-6 dB), 1MHz(pulse)

Excellent cost performance

• ​Two test instruments are integrated into one: an EMI test receiver and a spectrum analyzer
• Low investment cost
• Best in class RF characteristics for specific instruments
• Provides rich measurement and evaluation functions
• Options are plug-and-play, reducing costs

List of Options
