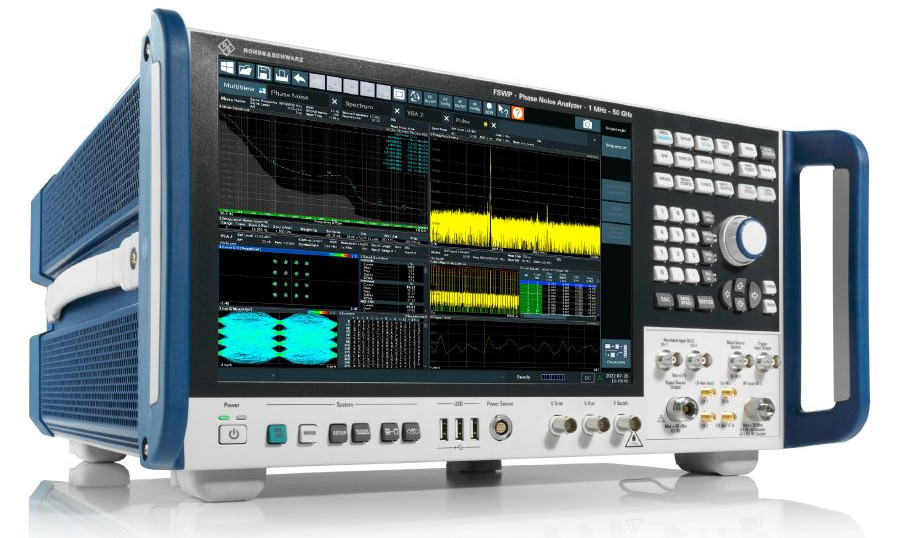

Rohde and Schwarz FSW26P Phase noise analyzer and VCO tester 1MHz
to 26.5 GHz
Description of FSWP26 Phase noise analyzer and VCO tester
The R&S®FSWP phase noise analyzer and VCO tester is very
sensitive thanks to extremely low-noise internal sources and
cross-correlation. It can measure phase noise and amplitude noise
in mere seconds on highly stable sources such as those in radar
applications. Additional options such as pulsed signal
measurements, residual phase noise (including pulsed)
characterization and integrated high‑end signal and spectrum
analysis make the R&S®FSWP a unique test instrument.
Thanks to its fully digital signal processing, the R&S FSWP
performs complex measurements at the push of a button and features
intuitive touchscreen operation. It can quickly and easily measure
the phase noise of pulsed sources as well as residual phase noise
under pulsed conditions. The R&S FSWP is therefore ideal for
both aerospace and defense and automotive applications, e.g. for
manufacturers of radar components and synthesizers. Thanks to its
additional voltage sources, the R&S FSWP is also ideal for
measuring VCOs ? in research and development and, thanks to its
high measurement speed, also in production.
The R&S FSWP8 and R&S FSWP26 models for the 8 and 26 GHz
frequency ranges will be available from Rohde & Schwarz in
September 2015; the R&S FSWP50 model for up to 50 GHz at the
end of 2015.
Features of FSWP26 Phase noise analyzer and VCO tester
- Frequency range from 1 MHz up to 50 GHz, 325 GHz with external
mixers
- High end signal and spectrum analyzer and phase noise tester in one
box
- SCPI recorder to simplify code generation
- Internal source for measuring residual phase noise on pulsed
signals
- Cross correlation for very sensitivity of high amplitude and phase
noise measurement in parallel, even on pulsed signals
The R&S FSWP can be upgraded to a signal and spectrum analyzer.
Rohde & Schwarz is still the only manufacturer to offer the
combination of both measurement solutions in a single device, like
its predecessor model, the R&S FSUP.
List of Options of FSWP26
B1 | Signal and spectrum analyzer 10Hz-26GHz. |
B10 | External Generator Control |
B13 | High pass filter |
B18 | Solid state drive, 64GB |
B21 | LO/IF Connections for external mixers |
B24 | RF Preamplifier, 20dB 100kHz-26GHz |
B25 | Electronic Attenuator |
B4 | High stability OCXO |
B60 | Cross correlation for phase noise analyzer |
B61 | Cross-Correlation (low phase noise) |
B64 | Signal source for additive phase noise measurement, 10MHz-18 GHz |
B8 | Additional resolution bandwidths >10MHz, 20MHz & 50MHz |
B80 | 80 MHz Analysis Bandwidth |
B320 | 320 MHz Analysis Bandwidth |
K30 | Noise figure measurement |
K33 | Security Write Protection of solid state drive |
K4 | Pulsed Phase Noise Measurements |
K40 | Noise Figure Measurements |
K6 | Pulse Measurement Application |
K6S | Time Sidelobe Measurements |
K7 | Analog Modulation Analysis for AM/FM/fM |
K70 | Vector Signal Analysis |
K91 | WLAN 802.11A,B,G,J/K91AC-WLAN 802.11AC/K91NWLAN 802.11N |
