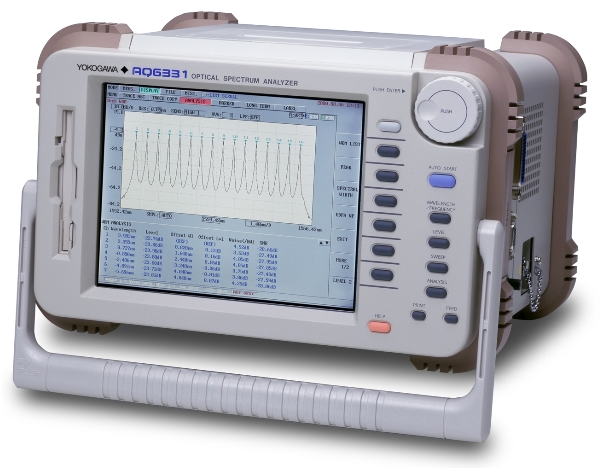

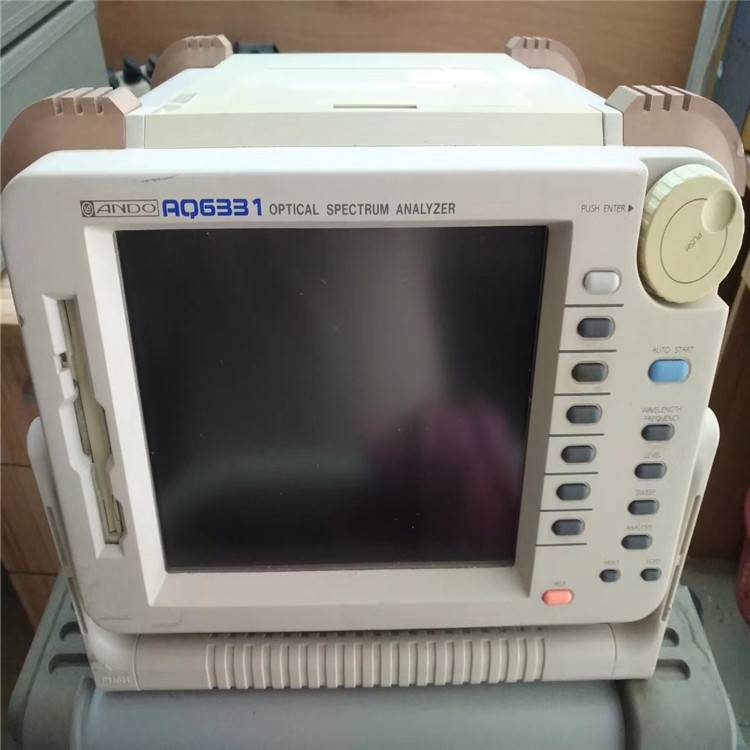

| Applicable fiber | Single mode fiber (10/125 µm) |
| Applicable Connector | FC-PC (Standard) |
| Wavelength range | 1200 to 1700 nm |
| Wavelength accuracy | ±0.02 nm (1520 to 1580 nm), < ±0.05 nm (1580 to 1620 nm), ±0.3
nm (1200 to 1700 nm) |
| Wavelength linearity | ±0.01 nm (1520 to 1580 nm), < ±0.02 nm (1580 to 1620 nm) |
| Wavelength reproducibility | ±0.005 nm (1 min.) |
| Wavelength resolution | 0.05 nm (Resolution setting: 0.05 nm, 1520 to 1620 nm) 0.1 nm
(Resolution setting: 0.1 nm, 1520 to 1620 nm) Resolution setting:
0.05, 0.1, 0.2, 0.5, 1.0 nm Resolution accuracy: < ±5%
(Resolution setting: ≤ 0.2 nm) |
| Measurement level range | -90 to +20 dBm (1200 to 1600 nm, sensitivity: HIGH3) -80 to +20 dBm
(1600 to 1700 nm, sensitivity: HIGH3) |
| Level accuracy | ±0.3 dB typ. (1550 nm, 1600 nm) |
| Polarization dependency | ±0.05 dB (1550 nm, 1600 nm) |
| Level linearity | ±0.05 dB (Input power: 0 to -50 dBm, sensitivity: HIGH 1 to 3 |
| Level flatness | ±0.1 dB (1520 to 1580 nm) ±0.2 dB (1520 to 1620 nm) |
| Level reproducibilit | ±0.02 dB (1550 nm, 1600 nm) |
| Dynamic range | 55 dB (1523 nm, peak ±0.4 nm, 0.05 nm resolution) 40 dB (1523 nm,
peak ±0.2 nm, 0.05 nm resolution) |
| Return loss | 30 dB typ. (Optical input, 1550 nm, 1600 nm) |
| Sweep time | Approx. 0.5 sec. (Span: 50 nm, sensitivity: NORMAL HOLD, number of
sampling: AUTO, average: 1 |
| Functions | |
| Measurement condition | Auto-configuration, span, sensitivity (NORMAL HOLD/AUTO, HIGH
1/2/3), averageing, number of sampling (11 to 20001, AUTO), sweep
between markers, 0-nm sweep, pulse light measurement |
| Trace display | 3 individual Traces (Max/Min, rolling avarage, data calculation),
frequency/wavelength axis |
| Data analysis | WDM, EDFA, PMD, SMSR, search (Peak, Bottom), spectral width,
notch-width, delta-marker, line marker |
| Others | Program, long-term measurement, wavelength self-calibration |
| Memories | FDD (3.5-inch 2HD), Internal memory (2MB) |
| Data output | Built-in high-speed printer |
| Interfaces | GP-IB, RS-232C, Keyboard (IBM compatible), Mouse (PS/2), Video
(SVGA), Printer (Centronics), PCMCIA (1 x Type 3 or 2 x Type 2) |
| Display | 8.4-inch color LCD (800 x 600 dots) |
| Power requirements | AC100 to 120 V, AC200 to 240 V, 48 to 63 Hz, approx. 100 VA |
| Environmental conditions | Operating temperature: 0 to 50°C Storage temperature: -20 to 60°C
Humidity: 90% or less (no condensation) |
| Dimensions and mass | Approx. 315(W) x 200(H) x 255(D) mm, approx. 10 kg |
