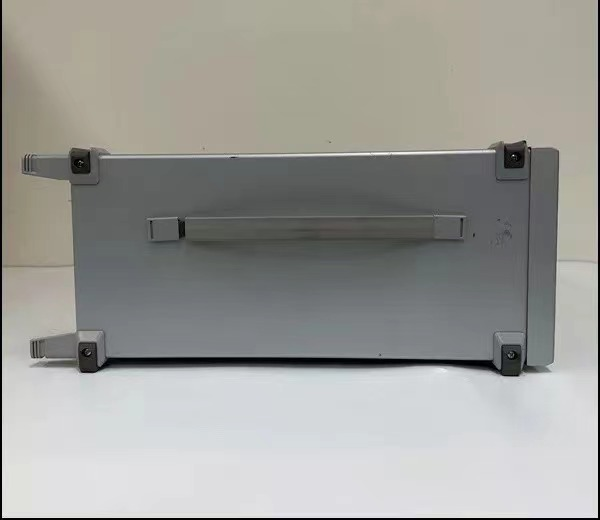

Anritsu MT8870A Universal Wireless Test Set
Description of MT8879A
Timely support for the latest wireless technology (5G Sub-6 GHz/
802.11ax/be and more)
The Universal Wireless Test Set MT8870A supports various wireless
communications standards, including 5G NR Sub-6 GHz,
LTE/LTE-Advanced, LTE-V2X, NB-IoT, Cat-M, V2X 802.11p, WLAN and
Bluetooth for testing on mass-production lines for smartphones,
automotive and IoT terminals and communications modules. Three
types of MU887000A/MU887001A/MU887002A TRx test modules can be
installed in the MT8870A main unit, each having a built-in vector
signal generator and vector signal analyzer for Tx and Rx tests of
mobile terminals and communications modules.
The MT8870A can accommodate up to 4 test modules, each of which can
be used as a separate measuring instrument for fully independent
measurements. Since the test modules share the power supply,
mainframe, internal bus interface, etc., the total equipment
investment can be reduced by installing multiple test modules on a
single mainframe. Four terminal devices can be measured
simultaneously, and up to 12 antenna ports can be directly
connected to each module.
By installing four test modules, the MT8870A can connect four
devices under test simultaneously and perform parallel
measurements. The diversification of wireless communication methods
has led to an increase in the number of antenna terminals used by
wireless communication devices. The new MU887002A can connect up to
12 device antennas in one module, simplifying the test environment.
- Four Testers in One Platform
- Up to four measurement modules can be installed in one main frame
and each module can be controlled independently. Each module shares
the same power supply, chassis, and internal bus interface, helping
cut infrastructure costs.
- Simultaneous Measurement of Four Devices with Direct Connection of
up to 12 Device Antennas
- Installing four test units in the MT8870A main unit supports
simultaneous parallel measurement of up to four connected devices
under test. Since the number of antennas in wireless communications
devices is increasing to facilitate more wireless communication
methods, each installed MU887002A test unit supports connection of
up to 12 antennas to greatly simplify the test setup.
Feature:
- The MT8870A accommodates up to four TRX test modules in one main chassis for efficient
calibration/ verification and high productivity on busy production lines.
- To support the NR Sub-6 GHz, WLAN 802.11ax and 11be, wireless
communications standards requiring bandwidths of more than 100 MHz,
the analysis bandwidth of the signal analyzer (SA) and modulation
bandwidth of the signal generator (SG) in the MU887000A/01A is 160
MHz as standard
- The signal generator and signal analyzer in the MU887000A/01A have
an upper frequency limit of 3.8 GHz as standard, but this can be
extended to 6 GHz as an option.
- One MU88700xA supports multiple wireless communication standards.
Option
- MT8870A Universal Wireless Test Set 1
- MT8870A-001 GPIB Control 1
- MU887001A TRX Test Module 1
- MX887090A Multi-DUT Measurement Scheduler 1
- MX887010A Cellular Standards Sequence Measurement 1
- MX887011A W-CDMA/HSPA Uplink TX Measurement 1
- MX887012A GSM/EDGE Uplink TX Measurement 1
- MX887013A LTE FDD Uplink TX Measurement 1
-MX887014A LTE TDD Uplink TX Measurement 1
- MX887015A CDMA2000 Reverse Link TX Measurement 1
- MX887016A 1xEV-DO Reverse Link TX Measurement 1
- MX887017A TD-SCDMA Uplink TX Measurement 1
- MV887011A W-CDMA/HSPA Downlink Waveforms 1
- MV887012A GSM/EDGE Downlink Waveforms 1
- MV887013A LTE FDD Downlink Waveforms 1
- MV887014A LTE TDD Downlink Waveforms 1
- MV887015A CDMA2000 Forward Link Waveforms 1
-MV887015A CDMA2000 Forward Link Waveforms 1
- MV887016A 1xEV-DO Forward Link Waveforms 1
- Z1703A Upgrade Kit 2
- MV887017A TD-SCDMA Downlink Waveforms 1
- MX887060A IEEE 802.15.4 TX Measurement 1
- MV887060A IEEE 802.15.4 Waveforms 1
